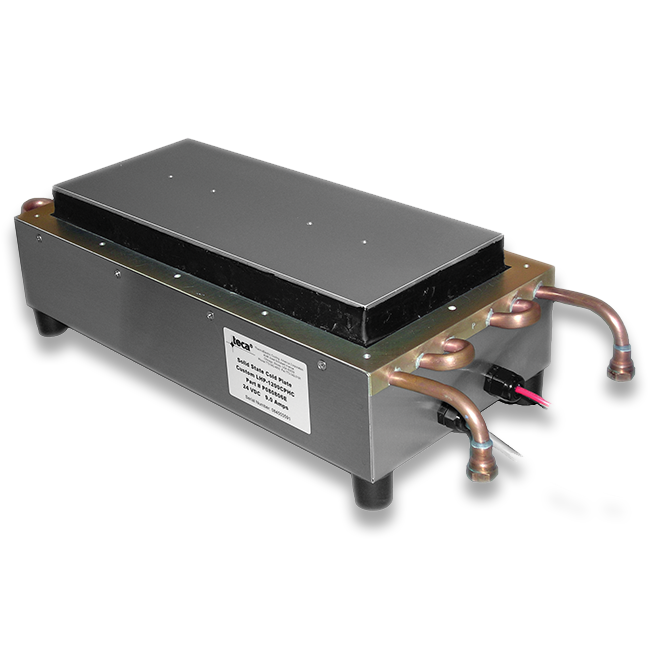

LHP-1200CP Series

Liquid Cooled Thermoelectric Cold Plate


  • Style: Bench Top
    Voltage: 24 VDC
    Current: 9 AMPS
    Operating Ambient: 0/+70 °C

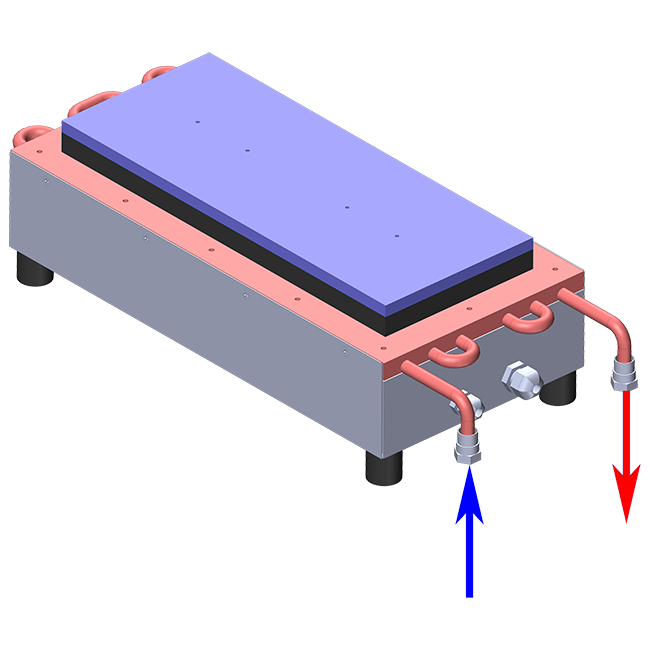

    Minimum Flow: 0.3 GPM

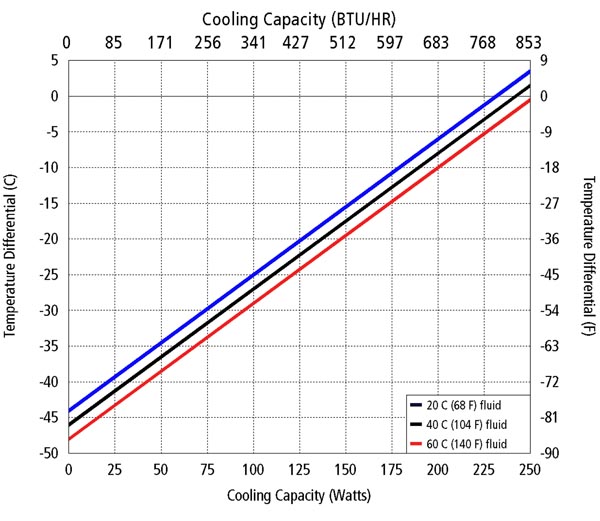

    Performance Rating:
    Cooling Capacity: 240 WATTS
    Cooling COP: 1.1
    Heating Capacity: 216 WATTS

    Includes:

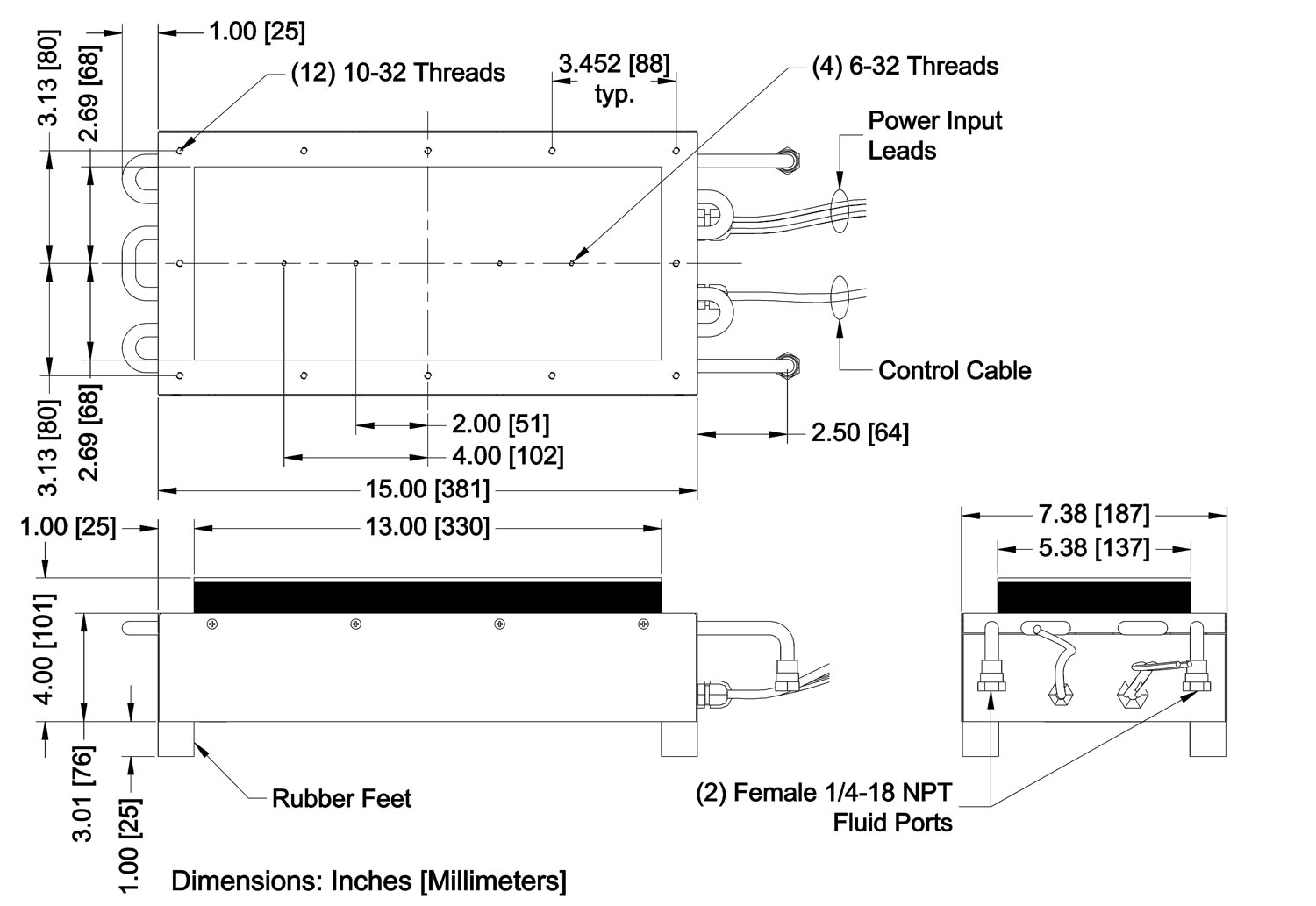

    • Female 1/4-18 NPT fittings
    • Power input leads
    • Through bentch top or wall mount
    • Copper fluid path (stainless steel optional)

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE
    VDC
    CURRENT
    AMPS
    LHP-1200CP3-3095-0-000
    Cool onlyNone249
    LHP-1200CP3-3055-0-000
    Cool only5-32 VDC external signal249
    LHP-1200CPHC3-3055-1-000
    Heat/Cool5-32 VDC external signal249
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Lhp 1200cp 9:47 am 09/01/20162.3M

    PDF
    Lhp 1200cp 9:47 am 09/01/2016123.5k

    SLDP
    Lhp 1200cp 9:47 am 09/01/2016321.9k

    STEP
    Lhp 1200cp 9:47 am 09/01/2016920.5k

    dwg
    Lhp 1200cp 9:47 am 09/01/2016502.7k
  • Part NumberDescriptionPicture/DrawingData Sheet
    TC-3400Temperature controller, PID typepdf
    Thermocouple-Ring"T" Type thermocouple
    6' long, surface mount
    RTD-RingThree wire RTD, 100 ? with connector
    6' long, surface mount
    RTD-ProbeThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe
    AS150-12Switching power supply
    150 Watts, 12 VDC
    pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC
    pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC
    pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC
    pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf

Features:
• No moving parts
• Weighs only 20 lbs. (9.1kg)
• Direct contact cooling as much as 48 ºC below liquid temperature
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Mounts in any orientation
