AHP-690CP

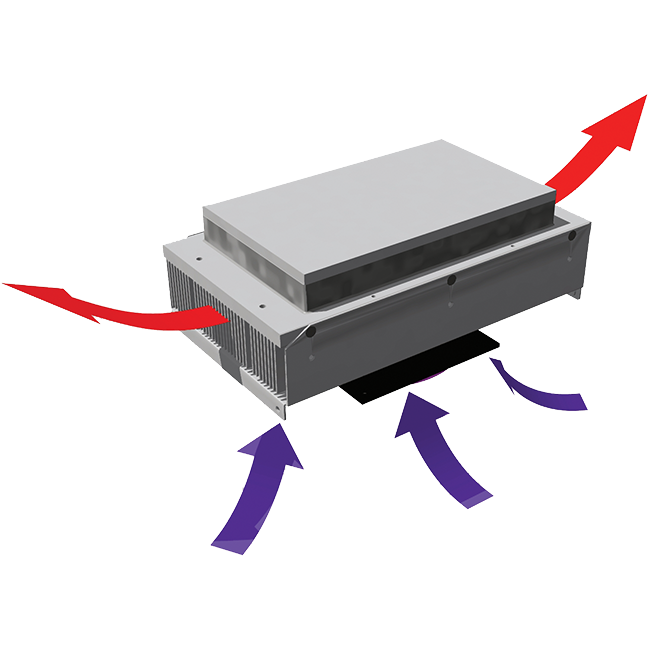

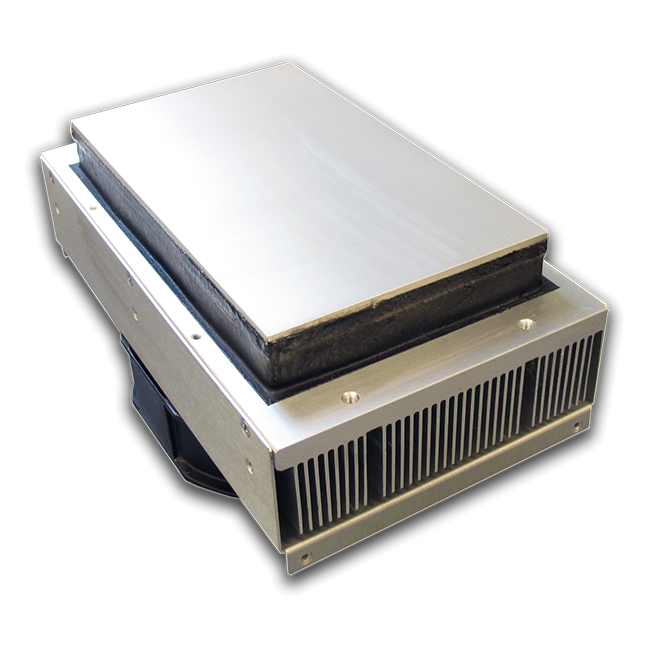

Compact Air Cooled Thermoelectric Cold Plate


  • Style: Bench Top
    Voltage: 24 VDC
    Current: 14 AMPS
    Operating Ambient: -15/+60 °C

    Performance Rating:

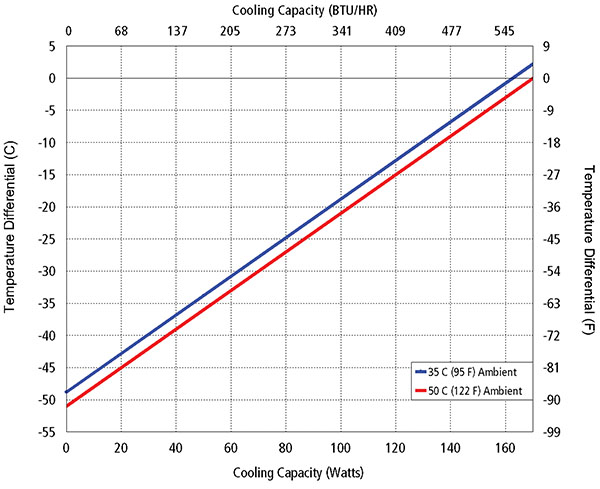

    Cooling Capacity: 145 WATTS
    Cooling COP: 1
    Heating Capacity: 145 WATTS

    Includes:
    • Mounting gasket
    • Mounting hardware
    • Power input leads

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESVOLTAGE
    VDC
    CURRENT
    AMPS
    AHP-690CPHC1-M095-1-000
    Heat/Cool2414
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Ahp 690cp 9:10 am 09/01/20164.9M

    PDF
    Ahp 690cp 9:10 am 09/01/2016367.2k

    SLDP
    Ahp 690cp 9:10 am 09/01/2016917.7k

    STEP
    Ahp 690cp 9:10 am 09/01/20162.8M

    dwg
    Ahp 690cp 9:10 am 09/01/2016397.5k
  • Part NumberDescriptionPicture/DrawingData Sheet
    TC-3400Temperature controller, PID typepdf
    Thermocouple-Ring"T" Type thermocouple
    6' long, surface mount
    RTD-RingThree wire RTD, 100 ? with connector
    6' long, surface mount
    RTD-ProbeThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe
    AS150-12Switching power supply
    150 Watts, 12 VDC
    pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC
    pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC
    pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC
    pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf

Features:

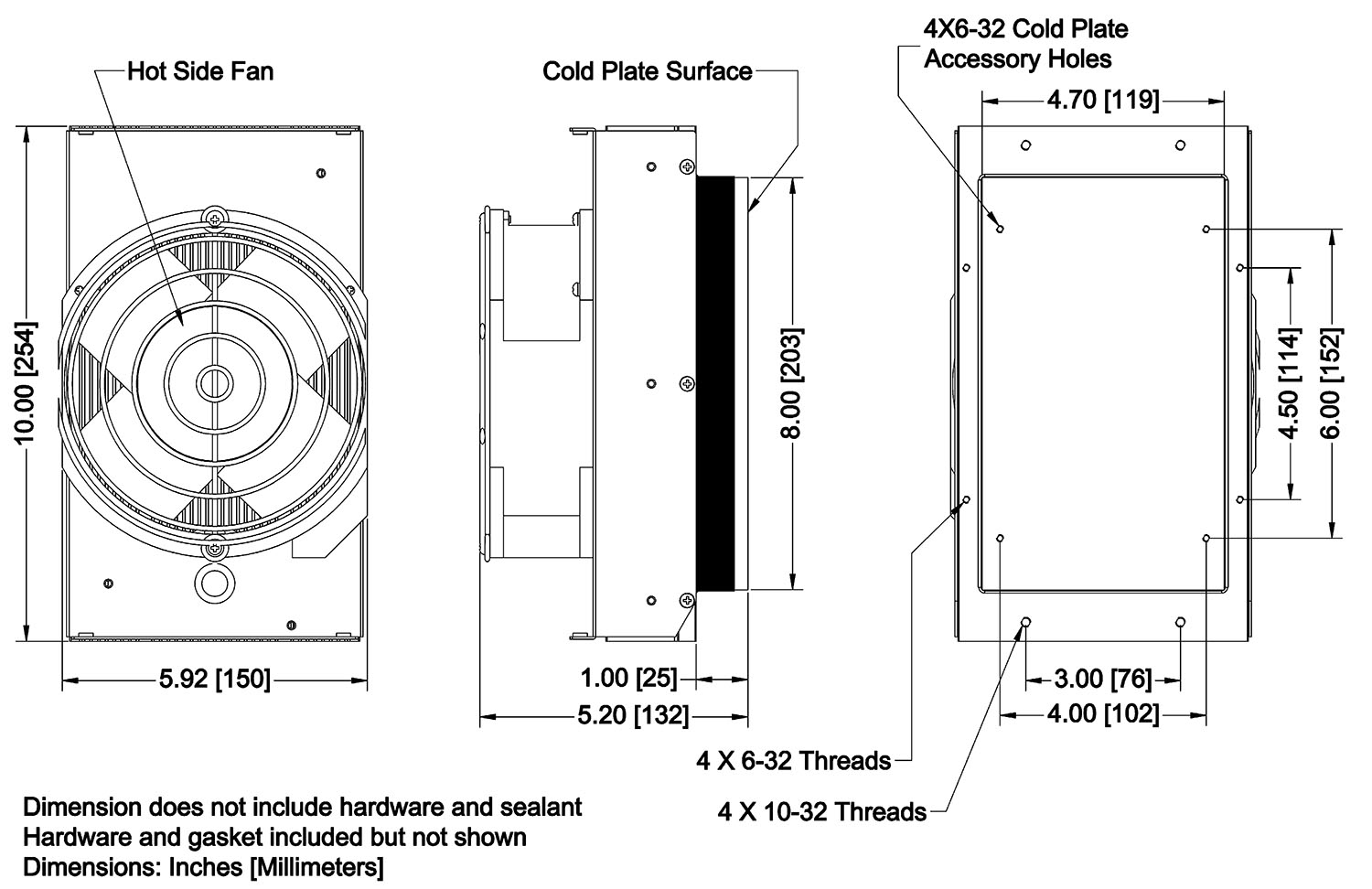

• Flat aluminum plate (8” x 4.70”) [203 x 119] • Standard 6-32X.25 UNC threads
• Compact (only 10” x 5.9” x 5.2”) [254 x 150 x 132] • Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fan
• Environmentally safe
• No compressor, fluorocarbons or filters
• Cools and heats via reverse polarity
• Virtually maintenance-free operation
• Pivot clean
• Weight 9 LBS. (4 KG)
