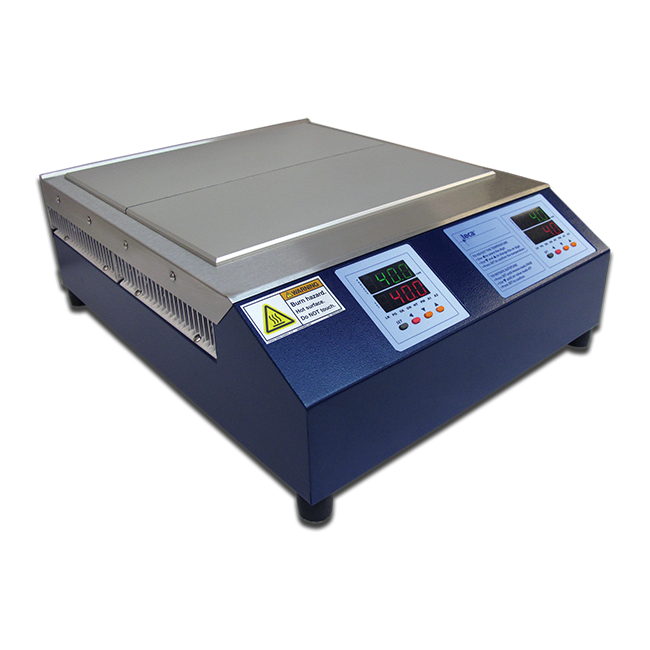

AHP-1200DCP

Dual Temperature Zone Thermoelectric Cold Plate For Laboratory


  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC
    Current: 5.0-2.5 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 230 WATTS (individual plate)
    Cooling Capacity: 230 WATTS (combined)

    Includes:
    • Integral Power Supply
    • Dual integral PWM temperature control
    • USB comms ports
    • Remote Sensibility

    Controller Features:
    • Two integral “tunable” temperature controllers
    • Pulse Width Modulating (PWM),bi-directional temperature control
    • Manually set or autotune PID values for best control
    • 4 Programmable temperature zones with 4 independent PID settings
    • Multi-segment ramp/soak programs with loops
    • Internal RTD sensor,built into each plate
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB communication with easy to use software
    • Labview VI examples available

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERCOLD PLATE SURFACEVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    AHP-1200DCP9-34KB-1-0A1
    Smooth surface100-2402.5-5.0
    AHP-1200DCP9-34KB-1-TA1
    6-32 Tap pattern100-2402.5-5.0
    AHP-1200DCP9-34KB-1-ME1
    M3 Tap pattern100-2402.5-5.0
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 1200DCP 8:46 am 09/01/201624.8M

    SLDP
    AHP 1200DCP 8:46 am 09/01/20163.5M

    STEP
    AHP 1200DCP 8:46 am 09/01/201611.9M

    pdf
    Ahp 1200dcp 8:46 am 09/01/20161.3M
  • Part NumberDescriptionFor use with cold plate seriesDrawing/PictureData Sheet
    GP-1200Pyrex Plate
    Material: Clear Borosilicate
    Size: 13.30" X 5.77" X 0.125"
    AHP-1200CPV, LHP-1200CPVpdf
    TT-1200Thermal Transfer Pad
    Size: 13.3" x 5.77" x 0.125"
    AHP-1200CPV
    C-1800Clear Cover
    Material: Clear Acrylic
    Size: 15" X 15" X 5"
    AHP-1800CPV
    AHP-1200DCP
    pdf
    CN-1800Clear Cover
    Material: Clear Acrylic
    Size: 15" X 15" X 5"
    AHP-1800CPV with ACP-1800pdf
    CH-1800Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 16"" X 5"
    AHP-1800CPV
    AHP-1200DCP
    dwgpdf
    CHN-1800Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 16"" X 5"
    AHP-1800CPV with ACP-1800dwgpdf
    BH-1800Barrier
    Material: Clear Acrylic
    Size: 14.2" X 13.7" X H (height)
    Part Number: BH-1800 (H = height in inches 3", 6", 9" standard)
    example B6-1200, B9-1200
    AHP-1800CPVpdf
    BH-1200DCPBarrier
    Material: Clear Acrylic
    Size: 14.2" X 13.7" X H (height)
    Part Number: BH-1800 (H = height in inches 3", 6", 9" standard)
    example B6-1200, B9-1200
    AHP-1200DCPdwgpdf
    Thermocouple-Ring"T" Type thermocouple
    6' long, surface mount
    LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
    RTD-RingThree wire RTD, 100 ? with connector
    6' long, surface mount
    LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
    TT-16X8Thermal Transfer Pad
    Size: 13.3" x 5.77" x 0.125"
    RTD-ProbeThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe
    LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP

Features:
• Cools and heats two plates independently (-10 °C to 90 °C)*
• Two precision machined aluminum plate surfaces
• Each plate is 13.3”[338 mm] x 6.3”[162 mm] • Easy to clean stainless steel apron
• Two integral PWM temperature controllers
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front

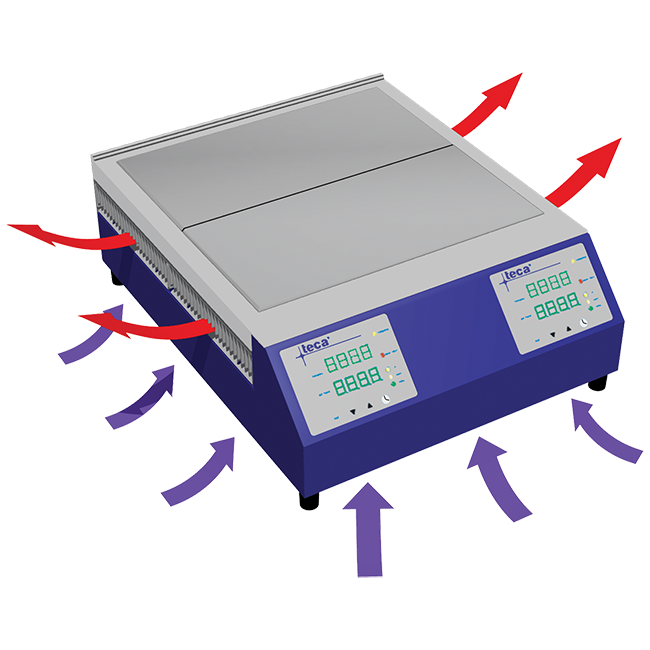

• PWM speed controlled fan for quieter operation
• Weighs less than 50 lbs.(22.7 kg)
• Operating ambient temperature range of (0 °C to 50 °C)
• Compact bench top unit,19.2”X 15.2”footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Accessory enclosures and barriers available
