AHP-2700CPV - thermoelectric

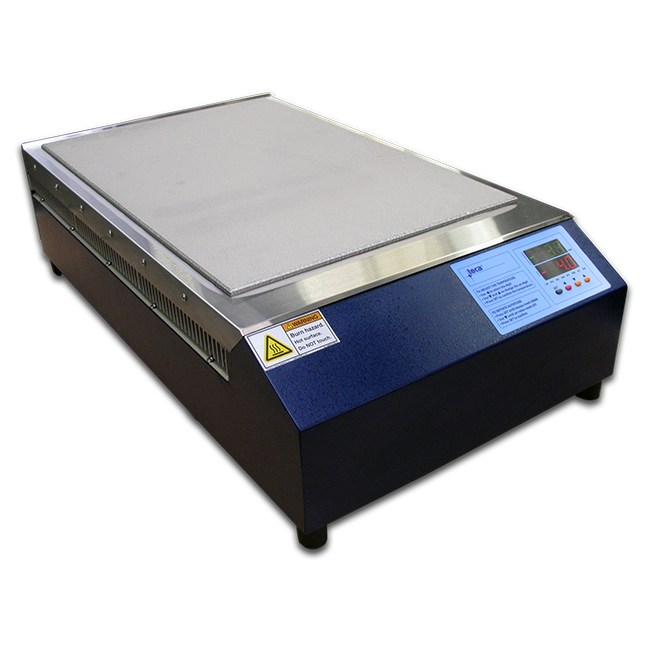

Air Cooled Thermoelectric Cold Plate For Laboratory

Style: Bench Top, Laboratory
Voltage: 100-240 VAC
Current: 14-6.5 AMPS
Operating Ambient: 0/+50 °C

Ahp 2700cpv Data Sheet (222.1k)

Performance Rating:
Cooling Capacity: 690 WATTS

Includes:
• Integral Power Supply
• Integral PWM temperature control
• USB comms ports
• Remote Sensibility

Controller Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• Manually set or autotune to set point for best PID values
• 4 Programmable temperature zones with 4 independent PID settings
• Multi-segment ramp/soak programs with loops
• Internal RTD sensor, built into the cold plate
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB communication with easy to use software
• Labview VI examples available

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	COLD PLATE SURFACE	VOLTAGE VAC (VDC)	CURRENT AMPS	COLD PLATE TEMP. RANGE °C
AHP-2700CPV	9-N5KB-1-0A0 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Smooth surface	100-240	14-6.5	-15 / +90
AHP-2700CPV	9-N5KB-1-TAP Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	6-32 Tap pattern	100-240	14-6.5	-15 / +90
AHP-2700CPV	9-N5KB-1-MET Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	M3 Tap pattern	100-240	14-6.5	-15 / +90

Click to open PDF performance curves:

Ahp 2700cpv Curve (117.9k)

Click to open files:

AHP 2700CPV Machine Safe Area (85.7k)
AHP 2700CPV Dims (206.3k)
CH 2700 (180k)

Ahp 2700cpv Data Sheet (222.1k)
Click to download:

Solid Model files:

Type File Name Date Modified Size

IGS AHP 2700CPV 8:56 am 09/01/2016 35M

PDF AHP 2700CPV 8:56 am 09/01/2016 2.5M

SLDP AHP 2700CPV 8:57 am 09/01/2016 5.9M

STEP AHP 2700CPV 8:57 am 09/01/2016 16.8M

Product Manuals, Software:

CH 2700 (180k)
Manual CPV 2nd GEN V02-7 (1.6M)
Manual TecaLOG Version 1-1D (668.3k)
Read This First (1k)
TecaLOG Software (34.6M)

Type	File Name	Date Modified	Size

IGS	AHP 2700CPV	8:56 am 09/01/2016	35M
PDF	AHP 2700CPV	8:56 am 09/01/2016	2.5M
SLDP	AHP 2700CPV	8:57 am 09/01/2016	5.9M
STEP	AHP 2700CPV	8:57 am 09/01/2016	16.8M

Part Number	Description	For use with cold plate series
ACP-2700	Accessory plate	AHP-2700CPV
C-2700	Clear Cover Material: Clear Acrylic Size: 23" X 15" X 5"	AHP-2700CPV
CN-2700	Clear Cover Material: Clear Acrylic Size: 23" X 15" X 5"	AHP-2700CPV with ACP-2700
CH-2700	Clear Cover With Hinge Material: Clear Acrylic Size: 24" X 16"" X 5"	AHP-2700CPV
CHN-2700	Clear Cover With Hinge Material: Clear Acrylic Size: 24" X 16"" X 5"	AHP-2700CPV with ACP-2700
Thermocouple-Ring	"T" Type thermocouple 6' long, surface mount	LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
RTD-Ring	Three wire RTD, 100 Ω with connector 6' long, surface mount	LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
RTD-Probe	Three wire RTD, 100 Ω with connector 6' long, 1/8" DIA probe	LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP

Features:
• Cools and heats (-20 °C to 90 °C)*
• Precision machined anodized aluminum cold plate surface (~ 1745 cm2 surface area, flat within +/- .005 cm)
• Stainless steel threaded inserts available (standard & custom patterns)
• Easy to clean stainless steel apron
• Integral PWM temperature controller
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs ~ 65 LBS.
• Operating ambient temperature range of (0 °C to 50 °C)
• Compact bench top unit, 26.5” X 15.2” footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Many accessories available
