AHP-301CPV

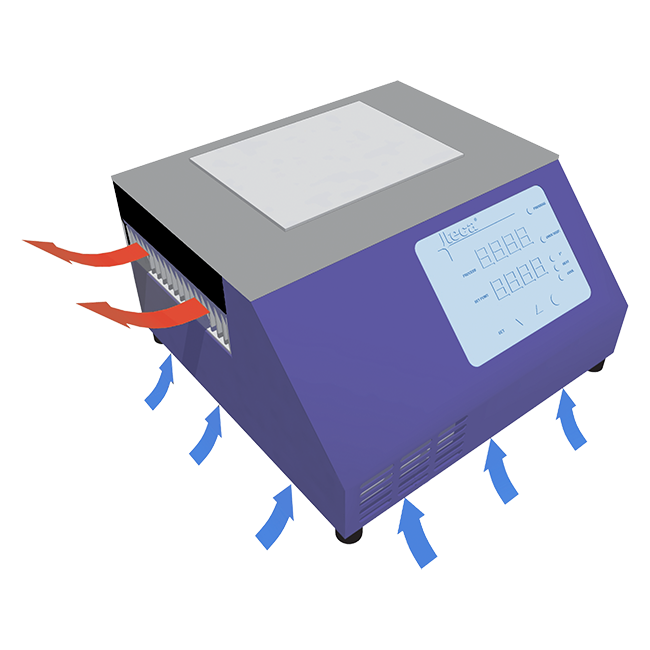

Air Cooled Thermoelectric Cold Plate For Laboratory


  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC, 24 VDC
    Current: 2.4-1 AMPS, 7 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 82 WATTS
    Cooling COP: 0.34
    Heating Capacity: 240 WATTS

    Includes:
    • Integral Power Supply
    • Integral PWM Temperature control
    • USB comms port
    • Remote Sensibility

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • 4 Temperature zone with 4 independent PID settings
    • Multi-segment ramp and soak programmable
    • Internal RTD sensor
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB Communication with easy to use software
    • Labview VI examples

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERCOLD PLATE SURFACEVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    COLD PLATE
    TEMP. RANGE °C
    AHP-301CPV9-70KB-1-0A0
    Smooth surface100-2402.4-1.0-15 / +90
    AHP-301CPV9-70KB-1-TAP
    6-32 Tap pattern100-2402.4-1.0-15 / +90
    AHP-301CPV9-70KB-1-MET
    M3 Tap pattern100-2402.4-1.0-15 / +90
    AHP-301CPV9-70K5-1-0A0
    Smooth surface(24)7-15 / +90
    AHP-301CPV9-70K5-1-TAP
    6-32 Tap pattern(24)7-15 / +90
    AHP-301CPV9-70K5-1-MET
    M3 Tap pattern(24)7-15 / +90
    AHP-301CPV9-70KB-6-0A0
    Smooth surface100-2402.4-1.0-15 / +120
    AHP-301CPV9-70KB-6-TAP
    6-32 Tap pattern100-2402.4-1.0-15 / +120
    AHP-301CPV9-70KB-6-MET
    M3 Tap pattern100-2402.4-1.0-15 / +120
    AHP-301CPV9-70K5-6-0A0
    Smooth surface(24)7-15 / +120
    AHP-301CPV9-70K5-6-TAP
    6-32 Tap pattern(24)7-15 / +120
    AHP-301CPV9-70K5-6-MET
    M3 Tap pattern(24)7-15 / +120
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 301CPV 2nd Gen 8:58 am 09/01/201634.7M

    PDF
    AHP 301CPV 2nd Gen 8:58 am 09/01/20161.4M

    STEP
    AHP 301CPV 2nd Gen 8:58 am 09/01/201616.3M

    sldp
    AHP 301CPV 2nd Gen 8:58 am 09/01/20165.8M
  • Part NumberDescriptionDrawing/PictureData Sheet
    ACP-301Accessory Plate
    Material: Clear anodized aluminum
    Size: 6.2" X 4.7" Surface
    dwgpdf
    GP-301Pyrex Plate
    Material: Clear Borosilicate
    Size: 6.00" X 4.50" X 0.125"
    pdf
    C-301Clear Cover
    Material: Clear Acrylic
    Size: 10" X 6.50" X 4"
    dwgpdf
    CN-301Clear Cover
    Material: Clear Acrylic
    Size: 10" X 6.50" X 4"
    dwgpdf
    CH-301Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 11" X 7.4" X 4"
    dwgpdf
    CHN-301Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 11" X 7.4" X 4"
    dwgpdf
    BH-301Barrier
    Material: Clear Acrylic
    Size: 6.8" X 5.3" X H (height)
    Part Number: BH-301 (H = height in inches 3", 6", 9" standard)
    example B6-1200, B9-1200
    dwgpdf
    ICE-3013 Liter Aluminum bead bath
    Electric ice bucket
    dwg
    TT-301Thermal Transfer Pad
    Size: 6" x 4.5"

Features:
• Cools and heats (-15 °C to 90 °C & 120 °C)
• Precision machined cold plate surface
• Stainless steel threaded inserts, available (standard & custom pattern)
• Easy clean stainless steel apron
• Integral PWM temperature controller
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• Variable fan speed for quieter operation
• Weighs less than 14 lbs. (6.4 kg)
• Operating ambient temperature range of 0 °C to 50 °C
• Compact bench top unit, 9.8” X 10.1” footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Many standard accessories
