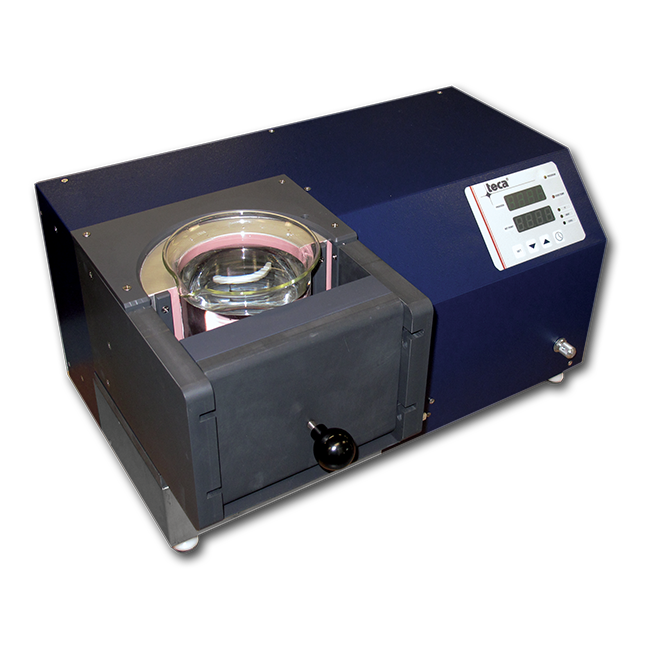

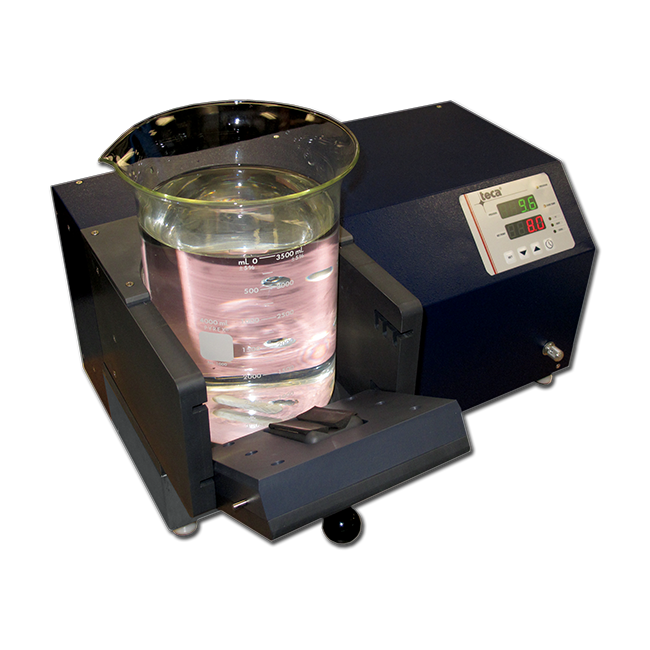

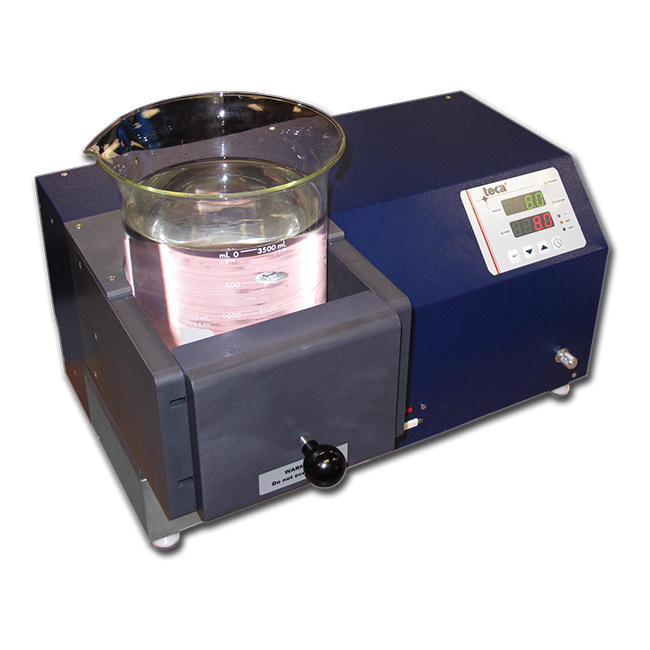

AHP-800MSP

Magnetic Stirring Cold/Hot Plate For Laboratory Use


  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC
    Current: 5.0-2.0 AMPS
    Operating Ambient: 0/+45 °C

    Optional Sleeves:

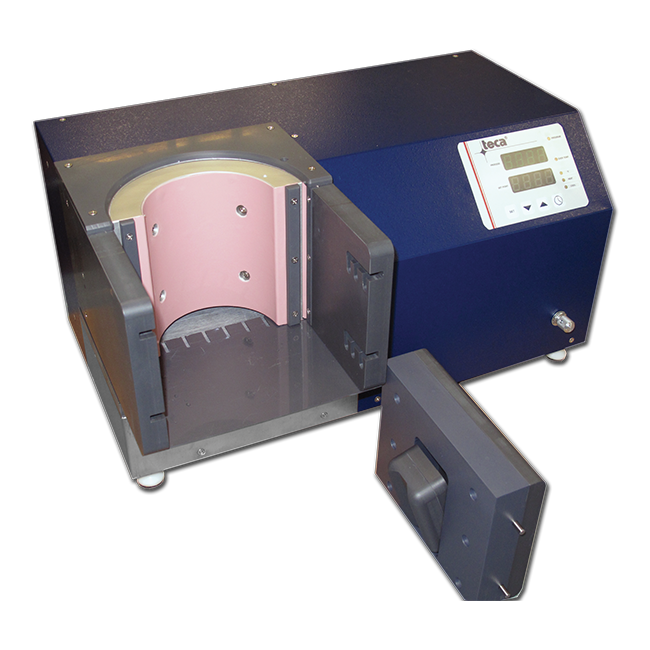

    The AHP-800MSP has optional sleeves that make it adaptable to different size
    bottles and beakers. Install different sleeves for different diameter vessels.

    Includes:
    • Integral PID “tunable” temperature control
    • One shot smart PID control tuning or Adaptive Smart Continuous Tuning
    • Internal RTD sensor
    • External RTD sensor included
    • Remote Sensibility™ switchable exterior RTD sensor
    • Multi-segment ramp and soak programs
    • RS-232 communications
    • i-tools software for easy programming and control tweaking
    • Standard software for charting and data acquisition
    • Stock bottle block for 4 liter beaker (6.25” diameter) Corning Pyrex® brand 1000 # S-34502-15

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • Manually set or autotune to set point for best PID values
    • 4 Programmable temperature zones with 4 independent PID settings
    • Multi-segment ramp/soak programs with loops
    • Internal RTD sensor, built into the cold plate
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB communication with easy to use software
    • Labview VI examples available

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    AHP-800MSP9-50EB-1-003
    100-2405.0-2.0
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 800MSP 9:11 am 09/01/201654.6M

    SLDP
    AHP 800MSP 9:11 am 09/01/20165.7M

    STEP
    AHP 800MSP 9:12 am 09/01/201627M

    pdf
    Ahp 800msp 9:11 am 09/01/20165.5M
  • Part NumberCorning Part Number
    Beaker
    Volume (Liters)Size (Inches)
    H x OD
    SLV-2000S-34502-1327 1/2 x 5 1/8
    SLV-1500S-34502-121.56 1/2 x 4 3/4
    SLV-1000S-34502-1116 1/4 x 4 1/4
    SLV-800S-34502-100.85 1/4 x 3 7/8
    SLV-600S-34502-90.64 7/8 x 3 1/2

Features:
• Heating and cooling
• Unique high-performance side mounting cold plate for added cooling and uniform temperatures
• Magnetic drive for stir bars from underneath the bottle
• Magnetic stir offers 5 speed settings
• Standard and custom sleeves
• Made for use with Corning Pyrex® brand 1000 mL. beakers or equivalent size beakers or bottles
• 100-240 VAC universal, Integral power supply
• North American Standard power input cord set
• Variable speed fan for reduced noise
• Weighs only 38 lbs. (17.3 kg)
• Compact bench-top design
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Painted stainless steel exterior housing
