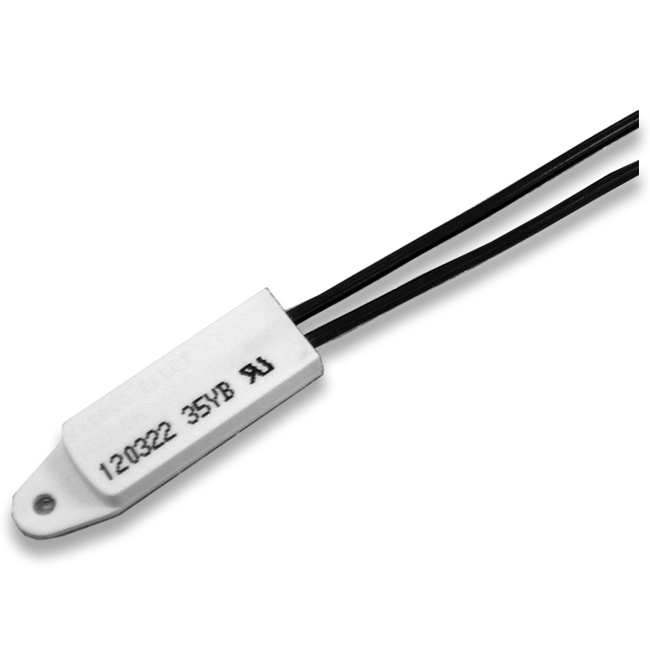

TC-1F

Power Temperature Switch


  • Description: Power Temperature Switch
    Operating Voltage: 120/240 VAC; 12/24 VDC
    Switching Current: 2/1.3 AMPS; 2/1.3 AMPS

    Overview:
    Model TC-1C and TC-1H power temperature controllers with its small tolerance and reset differential is the simplest and most cost effective way to control a cooling or heating device (VAC or VDC) without a need for a relay. For circuits that have higher current draw simply use them in conjunction with a solid state relay.

  • MODE PART NUMBER NOTE
    Cool TC-1C-XX switch closes on temperature rise
    Heat TC-1H-XX switch closes on temperature drop

    XX: Specify temperatures 20 °C, 25 °C, 30 °C, 35 °C for the cool mode and 5 °C, 10 °C, 15 °C for the heat mode
    Exapmles: TC-1C-20, TC-1H-10
