TC-7F

Thermostatic Temperature Control


  • Description: Heat/Cool thermostatic temperature controller with ECO-Mode (heat exchanger mode)
    Operating Voltage: 24 VDC
    Switching Current: 20 AMPS; (1.3 AMPS ECO-Mode)

    Overview:

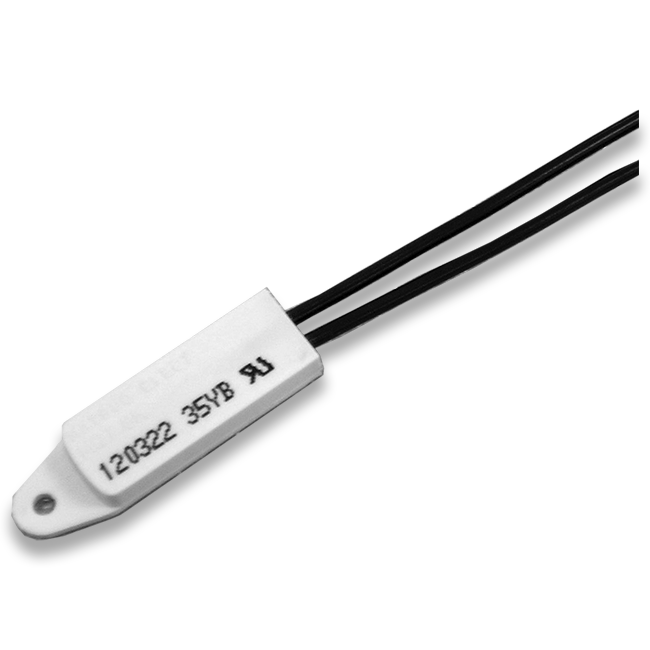

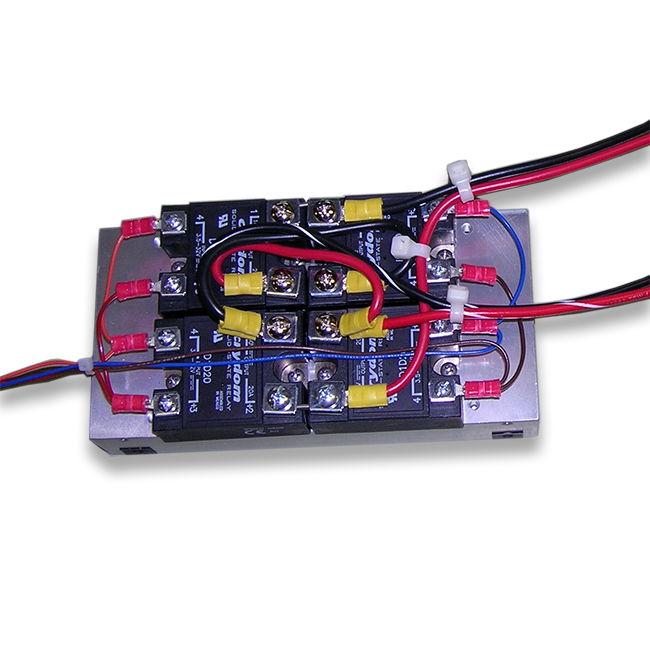

    Model TC-7F heat/cool thermostat is designed using three power temperature switches in conjunction with a solid state relay pack. It contains a single setting each for Eco-Mode (heat exchanger), active cool mode and heat mode.

  • Click on the part number to request a quote:
    MODEL NUMBERPART NUMBERECO-MODE
    TEMP. °C
    COOL MODE
    TEMP. °C
    HEAT MODE
    TEMP. °C
    REST TEMP.
    TYP. °C
    SWITCHING
    VOLTAGE VDC
    ECO-MODE
    CURRENT AMPS
    HEAT/COOL
    CURRENT AMPS
    TC-7F-DC7F-24G-00-000
    25 +/- 335 +/- 310 +/- 33241.30.02 - 20
