Bench Top Liquid Chillers

Bench Top Thermoelectric Liquid Chillers:

Bench top Recirculating Liquid Chillers are a compact and reliable solution for cooling and heating water and glycol/water solutions. Suitable for laboratory and portable applications, many accessories, options and custom modifications are available.

tlc-700 pic
TLC-700
Voltage: 120, 240 VAC
Capacity: 215 Watts
tlc-1200 pic
TLC-1200
Voltage: 24 VDC
Capacity: 215 Watts
tlc-900 pic
TLC-900
Voltage: 100-240 VAC
Capacity: 350 Watts
tlc-1400 pic
TLC-1400
Voltage: 120, 240 VAC
Capacity: 410 Watt
tlc-cube pic
TLC Cubes
Various voltage & capacities



TECA’s solid-state Recirculating Liquid Chillers for bench top use offer versatility, reliability and performance. Applications include quality control, sample heating and cooling, laboratory testing, laser cooling, manufacturing and more. Notably, the TLC-900 has been used in published research (see 50 Years of Innovation section on this website for details, 2012).

Versatility: Various input voltages are available for each model. Most models include an integral, programmable temperature controller. Heating is an available option on all models. Accessories are available including fittings and low-temperature cold plate attachments (cascades). The TLC Cube solid-state Cooling Cubes provide a thermoelectric cooling “engine” around which you can build your own system. The TLC-1200 offers two separate cooling circuits.

Reliability: The solid-state (Peltier) construction is the perfect low-maintenance solution. There are no filters to change and no moving parts except for the fans. Our Peltier coolers use robust thermoelectric modules and boast a long service life.

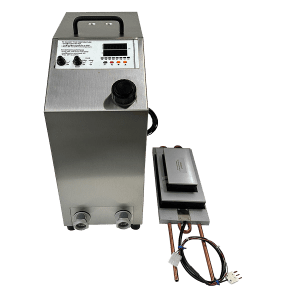

Performance: Low-temperature cold plate (cascade) attachments can reach temperatures as low as -50C. Multiple features including USB communications and data-logging software is included with the TLC-900 model.
