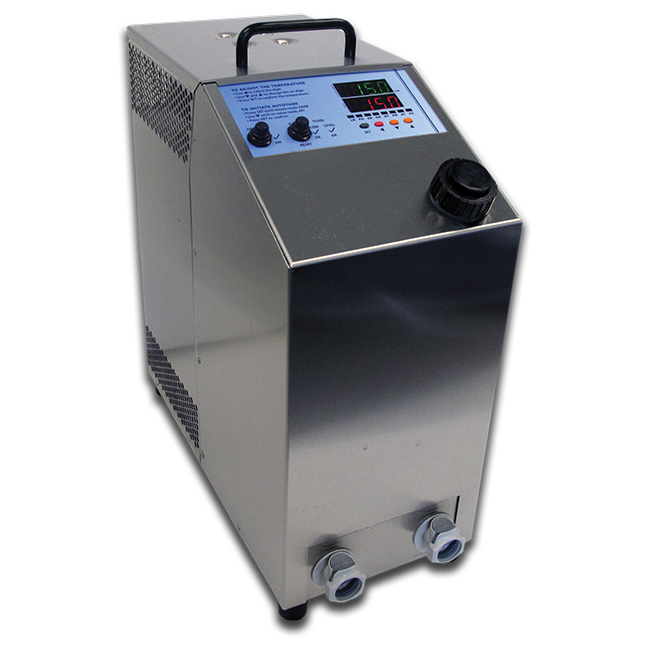

TLC-900

Air Cooled Thermoelectric Liquid Chiller


  • Style: Bench top recirculating liquid chiller
    Voltage: 100-240 VAC, 24 VDC
    Current: 4.8-2.0 AMPS, 22 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 350 WATTS
    Cooling Capacity: 310 WATTS (24 VDC)

    Includes:
    • Integral Power Supply
    • Integral PWM Temperature control
    • USB comms port
    • Remote Sensibility
    • Pump (4 pump options)
    • Reservoir

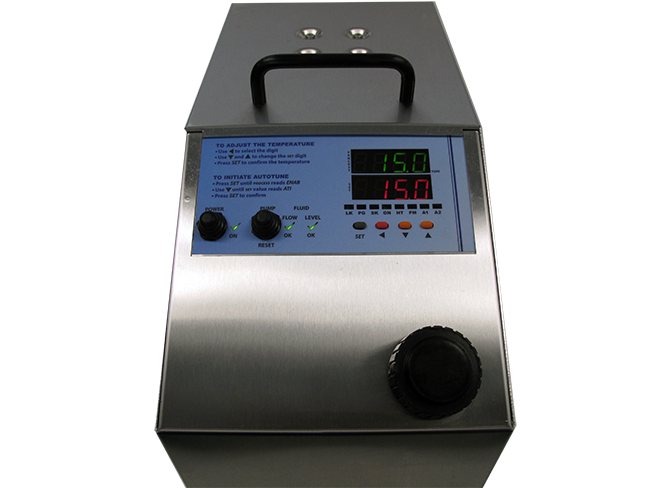

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • 4 Programable temperature zones with 4 independent PID settings
    • Multi-segment ramp and soak programs with loops
    • Internal RTD sensor, built into the fluid circuit
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB communication with easy to use software
    • Labview VI examples available

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERPUMP OPTIONVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    OPERATING AMBIENT
    MAX °C
    FLUID TEMPERATURE
    RANGE °C
    TLC-9006-E5KB-1-0A1
    1 (Mag drive, can pump)100-2404.8-2.0500 / +50
    TLC-9006-E5KB-1-0A2
    2 (Mag drive, impeller pump)100-2404.8-2.050-20 / +90
    TLC-9006-E5KB-1-0A3
    3 (Gear pump)100-2404.8-2.050-20 / +90
    TLC-9006-E5KB-1-0A4
    4 (Mag drive, can pump)100-2404.8-2.0500 / +50
    TLC-9006-E5K5-1-0A1
    1 (Mag drive, can pump)(24)22500 / +50
    TLC-9006-E5K5-1-0A2
    2 (Mag drive, impeller pump)(24)2250-20 / +90
    TLC-9006-E5K5-1-0A3
    3 (Gear pump)(24)2250-20 / +90
    TLC-9006-E5K5-1-0A4
    4 (Mag drive, can pump)(24)22500 / +50
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    TLC 900 10:25 am 09/01/2016114.5M

    SLDP
    TLC 900 10:26 am 09/01/201613.4M

    STEP
    TLC 900 10:27 am 09/01/201656.8M

    pdf
    TLC 900 10:26 am 09/01/201631.6M
  • Part NumberDescriptionDrawingData Sheet
    LCP-22Liquid cooled cascade
    plate surface: 8.8 x 4.5
    delta T: -58 C
    dwgpdf
    LCP-21Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -68 C
    dwgpdf
    LCP-31Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -76 C
    dwgpdf
    LCP-10-06Liquid cooled plate
    size: 6" x 5"
    dwgpdf
    LCP-10-12Liquid cooled plate
    size: 12" x 5"
    dwgpdf
    FC10-01Fan coil, heat exchanger
    single fan
    dwgpdf
    FC20-01Fan coil, heat exchanger
    dual fan
    dwgpdf
    QCM-F3/8NPTFitting: male quick connect x female 3/8 NPTpdf
    QCM-F1/4NPTFitting: male quick connect x female 1/4 NPTpdf
    QCM-M1/2NPTFitting: male quick connect x male 1/2 NPTpdf
    QCM-M3/8NPTFitting: male quick connect x male 3/8 NPTpdf
    QCM-3/8BFitting: Male quick connect x 3/8 barb
    pdf
    QCM-1/4BFitting: Male quick connect x 1/4 barbpdf
    QCM-3/16BFitting: Male quick connect x 3/16 barbpdf
    QCM-3/8BEFitting: Male quick connect x 3/8 barb elbowpdf
    QCHM-M1/2NPTFitting: High temperature male quick connect x 1/2 MNPT
    pdf
    QCHM-3/8BFitting: High temperature male quick connect x 3/8 barbpdf
    QCHM-1/2BFitting: High temperature male quick connect x 1/2 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    FBL-100Low profile filter body and bowlpdf
    FML-20Filter screen, 20 Mesh (915 Micron)pdf
    FML-40Filter screen, 40 Mesh (480 Micron)pdf
    FML-80Filter screen, 80 Mesh (178 Micron)pdf
    FML-100Filter screen, 100 Mesh (80 Micron)pdf
    FML-250Filter screen, 250 Mesh (40 Micron)pdf
    RTD-RINGThree wire RTD, 100 Ω with connector
    6' long, surface mount
    pdf
    RTD-PROBEThree wire RTD, 100 Ω with connector
    6' long, 1/8" DIA probe
    pdf
    HOSE-01Standard hose, 3/8" IDpdf
    HOSE-02High temperature hose, 3/8" IDpdf
    INS-01Single hose insulation, 5/8" ID 6' longpdf

Features:
• 90-265 VAC universal integrated power supply
• Heats and cools 0 to 50 °C or -20 to 90 °C
• 750 mL uncooled reservoir
• Low pressure drop 3/8 ID fluid quick connects
• PWM controlled fan for quieter operation
• User friendly front fill design
• Easy prime/pump reset feature
• Wide process fluid temperature range

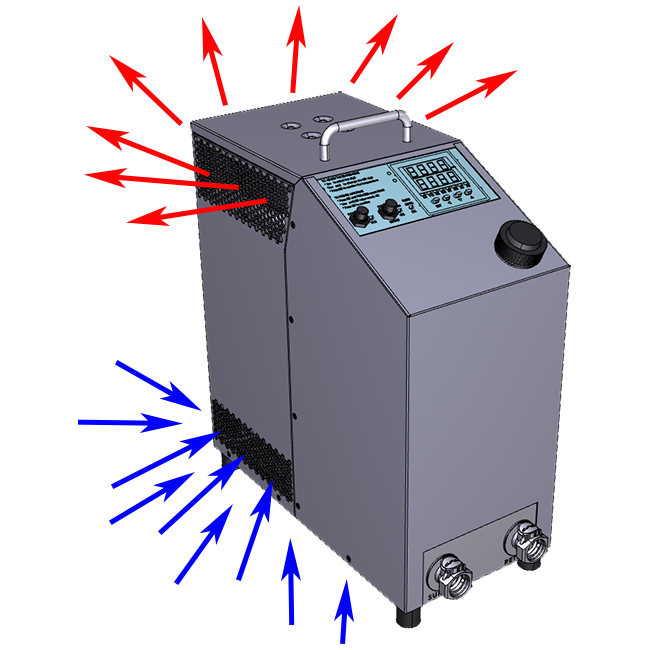

• Multiport bottom to top air flow for easier bench use
• Over temperature protection
• No compressor, fluorocarbons or filters
• Virtually maintenance free operation
