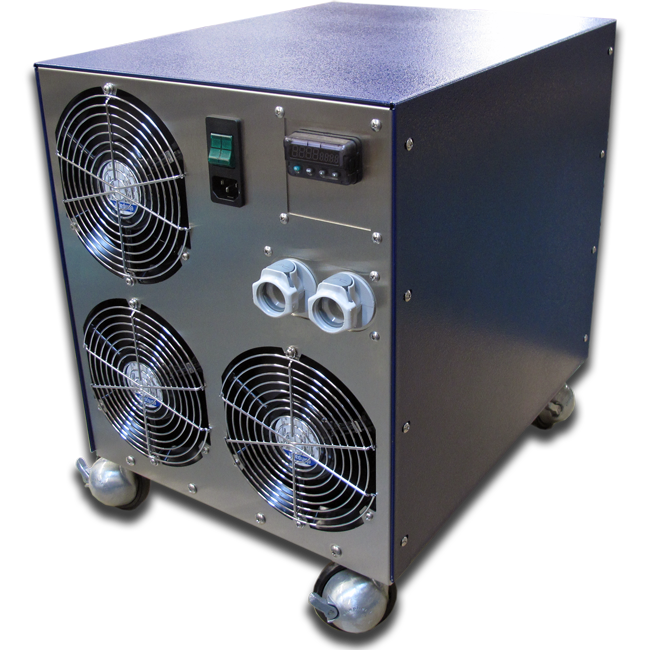

TFC-2700

Air Cooled Thermoelectric Liquid Chiller


  • Style: Wheeled Mobile Platform
    Voltage: 100-240 VAC`
    Current: 11-4.6 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 830 WATTS (through flow in-out)
    Cooling Capacity: 1000 WATTS (recirculating)

    Includes:
    • Integral power supply and temperature control
    • 3/8” ID Hose (12’)
    • Hose insulation (12’)
    • 3/8” CPC low pressure drop shut off fittings
    • North American power cord

    Options:
    • Basic communication with software
    • RS-485 Modbus communications
    • Quiet operation, fixed temperature, fan speed control
    • Exterior paint color

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTEVOLTAGE
    VAC (VDC)
    POWER
    WATTS
    OPERATING AMBIENT
    RANGE °C
    FLUID TEMPERATURE
    RANGE °C
    TFC-27006-N0GB-10A0
    None100-24011000 / +500 / +50
    TFC-27006-N0GB-1-0A1
    Dual speed fan
    (quiet operation)
    100-24011000/ +500 / +50
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    TFC 2700 10:10 am 09/01/201649.1M

    PDF
    TFC 2700 10:10 am 09/01/201618.4M

    SLDP
    TFC 2700 10:11 am 09/01/201615.1M

    STEP
    TFC 2700 10:12 am 09/01/201633.4M
  • Part NumberDescriptionDrawingData Sheet
    LCP-22Liquid cooled cascade
    plate surface: 8.8 x 4.5
    delta T: -58 C
    dwgpdf
    LCP-21Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -68 C
    dwgpdf
    LCP-31Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -76 C
    dwgpdf
    LCP-10-06Liquid cooled plate
    size: 6" x 5"
    dwgpdf
    LCP-10-12Liquid cooled plate
    size: 12" x 5"
    dwgpdf
    FC10-01Fan coil, heat exchanger
    single fan
    dwgpdf
    FC20-01Fan coil, heat exchanger
    dual fan
    dwgpdf
    QCM-F3/8NPTFitting: male quick connect x female 3/8 NPTpdf
    QCM-F1/4NPTFitting: male quick connect x female 1/4 NPTpdf
    QCM-M1/2NPTFitting: male quick connect x male 1/2 NPTpdf
    QCM-M3/8NPTFitting: male quick connect x male 3/8 NPTpdf
    QCM-3/8BFitting: Male quick connect x 3/8 barb
    pdf
    QCM-1/4BFitting: Male quick connect x 1/4 barbpdf
    QCM-3/16BFitting: Male quick connect x 3/16 barbpdf
    QCM-3/8BEFitting: Male quick connect x 3/8 barb elbowpdf
    QCHM-M1/2NPTFitting: High temperature male quick connect x 1/2 MNPT
    pdf
    QCHM-3/8BFitting: High temperature male quick connect x 3/8 barbpdf
    QCHM-1/2BFitting: High temperature male quick connect x 1/2 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    FBL-100Low profile filter body and bowlpdf
    FML-20Filter screen, 20 Mesh (915 Micron)pdf
    FML-40Filter screen, 40 Mesh (480 Micron)pdf
    FML-80Filter screen, 80 Mesh (178 Micron)pdf
    FML-100Filter screen, 100 Mesh (80 Micron)pdf
    FML-250Filter screen, 250 Mesh (40 Micron)pdf
    RTD-RINGThree wire RTD, 100 ? with connector
    6' long, surface mount
    pdf
    RTD-PROBEThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe
    pdf
    HOSE-01Standard hose, 3/8" IDpdf
    HOSE-02High temperature hose, 3/8" IDpdf
    INS-01Single hose insulation, 5/8" ID 6' longpdf

Features:
• Integral PID “tunable” temperature control
• No pump, no reservoir, insert directly into your flow
• Through flow temperature controlled cooling and heating
• Always cold/warm, never freeze/boil for intermittent flows
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Mobile platform on locking wheels
• Integral power supply for 100-240 VAC operation
• Painted stainless steel exterior
• Front to back air flow
• No Compressor, fluorocarbons or filters
• Virtually maintenance free operation
