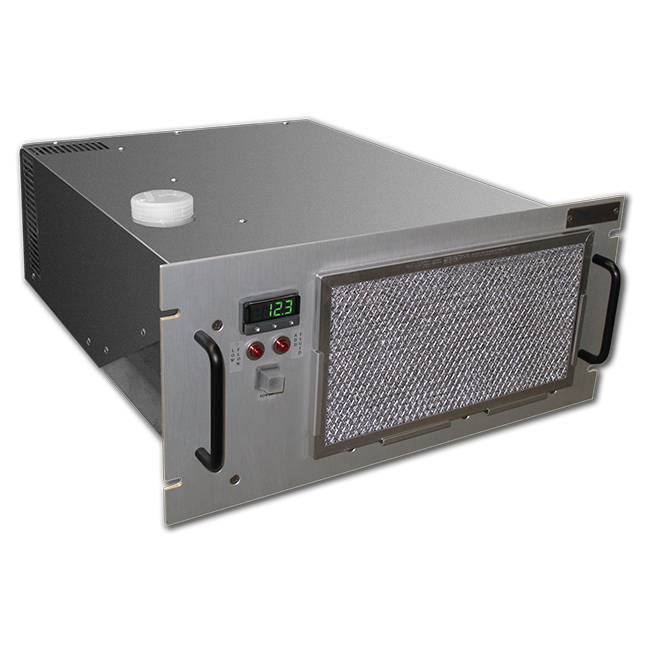

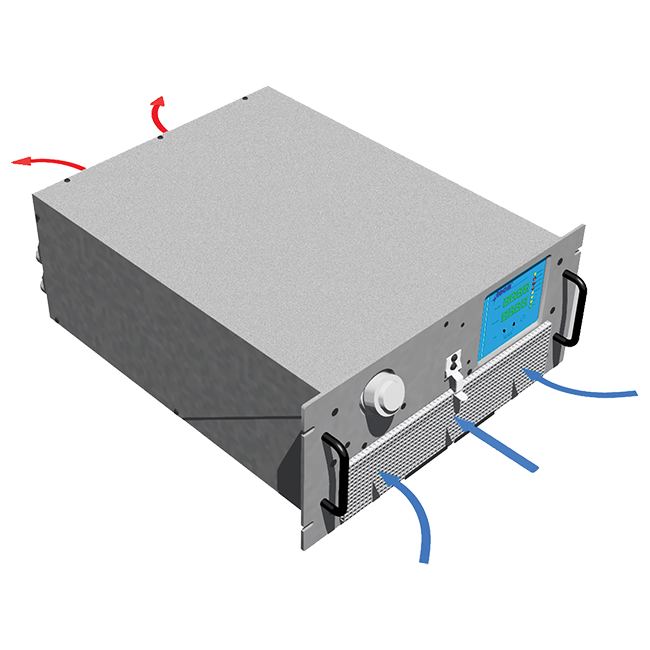

RLC-1400

Rack Mount Thermoelectric Liquid Chiller


  • Style: Rack mount recirculating liquid chiller
    Voltage: 120 VAC, 240 VAC
    Current: 7 AMPS, 4 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 410 WATTS

    Includes:
    • Integral power supply
    • Self priming pump/reservoir
    • TC-3400 temperature Control
    • Low pressure drop fluid quick connect
    • 3/8” ID Hose (12’)
    • Hose insulation (12’)

    Options:
    • Heating
    • RS-485 interface, RS-232 interface (with external adapter)
    • Computer communication software

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTEVOLTAGE
    VAC
    CURRENT
    AMPS
    OPERATING AMBIENT
    MAX °C
    FLUID TEMPERATURE
    RANGE °C
    RLC-14008-B0G0-0-000
    Cool only120750-5/ +65
    RLC-14008-B0G0-1-000
    Heat/Cool120750-5 / +65
    RLC-14008-B0G2-0-000
    Cool only240450-5 / +65
    RLC-14008-B0G2-1-000
    Heat/Cool240450-5 / +65
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Rlc 1400 10:01 am 09/01/201622.4M

    SLDP
    Rlc 1400 10:01 am 09/01/20163.7M

    STEP
    Rlc 1400 10:02 am 09/01/20168.9M

    dwg
    Rlc 1400 10:01 am 09/01/20161.1M

    pdf
    Rlc 1400 10:01 am 09/01/20162.6M
  • Part NumberDescriptionDrawingData Sheet
    LCP-22Liquid cooled cascade
    plate surface: 8.8 x 4.5
    delta T: -58 C
    dwgpdf
    LCP-21Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -68 C
    dwgpdf
    LCP-31Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -76 C
    dwgpdf
    LCP-10-06Liquid cooled plate
    size: 6" x 5"
    dwgpdf
    LCP-10-12Liquid cooled plate
    size: 12" x 5"
    dwgpdf
    FC10-01Fan coil, heat exchanger
    single fan
    dwgpdf
    FC20-01Fan coil, heat exchanger
    dual fan
    dwgpdf
    QCM-F3/8NPTFitting: male quick connect x female 3/8 NPTpdf
    QCM-F1/4NPTFitting: male quick connect x female 1/4 NPTpdf
    QCM-M1/2NPTFitting: male quick connect x male 1/2 NPTpdf
    QCM-M3/8NPTFitting: male quick connect x male 3/8 NPTpdf
    QCM-3/8BFitting: Male quick connect x 3/8 barb
    pdf
    QCM-1/4BFitting: Male quick connect x 1/4 barbpdf
    QCM-3/16BFitting: Male quick connect x 3/16 barbpdf
    QCM-3/8BEFitting: Male quick connect x 3/8 barb elbowpdf
    QCHM-M1/2NPTFitting: High temperature male quick connect x 1/2 MNPT
    pdf
    QCHM-3/8BFitting: High temperature male quick connect x 3/8 barbpdf
    QCHM-1/2BFitting: High temperature male quick connect x 1/2 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    FBL-100Low profile filter body and bowlpdf
    FML-20Filter screen, 20 Mesh (915 Micron)pdf
    FML-40Filter screen, 40 Mesh (480 Micron)pdf
    FML-80Filter screen, 80 Mesh (178 Micron)pdf
    FML-100Filter screen, 100 Mesh (80 Micron)pdf
    FML-250Filter screen, 250 Mesh (40 Micron)pdf
    RTD-RINGThree wire RTD, 100 ? with connector
    6' long, surface mount
    pdf
    RTD-PROBEThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe
    pdf
    HOSE-01Standard hose, 3/8" IDpdf
    HOSE-02High temperature hose, 3/8" IDpdf
    INS-01Single hose insulation, 5/8" ID 6' longpdf

Features:
• Compact only 19” x 25” x 10.5”
• Front and rear fluid ports
• Heats and cools 0 to 50 °C or -20 to 90 °C
• Standard 19” rack mounting
• Low pressure drop 3/8 ID fluid quick connects
• Remote SensibilityTM
• User friendly front fill design
• Easy prime/pump reset feature
• Wide process fluid temperature range
• Stainless steel exterior housing
• Over temperature protection
• External washable aluminum air filter
