Cooling a NEMA-4 Enclosure with Precision:

A flow testing facility required precise heating and cooling of a NEMA-4 enclosure in an outdoor application. The customer’s NEMA-4 instrument box houses very sensitive transducers and data acquisition equipment.

TECA Model AHP-1200XEHC paired with the TC-3400 remote temperature controller protects the enclosure’s contents from extreme temperatures in the ambient. The customer can monitor and set the controller without opening the NEMA-4 enclosure. Custom programming achieves exact set points as specified by the customer. The sealed, industrial grade external fan allows for wash down of the enclosure and exposure to the outdoor environment, all while maintaining a closed loop system.

Large LCD Screens:

Specializing primarily in the food and beverage processing industries, one of our longtime customers uses TECA air conditioners in several applications. These include cooling or heating LCD screens, desktop computers, thin clients, and KVM kiosks. The locations of these applications are indoors, outdoors, in cold rooms and baking areas.

TECA’s comprehensive line of air conditioners fit the bills. We offer each model in different configurations according to the customer’s need regarding input voltage, mounting and application environment.

Electronics Enclosure Cooling:

Customer plans to use the TEC unit to regulate the temperature of some electronics in an outdoor enclosure. The electronics will be mounted to a cold plate where they can be cooled by direct contact with the TEC. The walls of the enclosure will be insulated to reduce thermal losses to the outside world. The hot side of the TEC will be in a separate, ventilated part of the enclosure to carry away waste heat. Customer will provide longitudinal air flow along the heat sink, so the built-in fan will not be necessary.

Originally considered using a solid-state air conditioner to cool the entire enclosure, but now prefers the direct-contact method for lower cooling requirements and smaller size. The active load that needs to be cooled is about 50 W. It will consist of a number of RF components (amps, sources, etc) mounted to a common cold plate. Several passive components will also be mounted to the plate. The whole temperature-controlled assembly will be insulated by an inch or so of foam or something similar. The ambient temperature range is roughly 0 to 100 °F at the extremes.

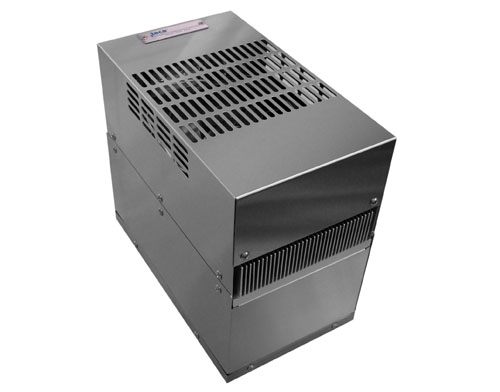

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 56 Watts (190 BTU/HR):

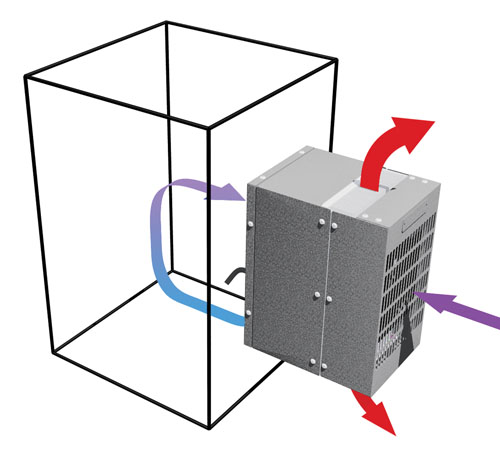

TECA’s FHP-401 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing AC input voltage and reliable thermoelectric cooling technology, FHP-401 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

Mounting Style: Flush Mounted
Voltage: 120 VAC, 240 VAC
Current: 1.2 AMPS, 0.65 AMPS
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12
Fhp 401 Data Sheet (135.2k)

Performance Rating:
Cooling (Traditional): 190 BTU/HR
Cooling (Din 3168): 56 WATTS
Cooling COP (at L35 L35): 0.38

Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Integral power input cord

Controller Features:
TC-1F: Active cool 35 °C
TC-3F: Active cool 35 °C; Active heat 15 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	VOLTAGE VAC	CURRENT AMPS
FHP-401	7-F090-0-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	None	120	1.2
FHP-401	7-F0F0-0-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	120	1.2
FHP-401	7-F050-0-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	120	1.2
FHP-401HC	7-F030-1-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-3F	120	1.2
FHP-402	7-F092-0-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	None	240	0.65
FHP-402	7-F0F2-0-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	240	0.65
FHP-402	7-F052-0-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	240	0.6
FHP-402HC	7-F032-1-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-3F	240	0.65

Click to open PDF performance curves:

FHP 401 Traditional Cool Mode (88.7k)
Fhp 401 DIN3168 Cool Mode (10.1k)

Click to open files:

FHP 400-500 Installation (132k)
FHP 401-451 Dimensions (178.1k)

Fhp 401 Data Sheet (135.2k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 401-451	9:22 am 09/01/2016	11M
SLDP	Fhp 401-451	9:22 am 09/01/2016	1.7M
STEP	Fhp 401-451	9:22 am 09/01/2016	5.6M
dwg	Fhp 401-451	9:22 am 09/01/2016	1.5M
pdf	Fhp 401-451	9:22 am 09/01/2016	4.4M

Product Manuals:

PIP 7 F090-0-001 (1.6M)

Part Number	Description	Drawing	Data Sheet
TC-3400	PID Temperature controller
EH-2001	200 Watts Enclosure heater 120 VAC
EH-2002	200 Watts Enclosure heater 240 VAC
EH-4001	400 Watts Enclosure heater 120 VAC
EH-4002	400 Watts Enclosure heater 240 VAC

Features:
• Compact (only 10” X 5.86” X 9”)
• Mounts and operates in any orientation: horizontal, vertical, etc
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Suitable for NEMA-12 (IP 52) environment
• Operating ambient temperature range -40/+70 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 18 LBS.

Resources:

Air conditioner Notes

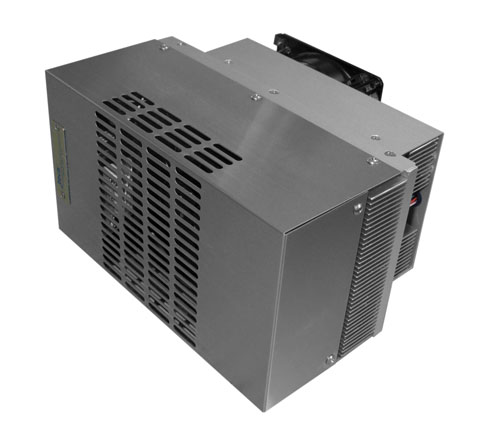

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment 95 Watts (315 BTU/HR):

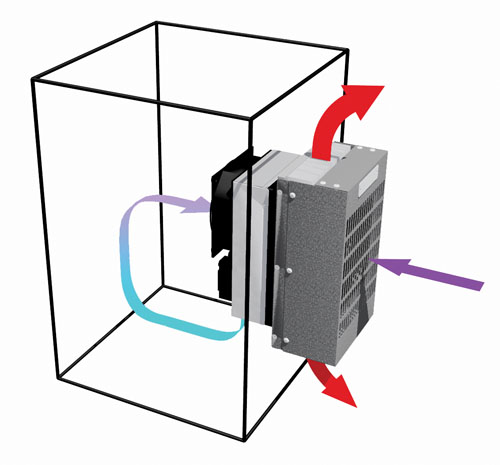

TECA’s AHP-470 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-470 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

Mounting Style: Through Mounted

Voltage: 24 VDC (12 VDC configuration available)
Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment
Ahp 470 Data Sheet (252.3k)

Performance Rating:
Cooling (Traditional): 315 BTU/HR
Cooling (Din 3168): 95 WATTS
Cooling COP (at L35 L35): 0.56
Heating (Traditional): > 572 BTU/HR
Heating (Din 3168): > 168 WATTS
Heating COP: > 1.0

Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)

Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	ENVIRONMENT
AHP-470	0-F0J5-0-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Indoors
AHP-470HC	0-F095-1-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Indoors
AHP-470HC	0-F0I5-1-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Indoors
AHP-470XE	0-F0J5-4-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors
AHP-470XEHC	0-F095-5-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors
AHP-470XEHC	0-F0I5-5-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors
AHP-470X	0-F0J5-2-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors/Military
AHP-470XHC	0-F095-3-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors/Military
AHP-470XHC	0-F0I5-3-001 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors/Military

Click to open PDF performance curves:

AHP 470 DIN 3168 Cool Mode (10.2k)
AHP 470 Traditional Cool Mode (112.3k)
Ahp 470 Eco Mode (10.1k)
Ahp 470 Heat (10.1k)

Click to open files:

AHP 400-500 Dimensions (200.8k)
AHP 400-500 Installation (148.9k)
Pivot Clean (157.6k)

Ahp 470 Data Sheet (252.3k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

SLDP	Ahp 400	9:01 am 09/01/2016	2.6M
IGS	Ahp 400-500	9:01 am 09/01/2016	20.5M
STEP	Ahp 400-500	9:01 am 09/01/2016	8.1M
dwg	Ahp 400-500	9:01 am 09/01/2016	845.8k
pdf	Ahp 400-500	9:01 am 09/01/2016	3.2M

Product Manuals:

PIP 0 F0J5-0-001 (857.7k)

PIP 0 F0J5-2-001 (1.1M)

PIP 0 F0J5-4-001 (844.3k)

PIP 0 F094-5-001 (1.5M)

PIP 0 F095-5-001 (1.1M)

Part Number	Description	Drawing	Data Sheet
DVA-500	Drip pan, vertical cold side fins
DHA-500	Drip pan, horizontal cold side fins
D-100	Condensate discharge, plastic
D-200	Condensate discharge, ST.ST.
AS150-12	Switching power supply 150 Watts, 12 VDC
AS150-24	Switching power supply 150 Watts, 24 VDC
SP300-12	Switching power supply 300 Watts, 12 VDC
SP300-24	Switching power supply 300 Watts, 24 VDC

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.
