laboratory cold plates Archives

Molecular Diagnostics

April 22, 2020April 21, 2020 by Afshin

Molecular Diagnostics

Molecular Diagnostics COVID-19 tests

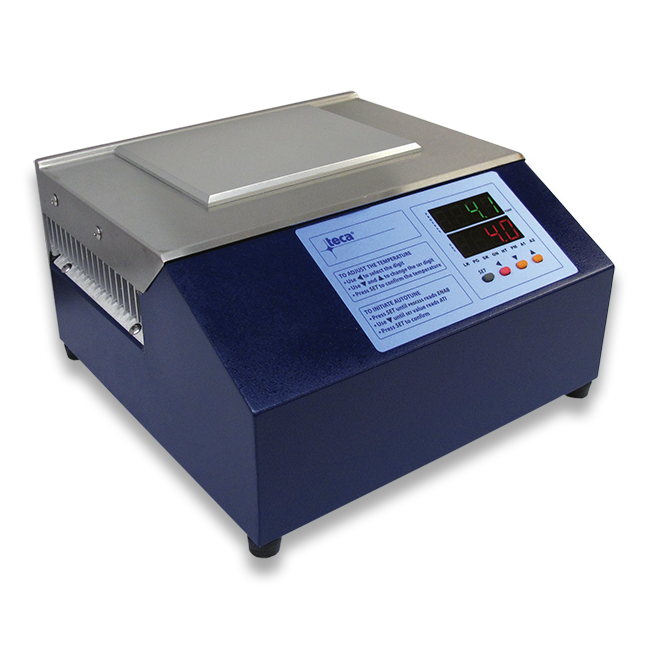

Several TECA Cold/Hot Plates are being used by our customer in their manufacturing process for COVID-19 tests. The AHP-301CPV is UL/CSA and CE marked. It has universal power supply for 100-240 VAC and includes communications software. With the premium features that all our “CPV” products offer, the AHP-301CPV is economically sized for smaller applications. The small footprint also makes it ideal for use at individual workstations. Please contact TECA for pricing or for sizing help. Click on the previous links to view product information on our website.

Stir, Cool & Heat Samples

December 16, 2016December 9, 2016 by Afshin

Designed for Laboratory : Stir, Cool & Heat Samples:

TECA’s new Stirring Bead Bath can maintain samples from 0 °C to 50 °C using reliable, low maintenance thermoelectric (Peltier) technology.

Versatile Thermoelectric Cold/Hot Plates

October 28, 2016October 28, 2016 by Afshin

TECA’s Versatile Thermoelectric Cold/Hot Plates:

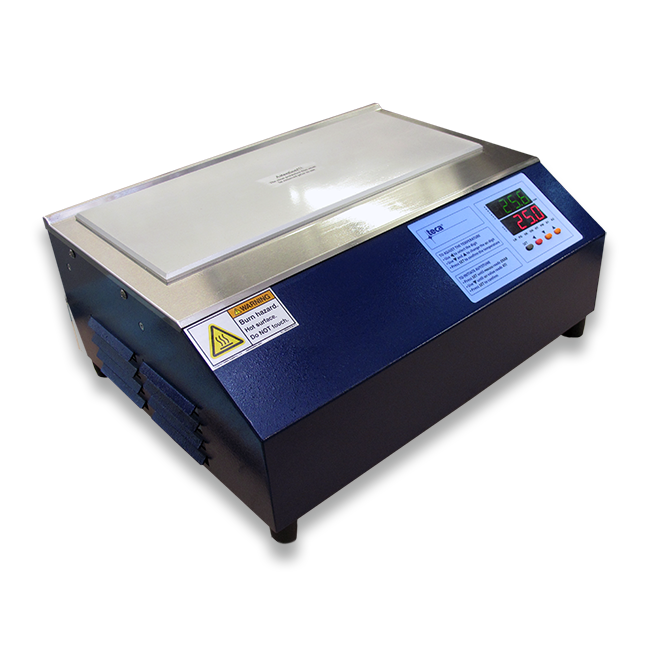

LHP-1200CPV Liquid cooled cold/hot plate

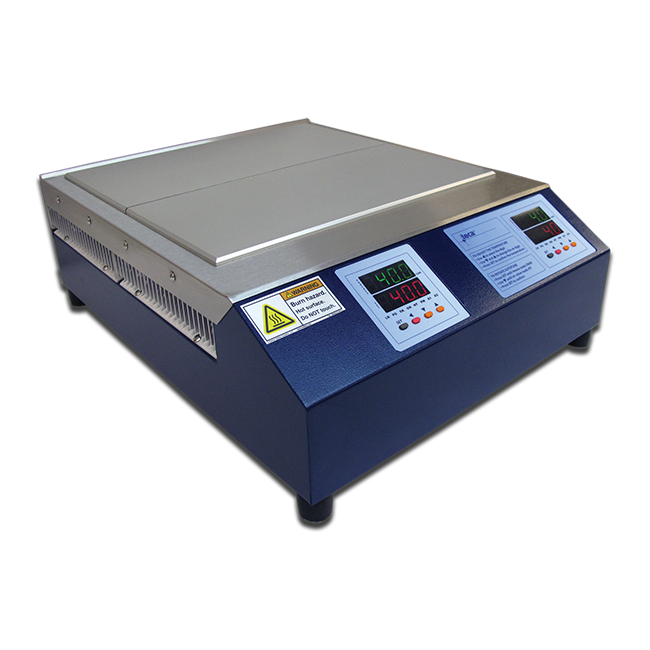

AHP-1200DCP Air cooled dual cold/hot plate

TECA’s versatile cold/hot plates are available in various size, cooling capacities and configurations. To compare the various laboratory cold/hot plates please refer to table below.

MODEL NUMBER	NOTES	OVERALL SIZE inches [mm]	COLD PLATE SURFACE in² [cm²]	VOLTAGE vac	CURRENT amps	COOLING CAPACITY watts @ 0 dT
AHP-310CPV	Air cooled	10.1×9.9×5.7 [257x251x146]	27 [173]	100-240	2.4-1.0	82

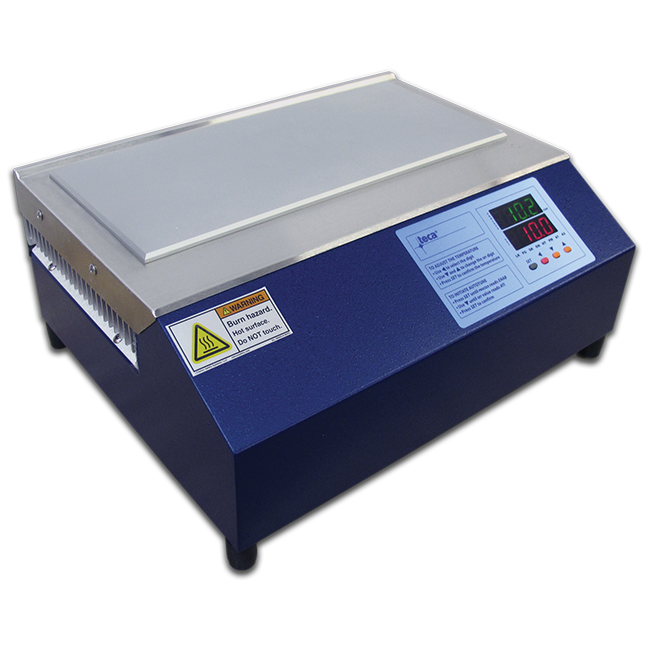

AHP-1200CPV	Air cooled	15.2×11.8×6.5 [386x300x165]	77 [497]	100-240	4.2-1.75	230
LHP-1200CPV	Liquid cooled	15.2×11.8×6.5 [386x300x165]	77 [497]	100-240	9.6-4.0	400
AHP-1200DCP	Air cooled dual temperature zones	15.2×19.2×6.5 [386x488x165]	169 [1095]	100-240	2.5-5.0	400

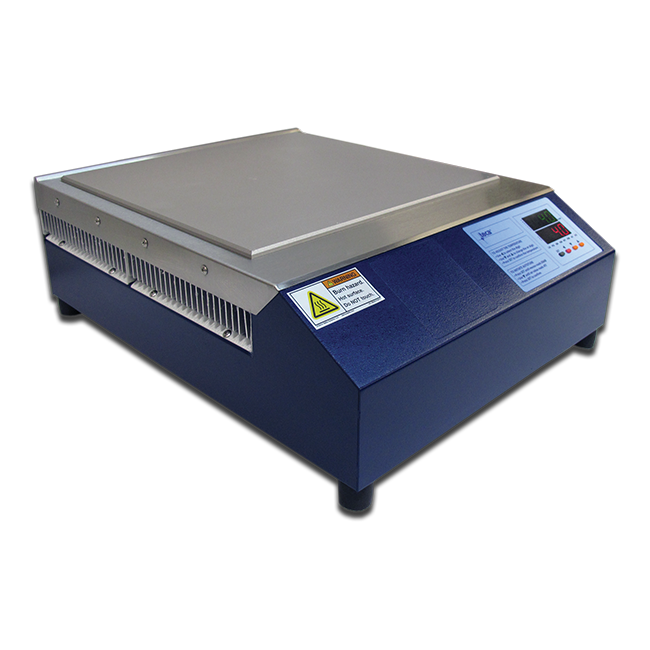

AHP-1800CPV	Air cooled	15.2×19.2×6.5 [386x488x165]	169 [1095]	100-240	2.5-5.0	400

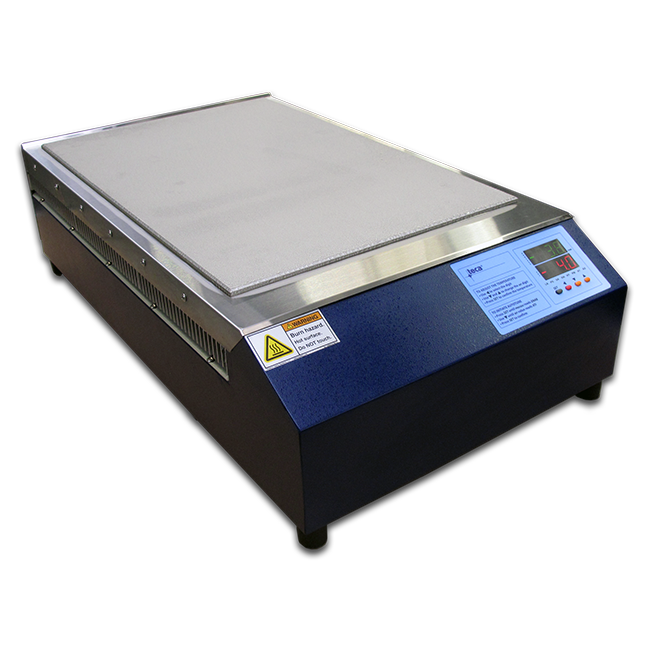

AHP-2700CPV	Air cooled	15.2×26.6×7.3 [386x677x186]	270 [1744]	100-240	14-6.5	690
