Thermoelectric Air Conditioner
Climate Control for NEMA-12, NEMA-4/4X, Harsh/Mil Duty, CID2 and CID1 530 BTU/HR (154 watts), For AC or DC Input Voltage:
For cooling NEMA cabinets, the AHP-1200-Series is an important and incredibly popular legacy product. The AHP-1200-Series is a thermoelectric air conditioner designed to protect electronics equipment boxes from overheating. Utilizing reliable Peltier cooling (and heating when needed!) technology, AHP-1200 coolers protect electronic controls, electrical equipment, equipment cabinets, railway controls, alarms, crane controls, automation equipment controls, and other heat sensitive equipment.
Versatile choices allow for use in 24 vdc, 48 vdc, 120 VAC and 240 VAC areas. Serving every environment rating including NEMA-12/4/4X, Harsh/Mil Duty, and Hazardous Locations. Protect against equipment box failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.
Mounting Style: Through Mounted
Voltage: 120 VAC, 240 VAC, 24 VDC, 48 VDC
Current: 4.5 AMPS, 2.5 AMPS, 9 AMPS, 4.5 AMPS
Operating Ambient: -40°C up to +71°C (see data sheets)
Operating Enclosure: -10/+60 °C
Environments: , ,Performance Rating:

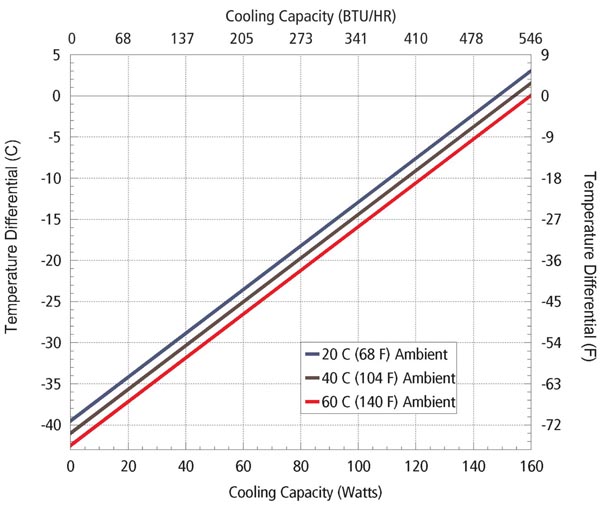

Cooling (Traditional): 530 BTU/HR
Cooling (Din 3168): 154 WATTS
Cooling COP (at L35 L35): 0.71 (DC version)
Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input lead or cordController Features:
TC-1F: Active cool 35 °C
TC-6F: Active cool 25 °C or 35 °C
TC-3F: Active cool 35 °C; Active heat 15 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C- Click on the part numbers to request a quick quote:
NEMA-12/IndoorsNEMA-4/4X/OutdoorsNEMA-4X/Harsh EnvironmentHaz. Loc.MODEL NUMBER PART NUMBER NOTES VOLTAGE
VAC (VDC)CURRENT
AMPSTEMPERATURE
CONTROLLERAHP-1200FF 0-3090-0-000
Cool only 120 4 None AHP-1200FF 0-3080-0-000
Cool only 120 4 TC-6F AHP-1200FF 0-30F0-0-000
Cool only 120 4 TC-1F AHP-1200FF 0-3050-0-000
Cool only 120 4 5-32 VDC external signal AHP-1200FFHC 0-3030-1-000
Heat/Cool 120 4 TC-3F AHP-1200FFHC 0-3050-1-000
Heat/Cool 120 4 5-32 VDC external signal AHP-1201FF 0-3081-0-000
Cool only 120/240 4.0/2.2 TC-6F AHP-1201FF 0-3051-0-000
Cool only 120/240 4.0/2.2 5-32 VDC external signal AHP-1201FF 0-30F1-0-000
Cool only 120/240 4.0/2.2 TC-1F AHP-1201FFHC 0-3031-1-000
Heat/Cool 120/240 4.0/2.2 TC-3F AHP-1201FFHC 0-3051-1-000
Heat/Cool 120/240 4.0/2.2 5-32 VDC external signal AHP-1200 0-3095-0-000
Cool only 24 9 None AHP-1200 0-3085-0-000
Cool only 24 9 TC-6F AHP-1200 0-30F5-0-000
Cool only 24 9 TC-1F AHP-1200 0-3055-0-000
Cool only 24 9 5-32 VDC external signal AHP-1200HC 0-3035-1-000
Heat/Cool 24 9 TC-3F AHP-1200HC 0-30I5-1-000
Heat/Cool 24 9 TC-7F AHP-1200HC 0-3055-1-000
Heat/Cool 24 9 5-32 VDC external signal AHP-1200HC 0-30H5-1-000
Heat/Cool 24 9 TC-4600 AHP-1200 0-3096-0-000
Cool only 48 4.5 None AHP-1200 0-3086-0-000
Cool only 48 4.5 TC-6F AHP-1200 0-30F6-0-000
Cool only 48 4.5 TC-1F AHP-1200 0-3056-0-000
Cool only 48 4.5 5-32 VDC external signal AHP-1200HC 0-3036-1-000
Heat/Cool 48 4.5 TC-3F AHP-1200HC 0-30I6-1-000
Heat/Cool 48 4.5 TC-7F AHP-1200HC 0-3056-1-000
Heat/Cool 48 4.5 5-32 VDC external signal MODEL NUMBER PART NUMBER NOTES VOLTAGE
VAC (VDC)CURRENT
AMPSTEMPERATURE
CONTROLLERAHP-1200XE 0-3080-4-000
Cool only 120 5 TC-6F AHP-1200XE 0-3050-4-000
Cool only 120 5 5-32 VDC external signal AHP-1200XE 0-30F0-4-000
Cool only 120 5 TC-1F AHP-1200XEHC 0-3030-5-000
Heat/Cool 120 5 TC-3F AHP-1200XEHC 0-3050-5-000
Heat/Cool 120 5 5-32 VDC external signal AHP-1202XE 0-3082-4-000
Cool only 240 2.5 TC-6F AHP-1202XE 0-3052-4-000
Cool only 240 2.5 5-32 VDC external signal AHP-1202XE 0-30F2-4-000
Cool only 240 2.5 TC-1F AHP-1202XEHC 0-3032-5-000
Heat/Cool 240 2.5 TC-3F AHP-1202XEHC 0-3052-5-000
Heat/Cool 240 2.5 5-32 VDC external signal AHP-1200XE 0-3095-4-000
Cool only 24 9 None AHP-1200XE 0-3085-4-000
Cool only 24 9 TC-6F AHP-1200XE 0-30F5-4-000
Cool only 24 9 TC-1F AHP-1200XE 0-3055-4-000
Cool only 24 9 5-32 VDC esxternal signal AHP-1200XEHC 0-3035-5-000
Heat/Cool 24 9 TC-3F AHP-1200XEHC 0-30I5-5-000
Heat/Cool 24 9 TC-7F AHP-1200XEHC 0-3055-5-000
Heat/Cool 24 9 5-32 VDC esxternal signal AHP-1200XEHC 0-30H5-5-000
Heat/Cool 24 9 TC-4600 AHP-1200XE 0-3096-4-000
Cool only 48 4.5 None AHP-1200XE 0-3086-4-000
Cool only 48 4.5 TC-6F AHP-1200XE 0-30F6-4-000
Cool only 48 4.5 TC-1F AHP-1200XE 0-3056-4-000
Cool only 48 4.5 5-32 VDC esxternal signal AHP-1200XEHC 0-3036-5-000
Heat/Cool 48 4.5 TC-3F AHP-1200XEHC 0-30I6-5-000
Heat/Cool 48 4.5 TC-7F AHP-1200XEHC 0-3056-5-000
Heat/Cool 48 4.5 5-32 VDC esxternal signal MODEL NUMBER PART NUMBER NOTES VOLTAGE
VAC (VDC)CURRENT
AMPSTEMPERATURE CONTROLLER AHP-1200X 0-3090-2-000
Cool only 120 4 None AHP-1200X 0-3080-2-000
Cool only 120 4 TC-6F AHP-1200X 0-3050-2-000
Cool only 120 4 5-32 VDC external signal AHP-1200X 0-30F0-2-000
Cool only 120 4 TC-1F AHP-1200XHC 0-3030-3-000
Heat/Cool 120 4 TC-3F AHP-1200XHC 0-3050-3-000
Heat/Cool 120 4 5-32 VDC external signal AHP-1200X 0-3095-2-000
Cool only 24 9 None AHP-1200X 0-3085-2-000
Cool only 24 9 TC-6F AHP-1200X 0-30F5-2-000
Cool only 24 9 TC-1F AHP-1200X 0-3055-2-000
Cool only 24 9 5-32 VDC esxternal signal AHP-1200XHC 0-3035-3-000
Heat/Cool 24 9 TC-3F AHP-1200XHC 0-30I5-3-000
Heat/Cool 24 9 TC-7F AHP-1200XHC 0-3055-3-000
Heat/Cool 24 9 5-32 VDC esxternal signal AHP-1200XHC 0-30H5-3-000
Heat/Cool 24 9 TC-4600 AHP-1200X 0-3096-2-000
Cool only 48 4.5 None AHP-1200X 0-3086-2-000
Cool only 48 4.5 TC-6F AHP-1200X 0-30F6-2-000
Cool only 48 4.5 TC-1F AHP-1200X 0-3056-2-000
Cool only 48 4.5 5-32 VDC esxternal signal AHP-1200XHC 0-3036-3-000
Heat/Cool 48 4.5 TC-3F AHP-1200XHC 0-30I6-3-000
Heat/Cool 48 4.5 TC-7F AHP-1200XHC 0-3056-3-000
Heat/Cool 48 4.5 5-32 VDC esxternal signal MODEL PART NUMBER VOLTAGE VAC CURRENT AMPS WEIGHT LB. (KG) TEMPERATURE CONTROL OPERATING AMBIENT TEMPERATURE RANGE °C OPERATING ENCLOSURE TEMPERATURE RANGE °C ENVIRONMENT AHP-1200EP 0-3080-0-003 120 4.0 21(9.5) TC-6F -40/+63 -10/+60 NEMA-12 AHP-1200EP 0-30F0-0-004 120 4.0 21(9.5) 85°F (30°C) -40/+63 -10/+60 NEMA-12 AHP-1200EP-1 0-3070-0-010 120 4.0 21(9.5) EXT* -40/+63 -10/+60 NEMA-12 AHP-1200EPHC 0-3030-1-007 120 4.0 21(9.5) TC-3F -40/+63 -10/+60 NEMA-12 AHP-1200EPHC-1 0-3070-1-009 120 4.0 21(9.5) EXT* -40/+63 -10/+60 NEMA-12 AHP-1200XEP 0-3080-4-003 120 4.0 21(9.5) TC-6F -40/+63 -10/+60 NEMA-4/4X AHP-1200XEP 0-30F0-4-004 120 4.0 21(9.5) 85°F (30°C) -40/+63 -10/+60 NEMA-4/4X AHP-1200XEP-1 0-3070-4-010 120 4.0 21(9.5) EXT* -40/+63 -10/+60 NEMA-4/4X AHP-1200XEPHC 0-3030-5-007 120 4.0 21(9.5) TC-3F -40/+63 -10/+60 NEMA-4/4X AHP-1200XEPHC-1 0-3070-5-009 120 4.0 21(9.5) EXT* -40/+63 -10/+60 NEMA-4/4X AHP-1200XP 0-3080-2-003 120 4.0 21(9.5) TC-6F -40/+71 -10/+60 NEMA-4X/Harsh AHP-1200XP 0-30F0-2-004 120 4.0 21(9.5) 85°F (30°C) -40/+71 -10/+60 NEMA-4X/Harsh AHP-1200XP-1 0-3070-2-010 120 4.0 21(9.5) EXT* -40/+71 -10/+60 NEMA-4X/Harsh AHP-1200XPHC 0-3030-3-007 120 4.0 21(9.5) TC-3F -40/+71 -10/+60 NEMA-4X/Harsh AHP-1200XPHC-1 0-3070-3-009 120 4.0 21(9.5) EXT* -40/+71 -10/+60 NEMA-4X/Harsh AHP-1201EP 0-3081-0-003 120/240 4.0/2.0 29(13.2) TC-6F -40/+63 -10/+60 NEMA-12 AHP-1201EP 0-30F1-0-004 120/240 4.0/2.0 29(13.2) 85°F (30°C) -40/+63 -10/+60 NEMA-12 AHP-1201EP-1 0-3071-0-010 120/240 4.0/2.0 29(13.2) EXT* -40/+63 -10/+60 NEMA-12 AHP-1201EPHC 0-3031-1-007 120/240 4.0/2.0 29(13.2) TC-3F -40/+63 -10/+60 NEMA-12 AHP-1201EPHC-1 0-3071-1-009 120/240 4.0/2.0 29(13.2) EXT* -40/+63 -10/+60 NEMA-12 AHP-1201XEP 0-3081-4-003 120/240 4.0/2.0 29(13.2) TC-6F -40/+63 -10/+60 NEMA-4/4X AHP-1201XEP 0-30F1-4-004 120/240 4.0/2.0 29(13.2) 85°F (30°C) -40/+63 -10/+60 NEMA-4/4X AHP-1201XEP-1 0-3071-4-010 120/240 4.0/2.0 29(13.2) EXT* -40/+63 -10/+60 NEMA-4/4X AHP-1201XEPHC 0-3031-5-007 120/240 4.0/2.0 29(13.2) TC-3F -40/+63 -10/+60 NEMA-4/4X AHP-1201XEPHC-1 0-3071-5-009 120/240 4.0/2.0 29(13.2) EXT* -40/+63 -10/+60 NEMA-4/4X AHP-1201XP 0-3081-2-014 120/240 4.0/2.0 29(13.2) TC-6F -40/+71 -10/+60 NEMA-4X/Harsh AHP-1201XP 0-30F1-2-020 120/240 4.0/2.0 29(13.2) 85°F (30°C) -40/+71 -10/+60 NEMA-4X/Harsh AHP-1201XP-1 0-3071-2-012 120/240 4.0/2.0 29(13.2) EXT* -40/+71 -10/+60 NEMA-4X/Harsh AHP-1201XPHC 0-3031-3-011 120/240 4.0/2.0 29(13.2) TC-3F -40/+71 -10/+60 NEMA-4X/Harsh AHP-1201XPHC-1 0-3071-3-013 120/240 4.0/2.0 29(13.2) EXT* -40/+71 -10/+60 NEMA-4X/Harsh - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Part Number Description Drawing Data Sheet EH-2001 200 Watts Enclosure heater
120 VAC
EH-2002 200 Watts Enclosure heater
240 VACEH-4001 400 Watts Enclosure heater
120 VACEH-4002 400 Watts Enclosure heater
240 VACDVA-1200 Drip pan, vertical cold side fins DHA-1200 Drip pan, horizontal cold side fins D-100 Condensate discharge, plastic D-200 Condensate discharge, ST.ST. SP300-24 Switching power supply
300 Watts, 24 VDCSP500-24 Switching power supply
500 Watts, 24 VDCFeatures:
• Compact, (only 15”L X 7.35”W X 8.17”D)
• Weighs only 21 lbs. (9.5 kg)
• Excels in high ambient temperatures
• Environmentally safe
• Dual voltage versions available
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments, shock and vibration
• Mounts and operates in any orientation
• Easy to use Pivot Clean feature
• Agency approvals: ETL Intertek
