High Efficiency Thermoelectric Air Conditioner
Mounting Style: Through Mounted
Voltage: 120 VAC, (48 VDC)
Current: 14 AMPS, (25 AMPS)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: , ,Performance Rating:
Cooling (Traditional): 4340 BTU/HR
Cooling (Din 3168): 1273 WATTS
Cooling COP (at L35 L35): 0.76
Heating (Traditional): >5524 BTU/HR
Heating (Din 3168): >1620 WATTS
Heating COP: >1.0
Heat Exchanger (ECO-Mode): 45 W/°CIncludes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breakerController Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES CONTROLLER ENVIRONMENT CURRENT
AMPSENVIRONMENT AHP-6250 0-K4J0-0-000
Cool only TC-4F 120 14 NEMA-12, IP 52 AHP-6250 0-K450-0-000
Cool only 3-32 VDC External signal 120 14 NEMA-12, IP 52 AHP-6250HC 0-K4I0-1-000
Heat/Cool TC-7F 120 14 NEMA-12, IP 52 AHP-6250HC 0-K450-1-000
Heat/Cool 3-32 VDC External signal 120 14 NEMA-12, IP 52 AHP-6250XE 0-K4J0-4-000
Cool only TC-4F 120 14 NEMA-4/4X, IP 56 AHP-6250XE 0-K450-4-000
Cool only 3-32 VDC External signal 120 14 NEMA-4/4X, IP 56 AHP-6250XEHC 0-K4I0-5-000
Heat/Cool TC-7F 120 14 NEMA-4/4X, IP 56 AHP-6250XEHC 0-K450-5-000
Heat/Cool 3-32 VDC External signal 120 14 NEMA-4/4X, IP 56 AHP-6250X 0-K4J0-2-000
Cool only TC-4F 120 14 NEMA-4X/Harsh Environment, IP 56 AHP-6250X 0-K450-2-000
Cool only 3-32 VDC External signal 120 14 NEMA-4X/Harsh Environment, IP 56 AHP-6250XHC 0-K4I0-3-000
Heat/Cool TC-7F 120 14 NEMA-4X/Harsh Environment, IP 56 AHP-6250XHC 0-K450-3-000
Heat/Cool 3-32 VDC External signal 120 14 NEMA-4X/Harsh Environment, IP 56 AHP-6250 0-K4J6-0-000
Cool only TC-4F (48) 25 NEMA-12, IP 52 AHP-6250 0-K456-0-000
Cool only 3-32 VDC External signal (48) 25 NEMA-12, IP 52 AHP-6250HC 0-K4I6-1-000
Heat/Cool TC-7F (48) 25 NEMA-12, IP 52 AHP-6250HC 0-K456-1-000
Heat/Cool 3-32 VDC External signal (48) 25 NEMA-12, IP 52 AHP-6250XE 0-K4J6-4-000
Cool only TC-4F (48) 25 NEMA-4/4X, IP 56 AHP-6250XE 0-K456-4-000
Cool only 3-32 VDC External signal (48) 25 NEMA-4/4X, IP 56 AHP-6250XEHC 0-K4I6-5-000
Heat/Cool TC-7F (48) 25 NEMA-4/4X, IP 56 AHP-6250XEHC 0-K456-5-000
Heat/Cool 3-32 VDC External signal (48) 25 NEMA-4/4X, IP 56 AHP-6250X 0-K4J6-2-000
Cool only TC-4F (48) 25 NEMA-4X/Harsh Environment, IP 56 AHP-6250X 0-K456-2-000
Cool only 3-32 VDC External signal (48) 25 NEMA-4X/Harsh Environment, IP 56 AHP-6250XHC 0-K4I6-3-000
Heat/Cool TC-7F (48) 25 NEMA-4X/Harsh Environment, IP 56 AHP-6250XHC 0-K456-3-000

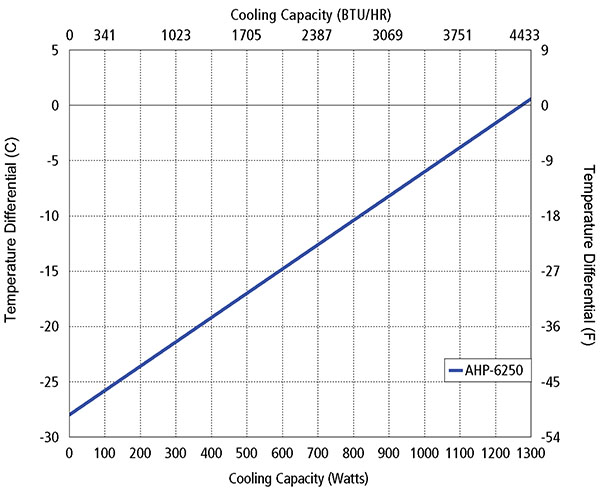

Heat/Cool 3-32 VDC External signal (48) 25 NEMA-4X/Harsh Environment, IP 56 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Part Number Description For use with air conditioner series Drawing Data Sheet EH-2001 200 Watts Enclosure heater
120 VAC
EH-2002 200 Watts Enclosure heater
240 VACEH-4001 400 Watts Enclosure heater
120 VACEH-4002 400 Watts Enclosure heater
240 VACDVA-6200 Drip pan, vertical cold side fins AHP-6200 DHA-6200 Drip pan, horizontal cold side fins AHP-6200 D-100 Condensate discharge, plastic D-200 Condensate discharge, ST.ST. Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger (ECO-mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 170 LBS.
