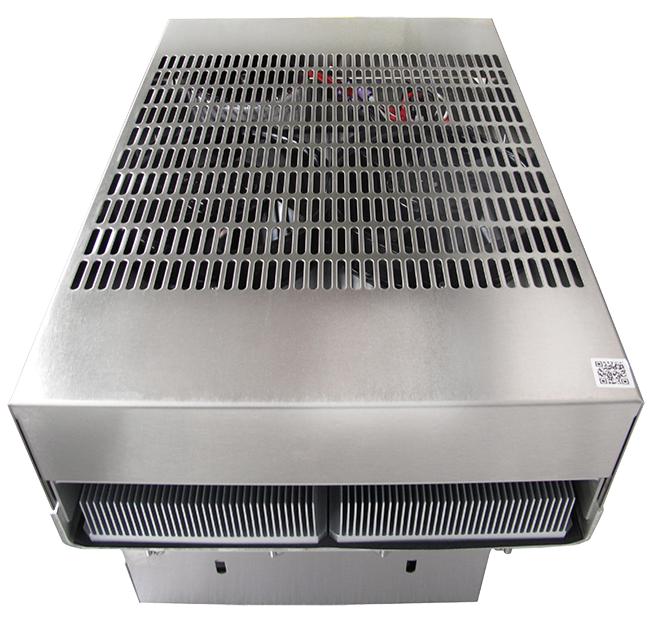

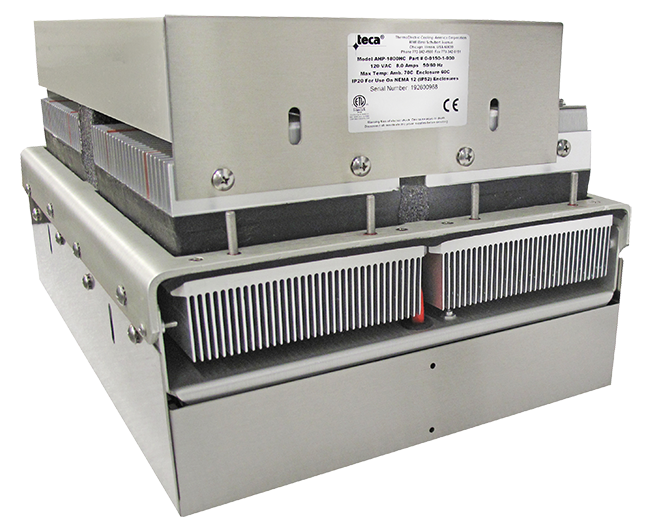

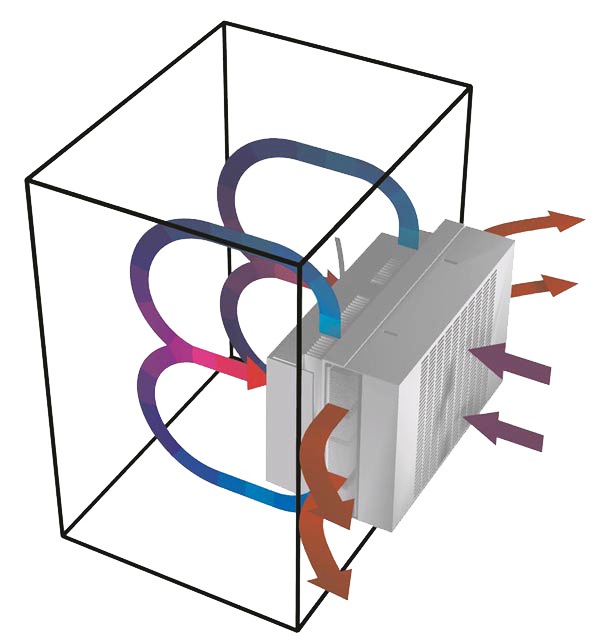

AHP-1800 Series

Thermoelectric Air Conditioner

Cooling Industrial and Military Enclosures NEMA-4/4X, NEMA-12, Hazardous Location CID2 & CID1, Harsh and Mil Duty 1098 BTU/HR (322 watts), AC or DC Input Voltage:

For cooling and heating NEMA-12/4/4X cabinets, the AHP-1800-Series is an important and incredibly popular legacy product for climate control. The AHP-1800-Series is a Peltier air conditioner designed to protect electronics equipment boxes from overheating. Thermoelectric cooling technology reliably cools (or heats) your enclosures to protect electronic controls, electrical equipment, control cabinets, and other heat sensitive equipment.

This thermoelectric cabinet cooler accepts 24 vdc, 48 vdc, 120 VAC and 240 VAC input. It can cool while maintaining environment ratings: NEMA-12/4/4X, Harsh/Mil Duty, and Hazardous Locations CID1/CID2. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.

  • Mounting Style: Through Mounted

    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40°C up to +75°C (see data sheets)
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    1100 BTU/HR
    Cooling (Din 3168): 322 WATTS
    Cooling COP (at L35 L35): 0.74 (DC version)
    Heating (Traditional): >1473 BTU/HR (DC version)
    Heating (Din 3168): >432 WATTS (DC version)
    Cooling COP (at L35 L35): >1 (DC version)



    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    NEMA-12/IndoorsNEMA-4/4X OutdoorsNEMA-4X/Harsh EnvironmentHaz. Loc.
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-18000-0180-0-000
    Cool onlyTC-6F1208
    AHP-18000-0150-0-000
    Cool only3-32 VDC External signal1208
    AHP-18000-01F0-0-000
    Cool onlyTC-1F1208
    AHP-1800HC0-0130-1-000
    Heat/CoolTC-3F1208
    AHP-1800HC0-0150-1-000
    Heat/Cool3-32 VDC External signal1208
    AHP-18020-0182-0-000
    Cool onlyTC-6F2405
    AHP-18020-0152-0-000
    Cool only3-32 VDC External signal2405
    AHP-18020-01F2-0-000
    Cool onlyTC-1F2405
    AHP-1802HC0-0132-1-000
    Heat/CoolTC-3F2405
    AHP-1802HC0-0152-1-000
    Heat/Cool3-32 VDC External signal2405
    AHP-18010-0181-0-000
    Cool onlyTC-6F120/2408.0/5.0
    AHP-18010-01F1-0-000
    Cool onlyTC-1F120/2408.0/5.0
    AHP-1801HC0-0131-1-000
    Heat/CoolTC-3F120/2408.0/5.0
    AHP-18000-0195-0-000
    Cool onlyNone(24)18
    AHP-18000-0185-0-000
    Cool onlyTC-6F(24)18
    AHP-18000-01F5-0-000
    Cool onlyTC-1F(24)18
    AHP-18000-0155-0-000
    Cool only3-32 VDC External signal(24)18
    AHP-1800HC0-0135-1-000
    Heat/CoolTC-3F(24)18
    AHP-1800HC0-01I5-1-000
    Heat/CoolTC-7F(24)18
    AHP-1800HC0-0155-1-000
    Heat/Cool3-32 VDC External signal(24)18
    AHP-1800HC0-01H5-1-000
    Heat/CoolTC-4600(24)18
    AHP-18000-0196-0-000
    Cool onlyNone(48)9
    AHP-18000-0186-0-000
    Cool onlyTC-6F(48)9
    AHP-18000-01F6-0-000
    Cool onlyTC-1F(48)9
    AHP-18000-0156-0-000
    Cool only3-32 VDC External signal(48)9
    AHP-1800HC0-0136-1-000
    Heat/CoolTC-3F(48)9
    AHP-1800HC0-01I6-1-000
    Heat/CoolTC-7F(48)9
    AHP-1800HC0-0156-1-000
    Heat/Cool3-32 VDC External signal(48)9
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-1800XE0-0180-4-000
    Cool onlyTC-6F1208
    AHP-1800XE0-0150-4-000
    Cool only3-32 VDC External signal1208
    AHP-1800XE0-01F0-4-000
    Cool onlyTC-1F1208
    AHP-1800XEHC0-0130-5-000
    Heat/CoolTC-3F1208
    AHP-1800XEHC0-0150-5-000
    Heat/Cool3-32 VDC External signal1208
    AHP-1802XE0-0182-4-000
    Cool onlyTC-6F2405
    AHP-1802XE0-0152-4-000
    Cool only3-32 VDC External signal2405
    AHP-1802XE0-01F2-4-000
    Cool onlyTC-1F2405
    AHP-1802XEHC0-0132-5-000
    Heat/CoolTC-3F2405
    AHP-1802XEHC0-0152-5-000
    Heat/Cool3-32 VDC External signal2405
    AHP-1800XE0-0195-4-000
    Cool onlyNone(24)18
    AHP-1800XE0-0185-4-000
    Cool onlyTC-6F(24)18
    AHP-1800XE0-01F5-4-000
    Cool onlyTC-1F(24)18
    AHP-1800XE0-0155-4-000
    Cool only3-32 VDC External signal(24)18
    AHP-1800XEHC0-0135-5-000
    Heat/CoolTC-3F(24)18
    AHP-1800XEHC0-01I5-5-000
    Heat/CoolTC-7F(24)18
    AHP-1800XEHC0-0155-5-000
    Heat/Cool3-32 VDC External signal(24)18
    AHP-1800XEHC0-01H5-5-000
    Heat/CoolTC-4600(24)18
    AHP-1800XE0-0196-4-000
    Cool onlyNone(48)9
    AHP-1800XE0-0186-4-000
    Cool onlyTC-6F(48)9
    AHP-1800XE0-01F6-4-000
    Cool onlyTC-1F(48)9
    AHP-1800XE0-0156-4-000
    Cool only3-32 VDC External signal(48)9
    AHP-1800XEHC0-0136-5-000
    Heat/CoolTC-3F(48)9
    AHP-1800XEHC0-01I6-5-000
    Heat/CoolTC-7F(48)9
    AHP-1800XEHC0-0156-5-000
    Heat/Cool3-32 VDC External signal(48)9
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-1800X0-0180-2-000
    Cool onlyTC-6F1208
    AHP-1800X0-0150-2-000
    Cool only3-32 VDC External signal1208
    AHP-1800X0-01F0-2-000
    Cool onlyTC-1F1208
    AHP-1800XHC0-0130-3-000
    Heat/CoolTC-3F1208
    AHP-1800XHC0-0150-3-000
    Heat/Cool3-32 VDC External signal1208
    AHP-1801X0-0181-2-000
    Cool onlyTC-6F120/2408.0/6.0
    AHP-1801X0-01F1-2-000
    Cool onlyTC-1F120/2408.0/6.0
    AHP-1801XHC0-0131-3-000
    Heat/CoolTC-3F120/2408.0/6.0
    AHP-1800X0-0195-2-000
    Cool onlyNone(24)18
    AHP-1800X0-0185-2-000
    Cool onlyTC-6F(24)18
    AHP-1800X0-01F5-2-000
    Cool onlyTC-1F(24)18
    AHP-1800X0-0155-2-000
    Cool only3-32 VDC External signal(24)18
    AHP-1800XHC0-0135-3-000
    Heat/CoolTC-3F(24)18
    AHP-1800XHC0-01I5-3-000
    Heat/CoolTC-7F(24)18
    AHP-1800XHC0-0155-3-000
    Heat/Cool3-32 VDC External signal(24)18
    AHP-1800XHC0-01H5-3-000
    Heat/CoolTC-4600(24)18
    AHP-1800X0-0196-2-000
    Cool onlyNone(48)9
    AHP-1800X0-0186-2-000
    Cool onlyTC-6F(48)9
    AHP-1800X0-01F6-2-000
    Cool onlyTC-1F(48)9
    AHP-1800X0-0156-2-000
    Cool only3-32 VDC External signal(48)9
    AHP-1800XHC0-0136-3-000
    Heat/CoolTC-3F(48)9
    AHP-1800XHC0-01I6-3-000
    Heat/CoolTC-7F(48)9
    AHP-1800XHC0-0156-3-000
    Heat/Cool3-32 VDC External signal(48)9
    MODEL PART NUMBER VOLTAGE    VAC 50/60 Hz CURRENT AMPS WEIGHT LBS. (KG) TEMP. CONTROL OPERATING AMBIENT TEMPERATURE RANGE C OPERATING ENCLOSURE TEMPERATURE RANGE C ENVIRONMENT
    AHP-1800EP 0-0180-0-002 120 8  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-12
    AHP-1800EP 0-01F0-0-002 120 8  46 (21) TC-1F  -40/+63   -10/+60  NEMA-12
    AHP-1800EP-1 0-0170-0-004 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1800EPHC  0-0130-1-003 120 8  46 (21) TC-3F  -40/+63   -10/+60  NEMA-12
    AHP-1800EPHC-1 0-0170-1-006 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1800XEP 0-0180-4-002 120 8  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEP 0-01F0-4-002 120 8  46 (21) TC-1F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEP-1 0-0170-4-004 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEPHC  0-0130-5-003 120 8  46 (21) TC-3F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEPHC-1 0-0170-5-006 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801EP 0-0181-0-002 120/240 8/5  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-12
    AHP-1801EP 0-01F1-0-002 120/240 8/5  46 (21) TC-1F  -40/+63   -10/+60  NEMA-12
    AHP-1801EP-1 0-0171-0-002 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1801EPHC  0-0131-1-003 120/240 8/5  46 (21) TC-3F  -40/+63   -10/+60  NEMA-12
    AHP-1801EPHC-1 0-0171-1-006 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1801XEP 0-0181-4-002 120/240 8/5  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEP 0-01F1-4-002 120/240 8/5  46 (21) TC-1F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEP-1 0-0171-4-002 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEPHC  0-0131-5-003 120/240 8/5  46 (21) TC-3F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEPHC-1 0-0171-5-006 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XP 0-0180-2-002 120 8 47 (21.4)  TC-6F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XP 0-01F0-2-002 120 8 47 (21.4) TC-1F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XP-1 0-0170-2-004 120 8 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XPHC 0-0130-3-003 120 8 47 (21.4) TC-3F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XPHC-1 0-0170-3-006 120 8 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP 0-0181-2-002 120/240 8/5 47 (21.4)  TC-6F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP 0-01F1-2-002 120/240 8/5 47 (21.4) TC-1F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP-1 0-0171-2-005 120/240 8/5 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XPHC 0-0131-3-003 120/240 8/5 47 (21.4) TC-3F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XPHC-1 0-0171-3-004 120/240 8/5 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh



  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 1801 8:49 am 09/01/201624.8M

    STEP
    AHP 1801 8:49 am 09/01/201610.8M

    sldp
    AHP 1801 8:49 am 09/01/20162M

    SLDP
    AHP 1802XP 1:26 pm 08/01/201912.5M

    IGS
    Ahp 1800 8:48 am 09/01/201625.2M

    SLDP
    Ahp 1800 8:48 am 09/01/20162.3M

    STEP
    Ahp 1800 8:48 am 09/01/201610.9M

    dwg
    Ahp 1800 8:48 am 09/01/20162M

    pdf
    Ahp 1800 8:48 am 09/01/20161.1M

    dwg
    Ahp 1801 8:48 am 09/01/20162M

    pdf
    Ahp 1801 8:49 am 09/01/20161.1M
    Product Manuals:
    MA 1800 (113.9k)
    PIP 0-0150-1-000 ECN004C (630.1k)
    PIP 0-01F0-0-000 (2M)
    PIP 0-01F0-2-000 (2.1M)
    PIP 0-01F0-2-002 (1.2M)
    PIP 0-01F1-0-002 (1.3M)
    PIP 0-01F1-2-000 (1.6M)
    PIP 0-01F1-2-002 (1.2M)
    PIP 0-01F5-4-000 (731.1k)
    PIP 0-01H5-1-000 (860.6k)
    PIP 0-013C 5-000 (622.2k)
    PIP 0-0130-1-000 ECN004D (745.4k)
    PIP 0-0130-1-003 (1.2M)
    PIP 0-0130-3-000 ECN004C (769.5k)
    PIP 0-0130-3-003 ECN000A (1.2M)
    PIP 0-0130-3-003 ECN004D (1.3M)
    PIP 0-0130-5-000 ECN004D (880.5k)
    PIP 0-0130-5-003 (1.3M)
    PIP 0-0131-1-000 ECN007D (683.8k)
    PIP 0-0131-1-003 (1.3M)
    PIP 0-0131-3-000 ECN007C (696.3k)
    PIP 0-0131-3-003 ECN006D (3.3M)
    PIP 0-0132-1-000 ECN004E (815k)
    PIP 0-0132-5-000 ECN005E (972.2k)
    PIP 0-0135-1-000 (1.2M)
    PIP 0-0135-3-000 (1.2M)
    PIP 0-0135-5-000 (1.2M)
    PIP 0-0150-0-000 ECN004C (733.6k)
    PIP 0-0150-1-000 ECN004C (741.6k)
    PIP 0-0150-2-000 ECN004B (724.5k)
    PIP 0-0150-3-000 ECN004B (732.5k)
    PIP 0-0150-4-000 ECN004C (841.5k)
    PIP 0-0150-5-000 ECN004C (864.2k)
    PIP 0-0152-0-000 ECN004C (781.5k)
    PIP 0-0152-1-000 ECN004C (787.1k)
    PIP 0-0152-4-000 ECN005C (889.2k)
    PIP 0-0152-5-000 ECN005C (900.6k)
    PIP 0-0155-0-000 (1.2M)
    PIP 0-0155-1-000 (1.2M)
    PIP 0-0155-2-000 (1.2M)
    PIP 0-0155-3-000 (1.2M)
    PIP 0-0155-4-000 (1.2M)
    PIP 0-0155-5-000 (1.2M)
    PIP 0-0170-0-004 (1.2M)
    PIP 0-0170-1-006 (981.1k)
    PIP 0-0170-2-004 ECN004 (815.4k)
    PIP 0-0170-3-006 ECN004 (1.1M)
    PIP 0-0171-2-005 ECN004 (1.4M)
    PIP 0-0171-3-004 ECN008C (3.4M)
    PIP 0-0171-3-007 ECN002 (1.4M)
    PIP 0-0172-3-006 (1002k)
    PIP 0-0172-3-010 (1.5M)
    PIP 0-018C 4-000 (822.8k)
    PIP 0-0180-0-000 ECN004C (2.7M)
    PIP 0-0180-0-002 (985.1k)
    PIP 0-0180-2-000 ECN002B (1.2M)
    PIP 0-0180-2-002 ECN004C (1.1M)
    PIP 0-0180-4-000 ECN004C (911.8k)
    PIP 0-0181-0-000 ECN006D (655.3k)
    PIP 0-0181-0-001 (1.6M)
    PIP 0-0181-0-002 (1.6M)
    PIP 0-0181-2-000 ECN006C (685.3k)
    PIP 0-0181-2-002 ECN006D (3.3M)
    PIP 0-0181-2-008 ECN001A (980.9k)
    PIP 0-0182-0-000 ECN002B (1.6M)
    PIP 0-0182-2-007 (1.6M)
    PIP 0-0182-4-000 ECN005C (934.5k)
    PIP 0-0185-0-000 (1.3M)
    PIP 0-0185-2-000 (1.3M)
    PIP 0-0185-4-000 (1.3M)
    PIP 0-0195-0-000 (1.2M)
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-1800Drip pan, vertical cold side finsAHP-1800, AHP-1801, AHP-1802dwgpdf
    DHA-1800Drip pan, horizontal cold side finsAHP-1800, AHP-1801, AHP-1802dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    MA-1800Mounting bracketAHP-1800, AHP-1801, AHP-1802pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• Compact, (18” L X 12.35” W X 9.69”D)
• Excels in high ambient temperatures
• Environmentally Safe
• Dual voltage versions available, consult factory.
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments,
shock and vibration
• Mounts and operates in any orientation
• Easy to use Pivot Clean feature
• Weight 52 LBS.
• Agency approvals: ETL Intertek


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

Quarterly eNewsletter
