Protecting Investments with Thermoelectric Cooling

?TECA coolers save automated sorting equipment from overheat failure:

TECA Model AHP-1202XEHC is out in the automation field by the hundreds, reliably cooling sorting equipment. Easily one of TECA’s most popular legacy products, the AHP-1202XEHC is a great design with a lot to offer. Maintaining NEMA-4/4X enclosures in high ambient conditions and in tough, industrial settings, the AHP-1202XEHC is yet an affordable solution. In the example shown here, our customer chose to buy from TECA for a long-term project, supporting recycling centers with automated sorting machinery. The sorting system is state of the art, using new technology which requires thermal management.

Thermoelectric Cooling TECA coolers cooling sorting equipment

Read more

Thermoelectric Aircraft Galley Refrigerator

Thermoelectric Aircraft Galley Refrigerator:

TECA’s unique thermoelectric refrigerators have been successfully used for decades in large military transport aircrafts. Replacing traditional refrigerant-based refrigerators, TECA’s TR-059 offers consistent performance in a rugged environment. Our refrigerators utilize solid-state thermoelectric technology which does not require a compressor or chemical refrigerants.

Thermoelectric Aircraft Galley Refrigerator Aircraft Galley Refrigerator Aircraft Refrigerator

Ownership costs are very low due to the virtually maintenance-free nature of the technology and the rugged reliability of TECA’s thermoelectric cooling components. Our design optimizes the efficacy and performance potential of the cooling components. Made in the USA and shipped direct from our Chicago factory, there is no better choice for quality, performance, or reliability.

The TR-059 is an eco-friendly refrigerator with a proven performance history in military aircraft. Call TECA today to discuss your needs with our engineering and/or sales team. We offer friendly and knowledgeable product advice.

Phone: 773.342.4900
teca@thermoelectric.com

Environmental Chamber For Testing Asphalt

How Strong is That Asphalt?

TECA’s thermoelectric air conditioners are often used in industrial settings to keep control equipment cool. This application, however, shows another side of TECA’s enclosure coolers. Used in research laboratories across the country, TECA enclosure coolers have cooled incubation chambers, sensitive test equipment, glove boxes, and the like. Here is another example of a TECA thermoelectric air conditioner being used in the lab:

Read more

Cooling Input/Output Racks

Drywall Manufacturing: Cooling Input/Output Racks

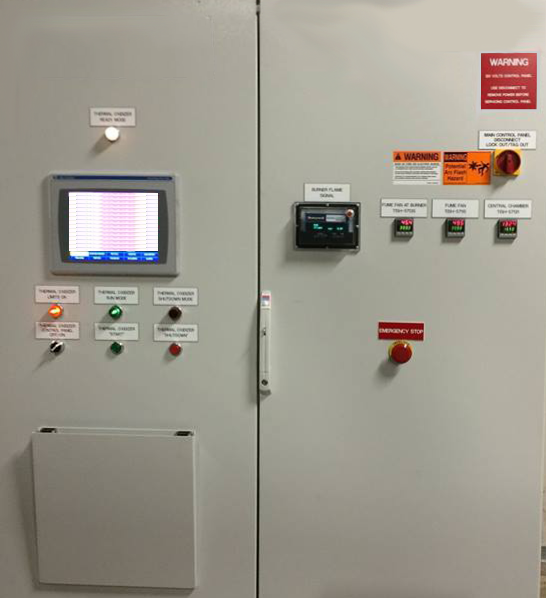

Several FHP-2250 Air Conditioners are used by our client to keep I/O racks within the operating temperature during peak ambient temperatures. Located in a dusty, high ambient industrial environment, our client originally tried cooling the control cabinets with fans and filters. However, with the ambient temperatures reaching 120F, the I/O racks faulted. Our client has half a dozen gas burning drying chambers, with a TECA FHP-2250 enclosure cooler mounted to each chamber’s control cabinet. The TECA solution is, in our client’s words “best for high ambient, low maintenance and dusty conditions to control interior temperature of these cabinets”.

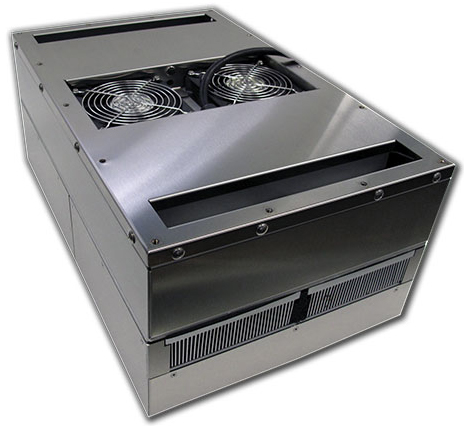

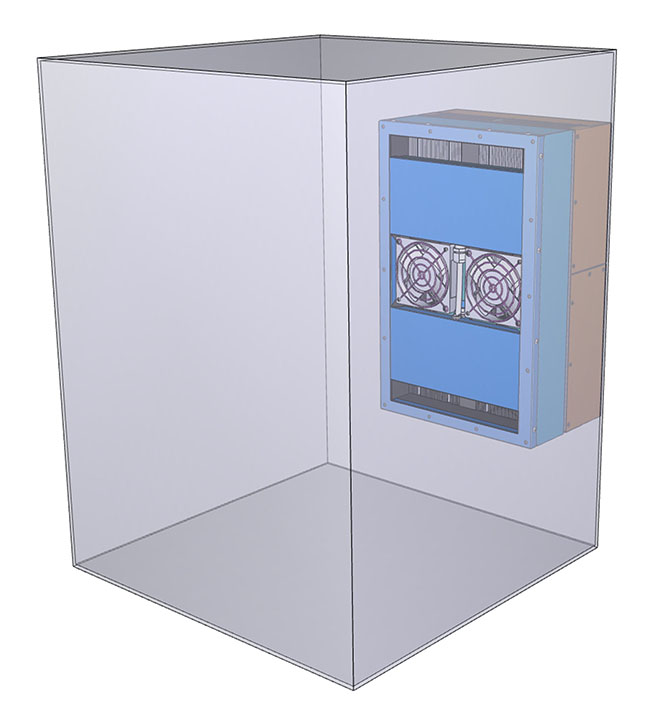

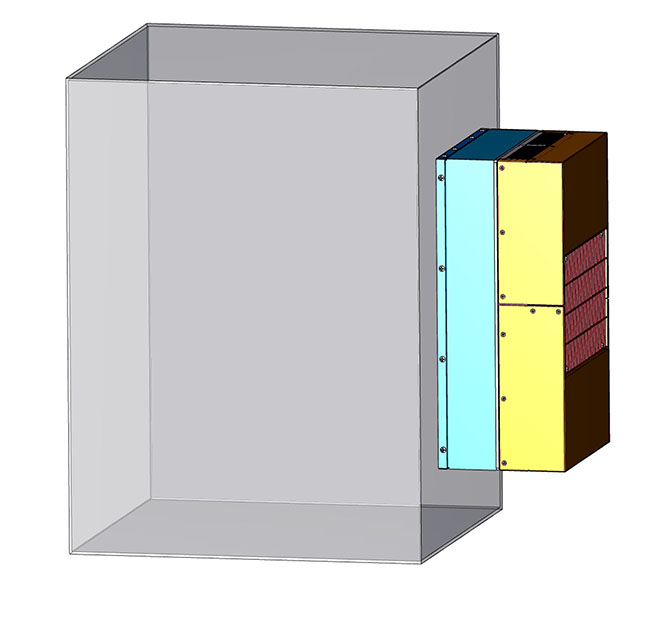

A big benefit of the FHP-2250 is its flush-mounted design. Since there is not intrusion into the enclosure, equipment is not disturbed, and retro fitting is easy. A closed loop system maintains NEMA-4/4X enclosure ratings. The FHP-2250 is available in several configurations:

Model Number Cooling Capacity
BTU/HR
COP Voltge
VAC (VDC)
Current
AMPS
FHP-2250 1220 0.83 120 3.6
FHP-2250 1250 0.85 (24) 15
FHP-2250 1250 0.85 (48) 8
FHP-2250 (High Capacity) 1715 0.39 120 10.8
FHP-2252 (High Capacity) 1875 0.35 240 6.5
FHP-2250 (High Capacity) 1610 0.66 (48) 15

TIGHT TEMPERATURE CONTROL

Tight Temperature Control Within Small Enclosure:

tight temperature control 172-ahp-301ff



A manufacturer of specialty materials required cooling and heating of small enclosures. The system pictured here is used for the mixing of helium and hydrogen with dew point control.

TECA Model AHP-301FFHC is used with a TECA PID temperature controller to regulate the temperature of the enclosure in order to establish the moisture content of the “wet gas”, which is blended with dry gas to fix the dew point by way of the Buck Equation.

The customer is pleased with the results and continues to build more systems using TECA air conditioners and temperature controllers.

the AHP-301FF series is now replaced by newer model the AHP-401 series.

COOLING LARGER ENCLOSURES

Cooling Larger enclosures Than Ever Before:

cooling larger enclosures

A user of the Model AHP-6250 Solid-State Air Conditioner gives a wonderful example of the benefit of TECA’s newly introduced line of high-capacity thermoelectric air conditioners.

Designed to cool larger enclosures than was previously practical with thermoelectric technology, the AHP-6250 is one of the largest models in this group. For example, the enclosure pictured here is about 8 x 6 x 3 feet. The customer is able to achieve large enclosure cooling with a single thermoelectric air conditioner. Thermoelectric cooling is reliable and maintenance free.

TECA’s new high-capacity line has some thoughtful design features, as seen pictured here on the installed AHP-6250. The cold side (internal to enclosure) has a low profile, which translates into less intrusion into the enclosure, giving the user more room for whatever the enclosure is meant to hold. The robust mounting flange, gasket and hardware and centrally located power input contribute to user-friendly installation. Finally, high air-flow fans and high fin-density heat sinks on the cold side maximize performance and minimize condensation. An integral condensate removal system absorbs condensation and transports it to the hot side, where it gets evaporated into the ambient.

COOLING MEDICINE IN TRANSIT

Cooling Medicine In Transit:

cooling medicine cooling medicine
cooling medicine cooling medicine



A customer designs and installs custom systems for public safety vehicles. TECA’s AHP-1800-Series Air Conditioner was the perfect fit for keeping medicine cool in transport and in the field. With multiple input voltage and environment configurations available, the customer will be using more TECA air conditioners in other vehicles.

The tight mounting space shown in these photos illustrates the value of thermoelectric air conditioners. There are no filters to change, no chemical coolants and there are no moving parts except the fans. The customer can expect years upon years of service from this unit, virtually maintenance free!

COOLING GLOVE BOXES

Cooling Glove Boxes:

cooling glove boxes cooling glove boxes

cooling glove boxes cooling glove boxes



A customer manufactures a range of glove box systems for atmosphere control applications in clinical and industrial environments. TECA air conditioners are a vital component on a variety of the glove box models that this customer produces. Standard and customized versions of TECA air conditioners from the AHP-1800 Series are used to control the glove box temperature to below ambient.

Clinical applications primarily revolve around cell and bacterial studies within cancer research, bio-fuels studies, sleep apnea, anaerobic microbiology research and clinical applications etc.

Industrial applications include product weighing or assembly with humidity and temperature maintenance.

ROBOTICS

Robotics Application:

robotics

An industrial plant uses robots in its juicing and bottling process. The robots continuously overheat and shut off. The environment is dirty and 240 VAC is the only available input voltage.

TECA’s AHP-1801X Air Conditioner offers dual voltage capability and a rugged hot side fan that can handle NEMA-4X/Harsh Environment and corrosive environments. The customer is able to use the built-in temperature controller to keep his robots at a cool 25 °C.

LARGE LCD SCREENS

Large LCD Screens:

large LCD screens
large LCD screens
large LCD screens
large LCD screens



Specializing primarily in the food and beverage processing industries, one of our longtime customers uses TECA air conditioners in several applications. These include cooling or heating LCD screens, desktop computers, thin clients, and KVM kiosks. The locations of these applications are indoors, outdoors, in cold rooms and baking areas.

TECA’s comprehensive line of air conditioners fit the bills. We offer each model in different configurations according to the customer’s need regarding input voltage, mounting and application environment.
