Radar Rack Cooling

Radar Rack Cooling:

TECA Model AHP-2259XEHC enclosure cooler is being used to cool data racks on a radar system for military use. The AHP-2259-Series can be powered from 90-264 VAC. The universal input feature makes for easy ‘plug and play’ use in various global locations. Ideal for outdoor applications, power efficiency is increased by as much as 10% in higher ambient temperatures. The AHP-2259-Series can be configured to boost cooling performance or power efficiency, depending on the goals of the end user. Also notable is TECA’s exclusive ECO Mode temperature control feature. This passive cooling feature significantly reduces the need for active cooling, and thus reduces amp draw and the overall cost of ownership.

Please click here to view product specifications and email us if we can be of assistance!

Power Efficiency in a Marine Environment

Control Cabinet Cooling:

An engineer, tasked with upgrading a dozen control cabinets on sea-faring vessels, contacted TECA for advice. Although the cooling need was not large, there were many other challenges to the project. TECA’s customer needed a truly robust cooler; something that could be exposed to vibrations, high ambient temperatures of 60degC, and salt spray from the ocean. Furthermore, power efficiency was a must. TECA’s thermoelectric coolers have the highest power efficiency ratings in the industry. TECA Model AHP-590XMHC was able to meet every single requirement.

Control Cabinet Cooling TECA Model AHP-590XMHCLike all TECA “XM” units, the AHP-590XMHC has military-grade fans on both the internal and external sides. Providing protection against salt spray (Mil-Std 810 Corrosion), TECA’s “XM” units also have full protection from exposure to shock and vibration. TECA’s unique ECO-Mode temperature controller feature limits the amount of time the cooler needs to be actively cooling. Utilizing passive cooling in lower demand times draws 95% less current. During high demand times, the active cooling function of the AHP-590XMHC draws 32% less current than its closest competitor on the market.

TECA Model AHP-590XMHC

Contact TECA today for friendly & knowledgeable guidance. We look forward to helping your project succeed! Ph: 773-342-4900 E: teca@thermoelectric.com

sea-faring vessels  marine environment

Bill Pay Terminals, Kiosks

Kiosk cooling:

TECA Model AHP-451XE Peltier coolers are protecting over a dozen customized bill-pay kiosks. This example illustrates the power of TECA’s smaller air conditioner models. With just over a 100 Watts of cooling power, the AHP-451XE is meeting the thermal requirements of this fairly large (over 4’ tall) kiosk. Housing heat sensitive equipment including computing core, printer, imager, and a 15” LCD touchscreen, this kiosk is exposed to high ambient temperatures as well.

bill pay terminals bill-pay kiosk cooling kiosk

Read more

Protecting Investments with Thermoelectric Cooling

?TECA coolers save automated sorting equipment from overheat failure:

TECA Model AHP-1202XEHC is out in the automation field by the hundreds, reliably cooling sorting equipment. Easily one of TECA’s most popular legacy products, the AHP-1202XEHC is a great design with a lot to offer. Maintaining NEMA-4/4X enclosures in high ambient conditions and in tough, industrial settings, the AHP-1202XEHC is yet an affordable solution. In the example shown here, our customer chose to buy from TECA for a long-term project, supporting recycling centers with automated sorting machinery. The sorting system is state of the art, using new technology which requires thermal management.

Thermoelectric Cooling TECA coolers cooling sorting equipment

Read more

Satellite Communication

Satellite Communication – Long Service Life:

A testament to TECA quality and reliability, this image shows a 130 foot radio telescope at a research observatory. The red arrow indicates the location of the the TECA air conditioner. TECA’s AHP-1200 is installed there to control the temperature of a 2′ x 2′ x 4′ insulated electronics box . The AHP-1200 runs continuously, 24/7, to control the internal temperature to about +25C. The ambient temperatures range between -10C to +40C.

Satellite Communication

Read more

Wastewater Treatment Plant

Wastewater Treatment Plant:

Our customer operates a wastewater treatment plant for a large municipal sanitation district. Operating some of the plant’s equipment is a large-process industrial air compressor. The air compressor’s controls are housed in an outdoor cabinet. Taking advantage of TECA’s NEMA-4/4X, flush-mounted design, the customer has TECA Model FHP-1501XE mounted to the control cabinet. When ambient temperatures rise, the FHP-1501XE keeps the heat-sensitive controls cool while maintaining the cabinet’s NEMA-4 rating. The flush mount design is convenient for the end user because the cabinet’s contents do not need to be disturbed or rearranged to accommodate the air conditioner.

Read more

Environmental Chamber For Testing Asphalt

How Strong is That Asphalt?

TECA’s thermoelectric air conditioners are often used in industrial settings to keep control equipment cool. This application, however, shows another side of TECA’s enclosure coolers. Used in research laboratories across the country, TECA enclosure coolers have cooled incubation chambers, sensitive test equipment, glove boxes, and the like. Here is another example of a TECA thermoelectric air conditioner being used in the lab:

Read more

Cooling Input/Output Racks

Drywall Manufacturing: Cooling Input/Output Racks

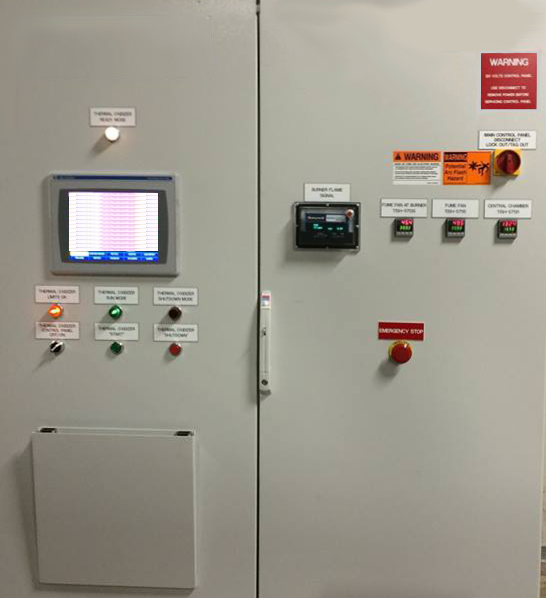

Several FHP-2250 Air Conditioners are used by our client to keep I/O racks within the operating temperature during peak ambient temperatures. Located in a dusty, high ambient industrial environment, our client originally tried cooling the control cabinets with fans and filters. However, with the ambient temperatures reaching 120F, the I/O racks faulted. Our client has half a dozen gas burning drying chambers, with a TECA FHP-2250 enclosure cooler mounted to each chamber’s control cabinet. The TECA solution is, in our client’s words “best for high ambient, low maintenance and dusty conditions to control interior temperature of these cabinets”.

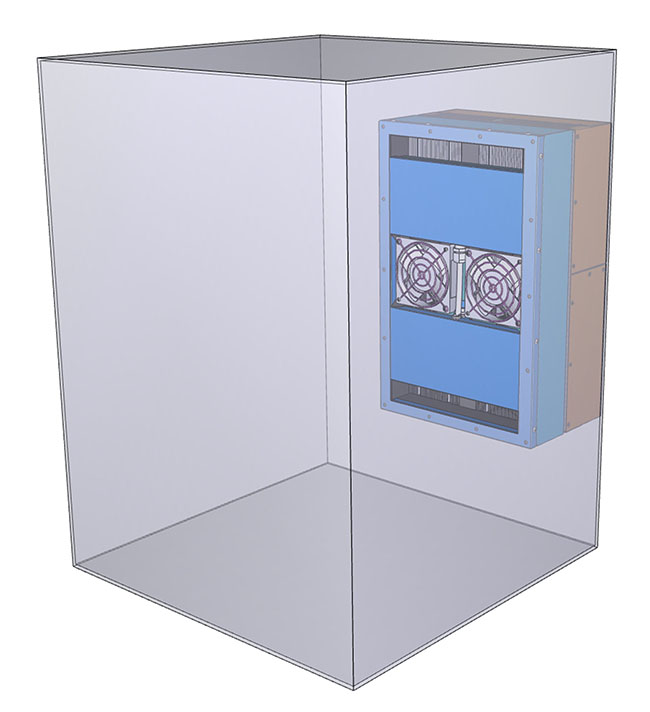

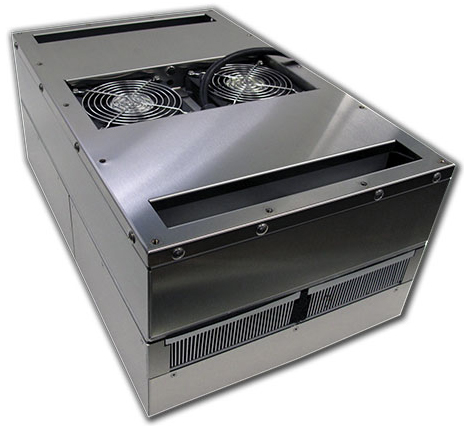

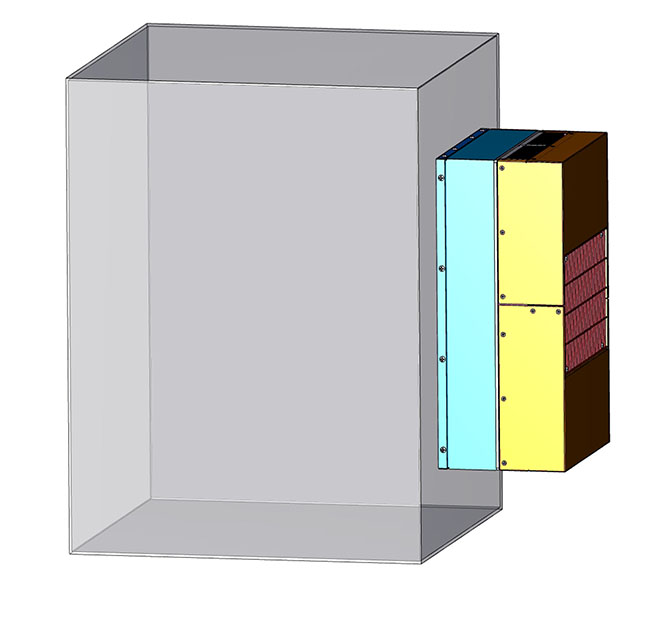

A big benefit of the FHP-2250 is its flush-mounted design. Since there is not intrusion into the enclosure, equipment is not disturbed, and retro fitting is easy. A closed loop system maintains NEMA-4/4X enclosure ratings. The FHP-2250 is available in several configurations:

Model Number Cooling Capacity
BTU/HR
COP Voltge
VAC (VDC)
Current
AMPS
FHP-2250 1220 0.83 120 3.6
FHP-2250 1250 0.85 (24) 15
FHP-2250 1250 0.85 (48) 8
FHP-2250 (High Capacity) 1715 0.39 120 10.8
FHP-2252 (High Capacity) 1875 0.35 240 6.5
FHP-2250 (High Capacity) 1610 0.66 (48) 15

Cooling a NEMA-4 Enclosure with Precision

Cooling a NEMA-4 Enclosure with Precision:

Cooling a NEMA-4 Enclosure with Precision   Cooling Enclosure
A flow testing facility required precise heating and cooling of a NEMA-4 enclosure in an outdoor application. The customer’s NEMA-4 instrument box houses very sensitive transducers and data acquisition equipment.

TECA Model AHP-1200XEHC paired with the TC-3400 remote temperature controller protects the enclosure’s contents from extreme temperatures in the ambient. The customer can monitor and set the controller without opening the NEMA-4 enclosure. Custom programming achieves exact set points as specified by the customer. The sealed, industrial grade external fan allows for wash down of the enclosure and exposure to the outdoor environment, all while maintaining a closed loop system.

ATM KIOSK COOLING

ATM Kiosk Cooling:

TECA Model AHP-1200FFHC was chosen by our customer to provide thermal management to an ATM kiosk.

ATM Kiosk cooling   ATM Kiosk cooler

Electronics components often require cooling AND heating. The TECA cooler provides both heating and cooling to the kiosk. This ATM kiosk will be installed in dozens of locations with the TECA air conditioner, AHP-1200FFHC.

Thermoelectric technology is a reliable and low maintenance way to protect electronics. Utilizing the Peltier effect, TECA enclosure coolers (and heaters) do not require coolant, chemicals, compressor or filter.
