Custom Taps for a Cold Plate

Cold Plate With Custom Tap Pattern:

AHP-1200CPV with custom tap pattern

TECA’s AHP-1200CPV Cold/Hot Plate is modified with a customer-specified tap pattern. This allows the end user to attach power devices directly to the plate, for thermal testing. The end user manufactures components for critical aerospace environments. Reliability is a top priority. One of the benefits of thermoelectric cooling technology is the low maintenance requirements and long service life. With the only moving part being the fan, the AHP-1200CPV can be expected to perform reliably for many years. Convenient features include a built in temperature controller, communications software, and the ability to switch from internal to external sensing. Please contact TECA for a quote on the AHP-1200CPV, or to discuss how we can modify it to meet your unique requirements.

teca@thermoelectric.com

BATTERY COOLING

R & D Battery Cooling:

battery cooling

In this example, the customer is using TECA’s AHP-1800CPV to keep a 60 pound lithium ion battery cool during R&D testing. This saves the customer the trouble of using a plate with pumped coolant to cool the battery, which was the original method.

The customer reports that upgrading to the TECA AHP-1800CPV “makes testing much easier”.

The AHP-1800CPV is the largest thermoelectric cold plate on the market with a plate surface area of 12.80 x 13.30 inches.  The large surface area and robust cooling power were ideal for this application.

FIBER OPTICS

Fiber Optics:

fiber optics

The customer makes fiber optics and related components and subsystems, they use an AHP-1200CPV cold plate for testing components.

They are using it to run temperature test on them, they set the temperature, and it goes to temperature and sits there, heating or cooling.

“It works well”.  Before they were cobbling together home brew solutions with a heater here, a circuit and a fan there but it’s nice to have a system that does it all.

COOLING ASPHALT SAMPLES

Cooling Asphalt Samples:

cooling asphalt samples

An oil refinery runs tests on asphalt samples at different temperatures.

TECA Model AHP-301CPV Cold Plate is currently being used during the course of the customer’s testing.

The customer says, “We have used this unit at different temperatures, and it has performed well. Thank you for your follow-up on the performance of this device.”

HIGH SPEED CRYSTAL OSCILLATORS

High Speed Crystal Oscillators:

High Speed Crystal Oscillators

The customer makes high performance crystal oscillators and atomic clocks for satellites and laboratories and they needed something for temperature control and stabilization.

They found TECA and the AHP-301CPV, tried one and say it is “working fantastic”. Well enough to order more for production, quality and engineering tests. They use them to maintain a stable temperature of the oscillator which in turn provides a stable frequency.

COOLING MOUNTING WAX

Cooling Mounting Wax:

cooling mounting wax cooling mounting wax



A product design engineer at a medical device company needed a way to cool wax blocks holding film. The wax is printed directly onto the customer’s aluminum tray. Before discovering TECA products, the customer was placing the aluminum tray in a refrigerator and mechanically removing the wax by scraping it off with a metal blade.

TECA’s AHP-1200CP Cold Plate is a better solution. The customer is happy to have found an affordable cold plate to dedicate to his cooling task.

Please view the video provided by our customer to see how quickly and easily the wax is now removed (no more scraping!).

CHEMICAL WASTE TRANSPORT

Chemical Waste Transport:

chemical waste transport

Here’s an application that our engineering crew would love to put into greater use if they could figure out where and how. A specialty gas company called. They wanted to transfer toxic and corrosive liquids from big to small containers for lab use. The process had been taking several minutes with too much wasted product.

They knew because of the conditions a natural head pressure in the big container that they could use a cold plate to cool at the receiving vessel (Ø 1.5″ x 12″ bottle) to create a driving force which moves the fluid.

We didn’t go into the physics of this, we trusted what the customer said and worked with them. When they tried an AHP-1200CP it was fantastic. It turned 4 minutes and a lot of waste into no waste and 40 seconds.

PERFORMANCE TESTING

Performance Testing:

performance testing performance testing



Customer needed to test low-temperature performance of inertial measuring devices.  In this application of low temperature thermoelectric cooling; the user is testing inertial measurement devices over a temperature range.

The devices as well as the TECA cascaded cooling assembly are subjected to various rotational and acceleration stimuli while device temperature is controlled.  The custom thermoelectric cold plate cascaded (Peltier cascade) was built up from a standard Model AHP-301CP cold plate.

The finished test fixture was able to function with a maximum rotation rate of 1700° per second and 50 g acceleration.  The rotation is evident in the photo. By using a standard product as the basis for the cooling system, higher costs associated with a custom solution were avoided.

COOLING WAFER

Cooling Wafer:

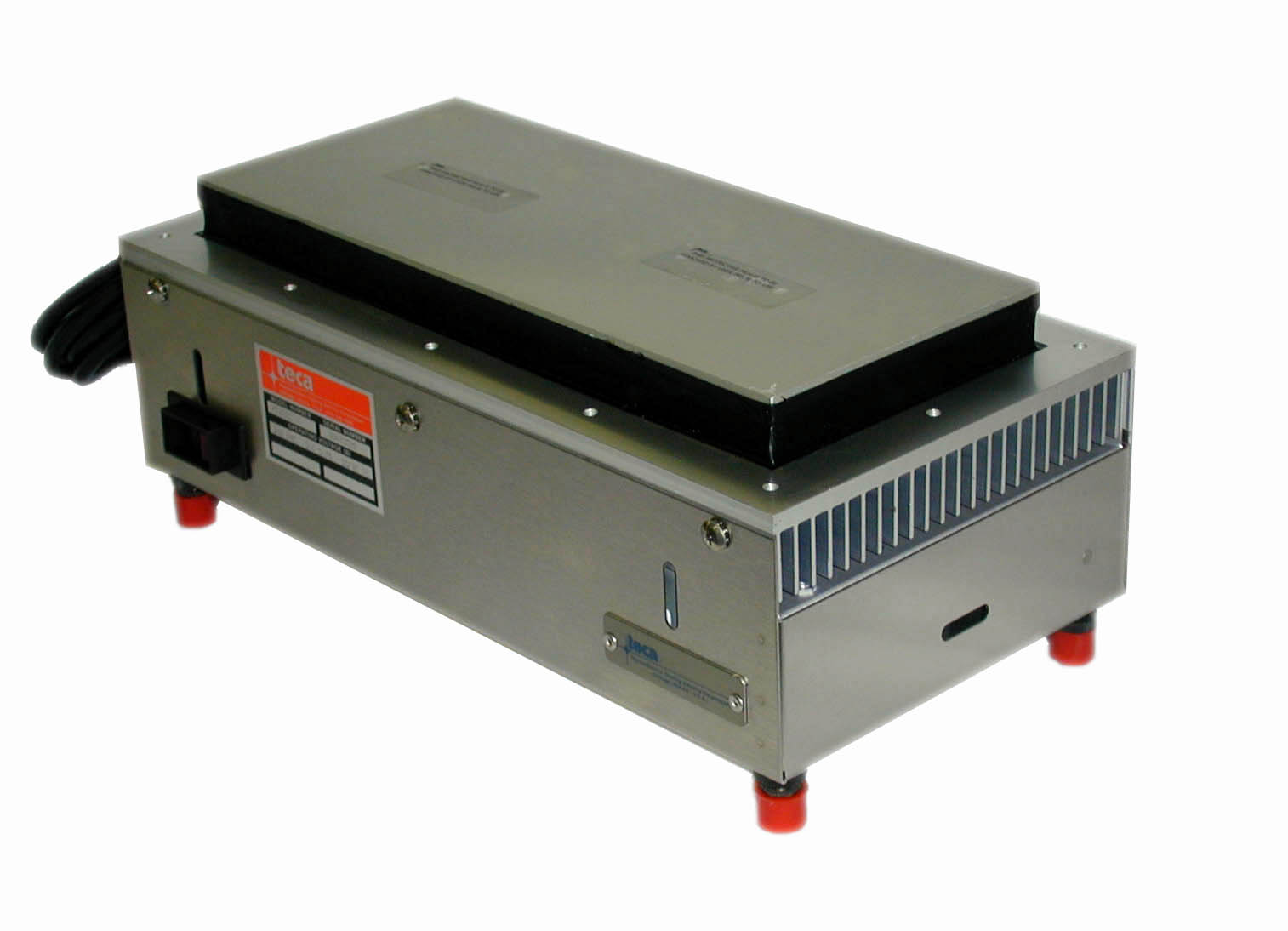

The adjustable feet on this AHP-1200CP Peltier cooling plate (thermoelectric cooling plate) made life easier on the factory floor.

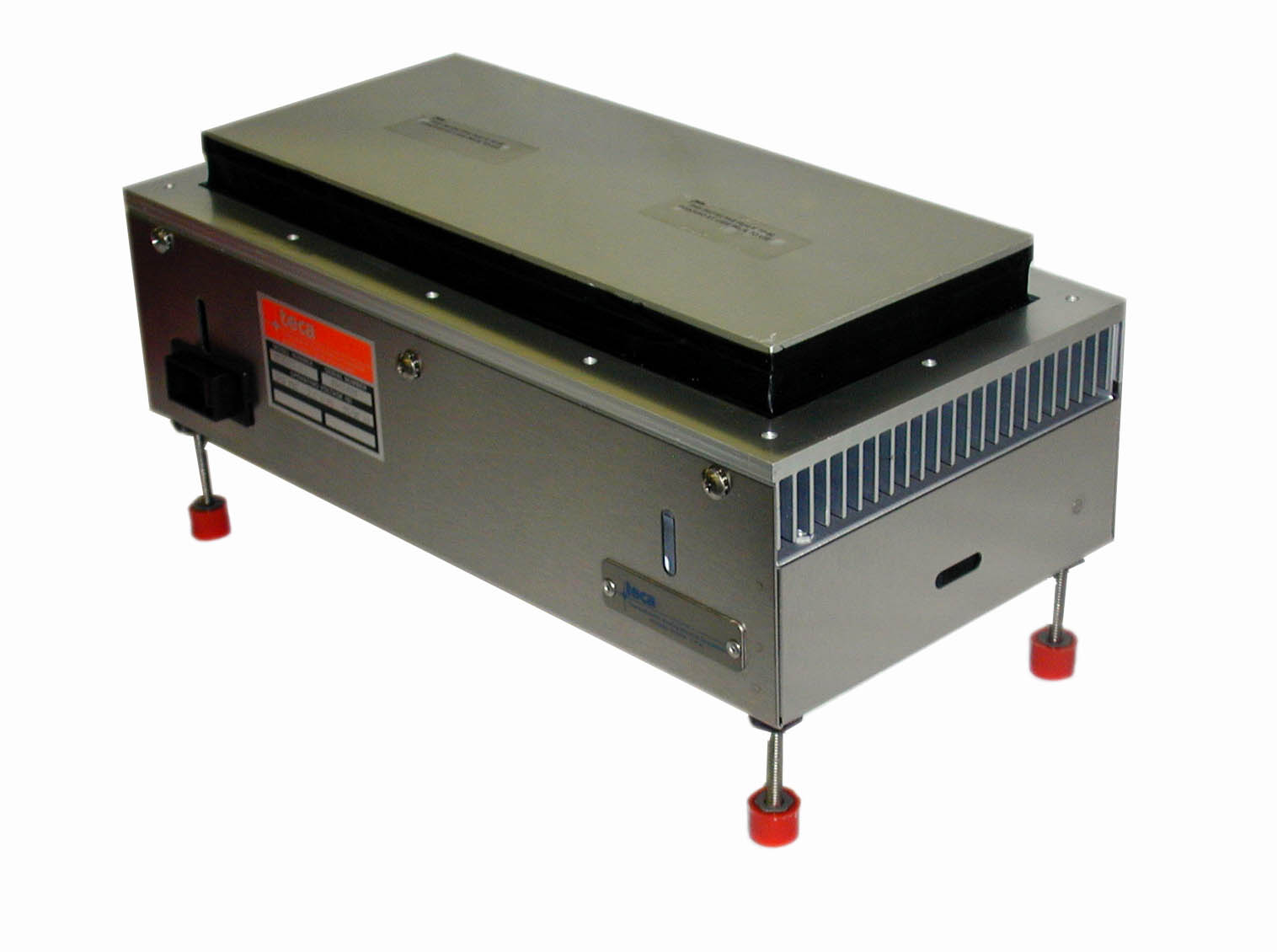

Customer wafers needed cooling at the end of processing and the feet brought the cold plate up to the perfect height to match the production mechanisms. Just a little option that TECA is ready to provide to make the products we build work for you.

INDUSTRIAL MATERIAL

Industrial Material:

industrial material

In this example of an AHP-1200CP application a box surrounds the cold plate area. Materials are set directly upon the cold plate and the lid is closed. The material is cooled and temperature controlled without the large air cooling refrigerator.
