Low Temperature Cascade For Use With Thermoelectric Cold Plate
Description: Low temperature cascade for use with AHP-1200CAS or LHP-1200CAS
Voltage: 12 VDC, 24 VDC
Current: 2.5 AMPS, 4.6 AMPS
Operating Ambient: 0/+50 °C
Includes:
• Mounting hardware
• Power input leads
• Thermally conductive substrate pad
• Precision machined cold plate surfaces
• Embedded RTD sensor and connector for use with AHP-1200CAS or LHP-1200CAS- Click on the part numbers to request a quick quote:
PART NUMBER COLD PLATE SIZE
INCHESVOLTAGE
VDCCURRENT
AMPSMAX DELTA T
@ 25 C AMBIENTCOLD PLATE

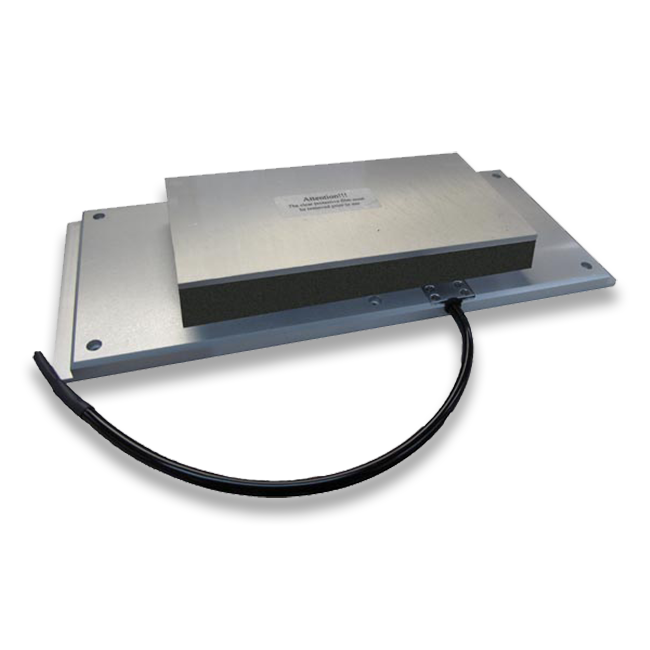

TEMP. RANGE CCCP-22

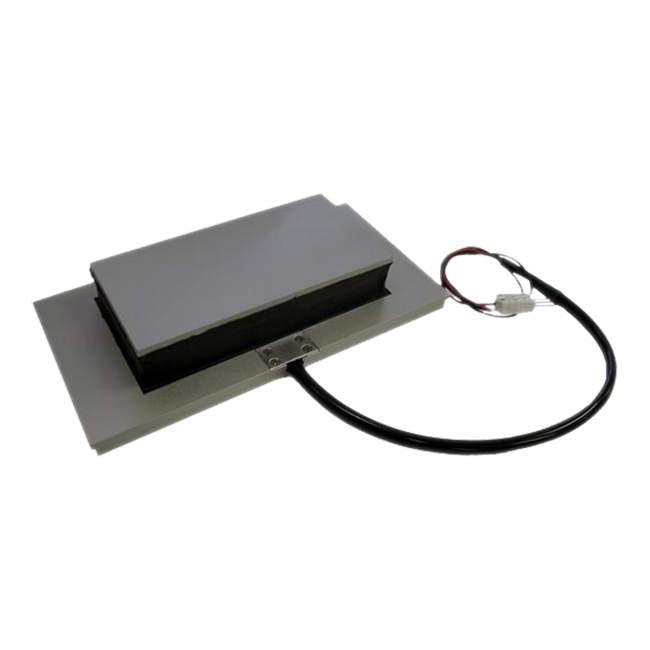

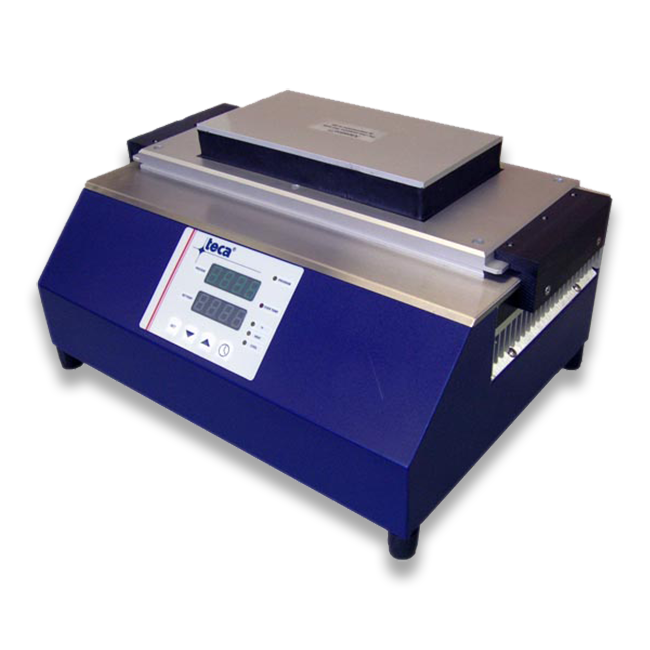

8.8 x 4.5 24 4.6 -59 -30 / +90 CCP-21

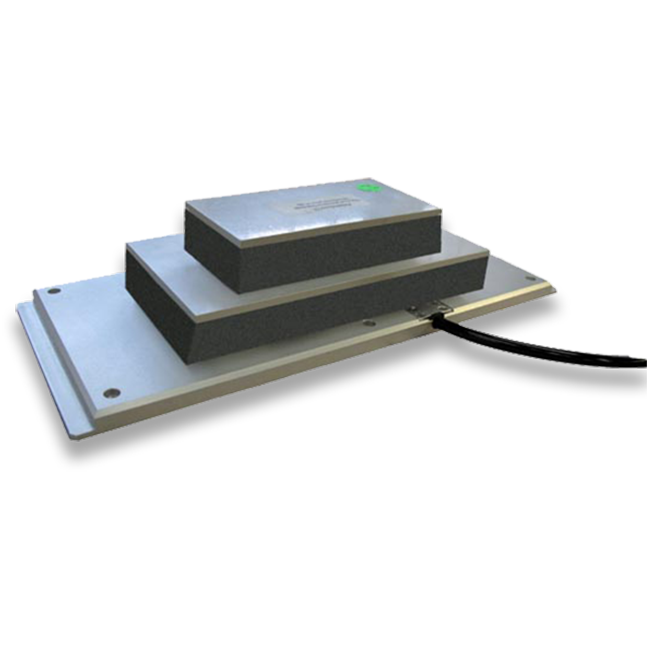

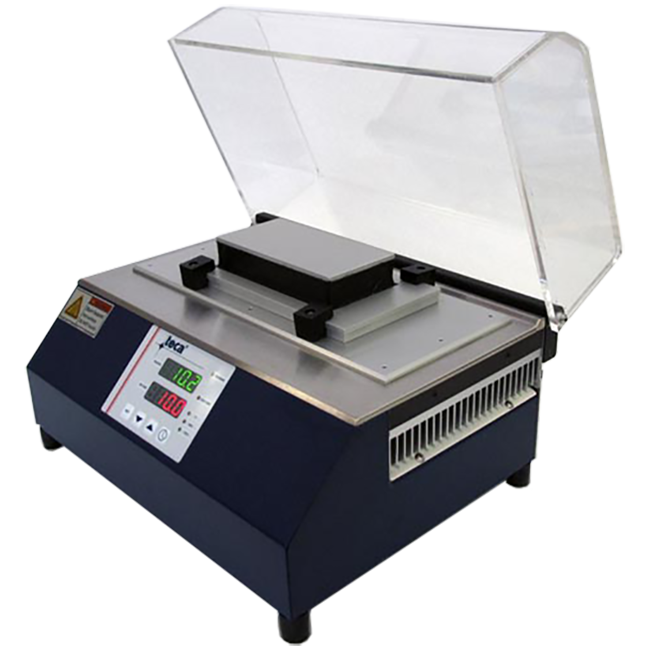

6 X 3 24 2.5 -68 -40 / +90 CCP-31

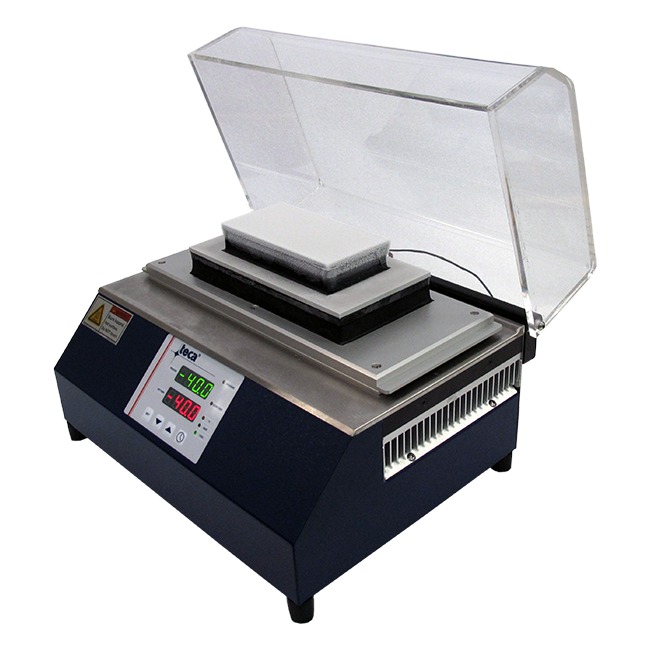

6 X 3 24 & 12 4.6 & 2.5 -76 -50 / +90 CCP-22H
8.8 x 4.5 24 4.6 -59 -30 / +150 CCP-21H
6 X 3 24 2.5 -68 -40 / +150 CCP-31H
6 X 3 24 & 12 4.6 & 2.5 -76 -50 / +150 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Features:
One thermoelectric stacked on top of another with the goal of increasing the maximum temperature differential is a “cascade”. These cascade assemblies are made to be mounted to either the air cooled model AHP-1200CAS Part # 9-35KB-1-CAS or the liquid cooled model LHP-1200CAS Part # 3-35KB-1-CAS cold plates to create 2 and 3 stage cascades.
For plate temperature above 90 °C use with 9-35KB-6-CAS or 3-35KB-6-CAS.
The performance curves shown are actual tests run under very well insulated conditions.
The performance will vary with the degree of insulation, with the amount of the active load and with the ambient temperature.
Resources:
- Click to download:
