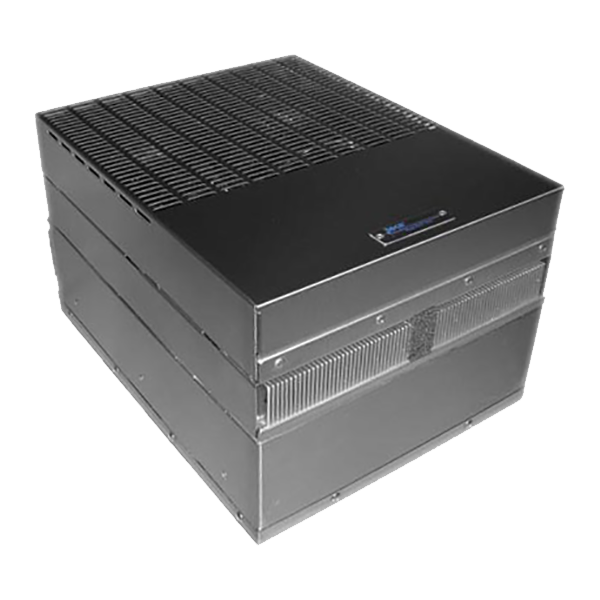

FHP-1501 Series

Flush Mount Thermoelectric Air Conditioner

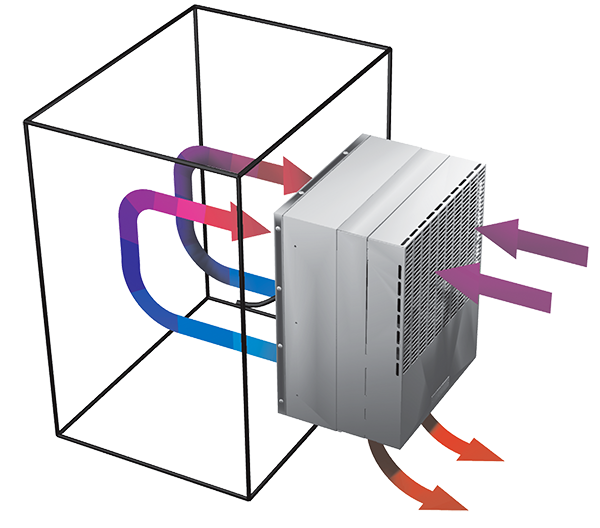

  • Mounting Style: Through Mounted
    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):
    950 BTU/HR
    Cooling (Din 3168): 278 WATTS
    Cooling COP (at L35 L35): 0.59 (0.64 DC version)

    Includes:
    • Integral power supply
    • Mounting gasket and hardware
    • Power input cord
    • Condensate control system

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-15017-2181-0-000
    Cool onlyTC-6F120/2408 / 5NEMA-12, IP 52
    FHP-15017-21F1-0-000
    Cool onlyTC-1F120/2408 / 5NEMA-12, IP 52
    FHP-15017-2151-0-000
    Cool only3-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    FHP-1501HC7-2131-1-000
    Heat/CoolTC-3F120/2408 / 5NEMA-12, IP 52
    FHP-1501HC7-2151-1-000
    Heat/Cool3-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    FHP-1501XE7-2181-4-000
    Cool onlyTC-6F120/2408 / 5NEMA-4, IP 56
    FHP-1501XE7-21F1-4-000
    Cool onlyTC-1F120/2408 / 5NEMA-4, IP 56
    FHP-1501XE7-2151-4-000
    Cool only3-32 VDC external signal120/2408 / 5NEMA-4, IP 56
    FHP-1501XE7-21F5-4-000
    Cool onlyTC-1F120/24018NEMA-4, IP 56
    FHP-1501XEHC7-2131-5-000
    Heat/CoolTC-3F120/2408 / 5NEMA-4, IP 56
    FHP-1501XEHC7-2151-5-000
    Heat/Cool3-32 VDC external signal120/2408 / 5NEMA-4, IP 56
    FHP-15017-2185-0-000
    Cool onlyTC-6F(24)18NEMA-12, IP 52
    FHP-15017-21F5-0-000
    Cool onlyTC-1F(24)18NEMA-12, IP 52
    FHP-15017-2155-0-000
    Cool only3-32 VDC external signal(24)18NEMA-12, IP 52
    FHP-1501HC7-2135-1-000
    Heat/CoolTC-3F(24)18NEMA-12, IP 52
    FHP-1501HC7-21I5-1-000
    Heat/CoolTC-7F(24)18NEMA-12, IP 52
    FHP-1501HC7-2155-1-000
    Heat/Cool3-32 VDC external signal(24)18NEMA-12, IP 52
    FHP-1501HC7-21H5-1-000
    Heat/CoolTC-4600(24)18NEMA-12, IP 52
    FHP-1501XE7-2185-4-000
    Cool onlyTC-6F(24)18NEMA-4, IP 56
    FHP-1501XE7-2155-4-000
    Cool only3-32 VDC external signal(24)18NEMA-4, IP 56
    FHP-1501XEHC7-2135-5-000
    Heat/CoolTC-3F(24)18NEMA-4, IP 56
    FHP-1501XEHC7-21I5-5-000
    Heat/CoolTC-7F(24)18NEMA-4, IP 56
    FHP-1501XEHC7-2155-5-000
    Heat/Cool3-32 VDC external signal(24)18NEMA-4, IP 56
    FHP-1501XEHC7-21H5-5-000
    Heat/CoolTC-4600(24)18NEMA-4, IP 56
    FHP-15017-2186-0-000
    Cool onlyTC-6F(48)9NEMA-12, IP 52
    FHP-15017-21F6-0-000
    Cool onlyTC-1F(48)9NEMA-12, IP 52
    FHP-15017-2156-0-000
    Cool only3-32 VDC external signal(48)9NEMA-12, IP 52
    FHP-1501HC7-2136-1-000
    Heat/CoolTC-3F(48)9NEMA-12, IP 52
    FHP-1501HC7-21I6-1-000
    Heat/CoolTC-7F(48)9NEMA-12, IP 52
    FHP-1501HC7-2156-1-000
    Heat/Cool3-32 VDC external signal(48)9NEMA-12, IP 52
    FHP-1501XE7-2186-4-000
    Cool onlyTC-6F(48)9NEMA-4, IP 56
    FHP-1501XE7-2156-4-000
    Cool only3-32 VDC external signal(48)9NEMA-4, IP 56
    FHP-1501XEHC7-2136-5-000
    Heat/CoolTC-3F(48)9NEMA-4, IP 56
    FHP-1501XEHC7-21I6-5-000
    Heat/CoolTC-7F(48)9NEMA-4, IP 56
    FHP-1501XEHC7-2156-5-000
    Heat/Cool3-32 VDC external signal(48)9NEMA-4, IP 56
  • Click to download:

  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• Externally mounted (no intrusion)
• Mounts in multi-unit array for incremental capacity
• Mounts in any orientation (condensate control may not work properly in all orientations)
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Dual voltage (120/240 VAC)
• Custom finishes
• Weight 55 LBS.
• Agency approvals: ETL Intertek
