TC-3F

Thermostatic Temperature Control

  • Description: Heat/Cool thermostatic temperature controller
    Switching Voltage: 24-280 VAC; 0-100 VDC
    Switching Current: 10 AMPS; 20 AMPS

    Overview:

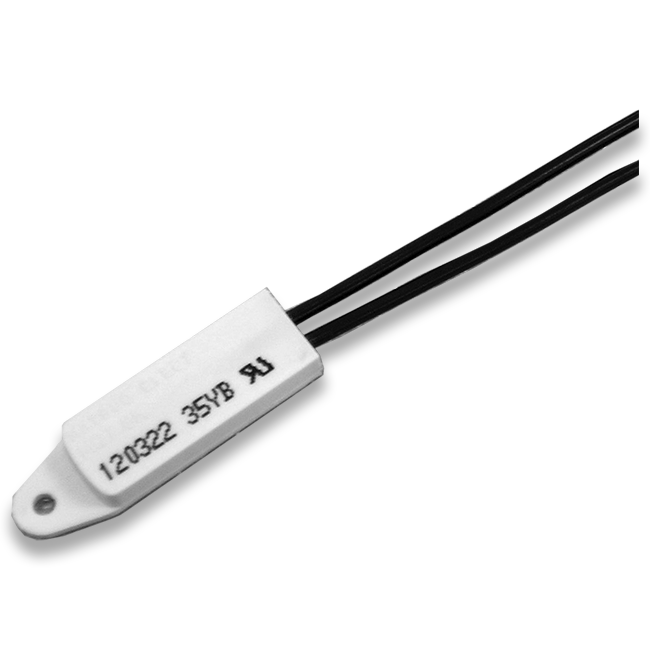

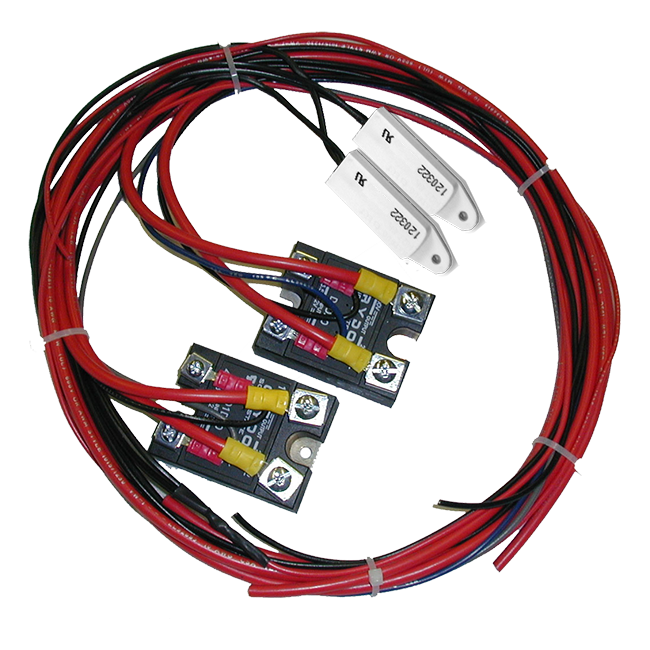

    Model TC-3F heat/cool thermostat is designed using two power temperature switches in conjunction with a solid state relay pack. It contains a single setting each for both heating and cooling.

  • MODEL NUMBERPART NUMBERCOOL MODE
    TEMP. °C    		HEAT MODE
    TEMP. °C    		REST TEMP.
    TYP. °C    		OPERATING
    VOLTAGE    		SWITCHING
    VOLTAGE    		SWITCHING
    CURRENT AMPS
    TC-3F-AC3F-04R-00-000
    		35 +/- 315 +/- 3385-280 VAC24-280 VAC10
    TC-3F-DC3F-44G-00-000
    		35 +/- 315 +/- 333.5-32 VDC0-100 VDC.02-20
    TC-3F-DC*3F-44P-00-000
    		35 +/- 315 +/- 333.5-32 VDC0-100 VDC.02-20

    * Model includes H-Bridge relay pack for air conditioners capable of reverse polarity heating
