TC-6F

Thermostatic Temperature Control

  • Description: Cool only thermostatic temperature controller with three temperature settings
    Switching Voltage: 24-250 VAC; 0-100 VDC
    Switching Current: 10 AMPS; 20 AMP

    Overview:

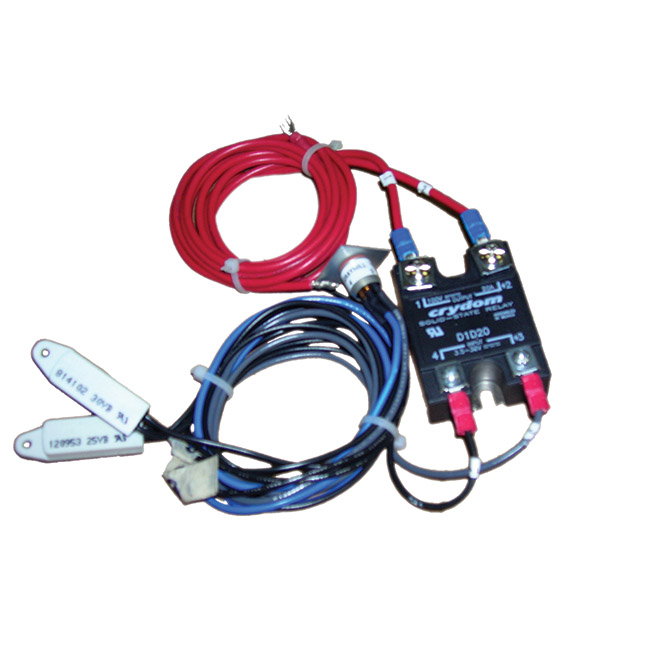

    Model TC-6F cool only thermostat is designed using two power temperature switches in conjunction with a solid state relay pack. A three position rotary switch is provided to adjust temperature settings.

  • Click on the part number to request a quote:
    MODEL NUMBERPART NUMBERT1
    TEMP. °C    		T2
    TEMP. °C    		REST TEMP.
    TYP. °C    		OPERATING
    VOLTAGE    		SWITCHING
    VOLTAGE    		SWITCHING
    CURRENT AMPS
    TC-6F6F-00A-00-000
    		35 +/- 325 +/- 33N/AN/AN/A
    TC-6F-AC6F-03T-00-000
    		35 +/- 325 +/- 3385-250 VAC24-280 VAC10
    TC-6F-DC6F-43D-00-000
    		35 +/- 325 +/- 3312/24 VDC0-100 VDC.02-20
    TC-6F-DC6F-33D-00-000
    		35 +/- 325 +/- 3348 VDC0-100 VDC.02-20
