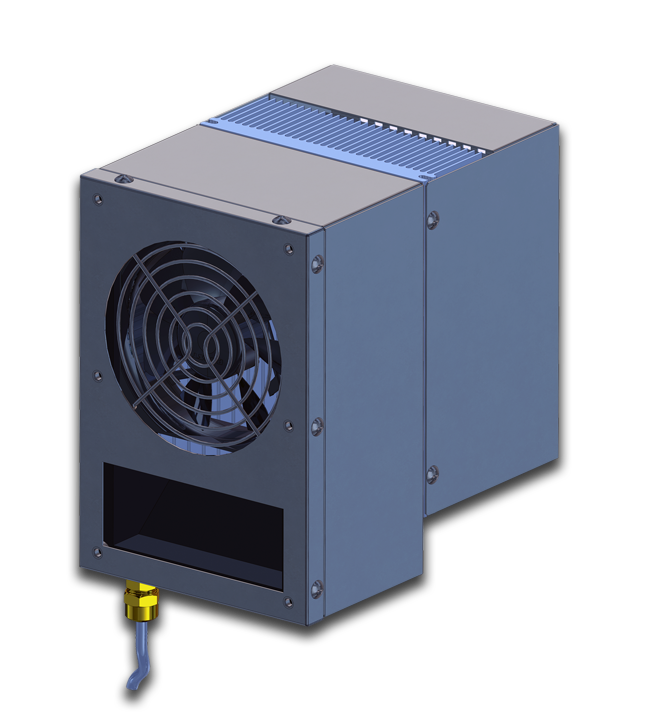

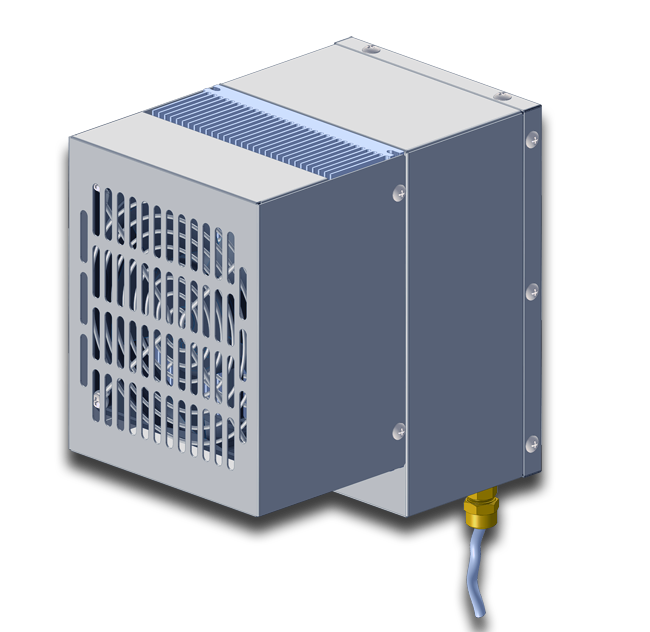

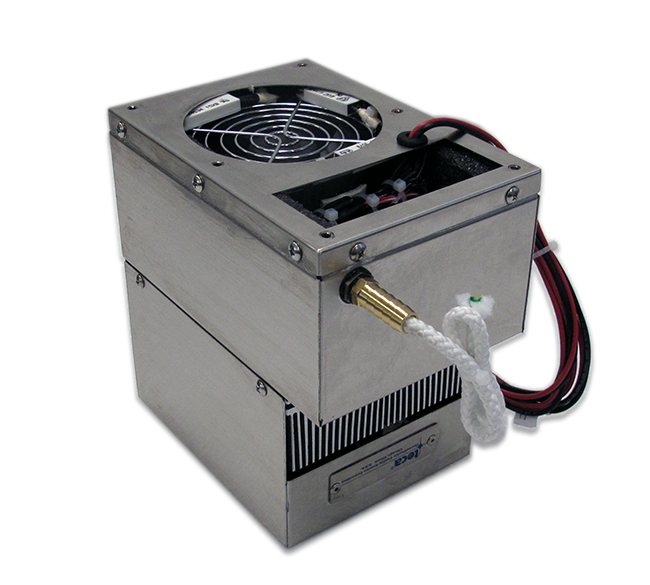

FHP-250 Series

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4, NEMA4X 32 Watts (109 BTU/HR):

TECA’s FHP-250 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-250 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4, and NEMA-4X in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

  • Mounting Style: Flush Mounted

    Voltage: 12 VDC, 24 VDC
    Current: 6 AMPS, 3 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X

    Performance Rating:
    Cooling (Traditional):
    109 BTU/HR
    Cooling (Din 3168): 32 WATTS
    Cooling COP (at L35 L35): 0.44

    Includes:
    • Mounting gasket
    • Mounting hardware
    • Power input leads

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERENVIRONMENTINTEGRAL
    CONTROLLER
    VOLTAGE VDCCURRENT AMPS
    FHP-250FFHC7-L094-1-000 IndoorsNone126
    FHP-250FFHC7-L095-1-000 IndoorsNone243
    FHP-250FF7-L0J4-0-000 IndoorsTC-4F126
    FHP-250FF7-L0J5-0-000 IndoorsTC-4F243
    FHP-250FFHC7-L0I4-1-000 IndoorsTC-7F126
    FHP-250FFHC7-L0I5-1-000 IndoorsTC-7F243
    FHP-250XEHC7-L094-5-000
    OutdoorsNone126
    FHP-250XEHC7-L095-5-000
    OutdoorsNone243
    FHP-250XE7-L0J4-4-000
    OutdoorsTC-4F126
    FHP-250XE7-L0J5-4-000
    OutdoorsTC-4F243
    FHP-250XEHC7-L0I4-5-000
    OutdoorsTC-7F126
    FHP-250XEHC7-L0I5-5-000
    OutdoorsTC-7F243
    FHP-250XHC7-L094-3-000
    Outdoors/MilitaryNone126
    FHP-250XHC7-L095-3-000
    Outdoors/MilitaryNone243
    FHP-250X7-L0J4-2-000
    Outdoors/MilitaryTC-4F126
    FHP-250X7-L0J5-2-000
    Outdoors/MilitaryTC-4F243
    FHP-250XHC7-L0I4-3-000
    Outdoors/MilitaryTC-7F126
    FHP-250XHC7-L0I5-3-000
    Outdoors/MilitaryTC-7F243
  • Click to open PDF performance curves:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    FHP 250&270 8:19 am 04/20/201845.4M

    PDF
    FHP 250&270 8:18 am 04/20/20183.7M

    SLDP
    FHP 250&270 8:19 am 04/20/201815.2M

    STEP
    FHP 250&270 8:19 am 04/20/201820.6M
  • Part NumberDescriptionDrawingData Sheet
    CR-250Brush finished stainless steel coverdwg
    AS150-12Switching power supply
    150 Watts, 12 VDC
    pdf
    AS150-24Switching power supply
    150 Watts, 12 VDC
    pdf

Features:
• Compact (only 7” X 4.8” X 7.2”)
• Includes condensate control system
• Lower vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 7 LBS.
