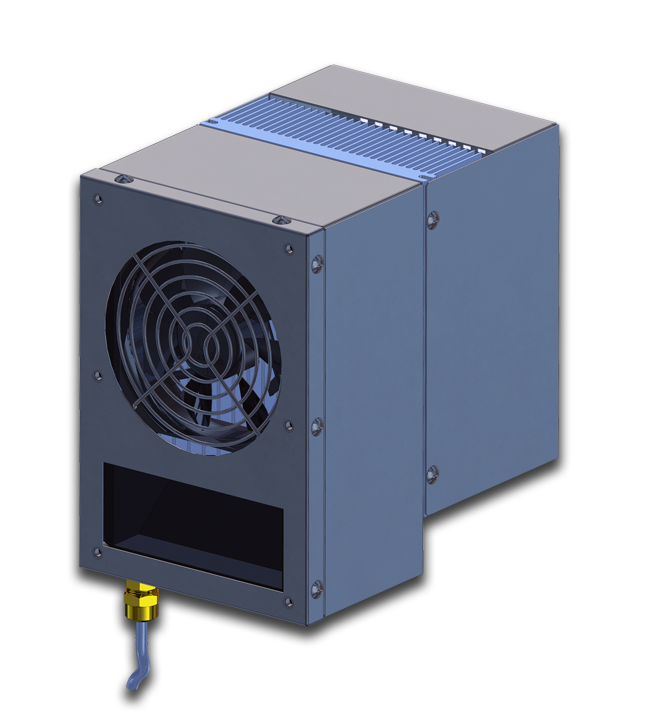

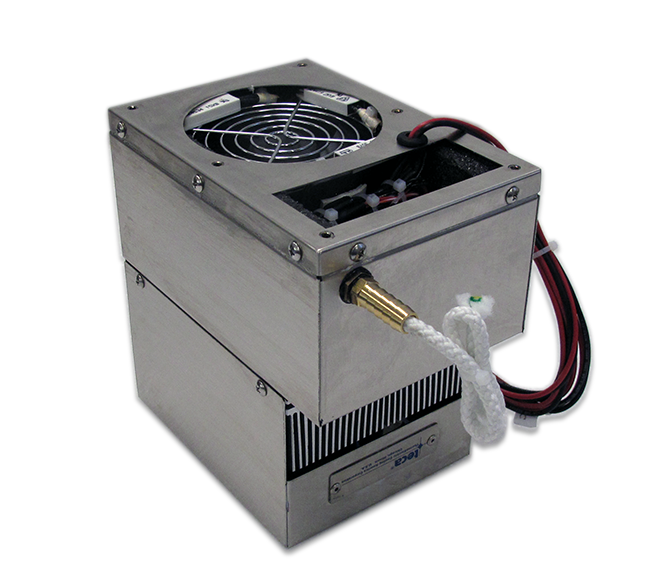

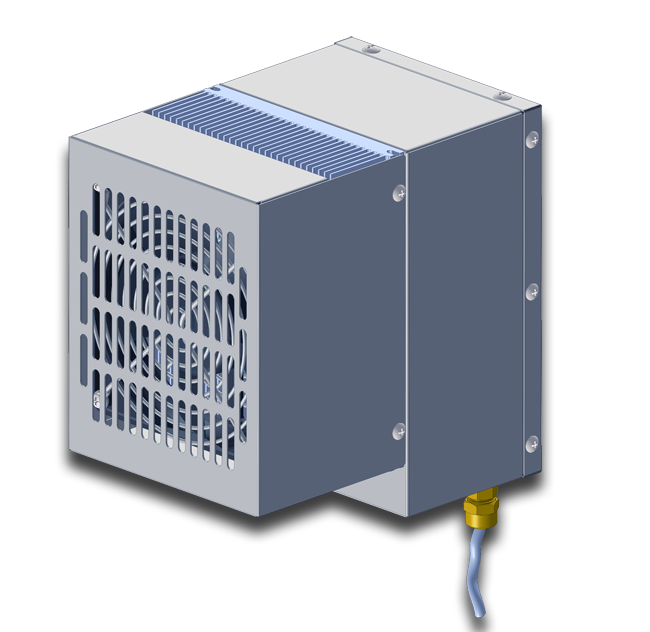

Compact Flush Mount Thermoelectric Air Conditioner
Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment 41 Watts (140 BTU/HR):
TECA’s FHP-270 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-270 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
Mounting Style: Flush Mounted
Voltage: 12 VDC, 24 VDC
Current: 8.3 AMPS, 4.1 AMPS
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: , ,Performance Rating:
Cooling (Traditional): 140 BTU/HR
Cooling (Din 3168): 41 WATTS
Cooling COP (at L35 L35): 0.42Includes:
• Mounting gasket
• Mounting hardware
• Power input leadsController Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER ENVIRONMENT INTEGRAL
CONTROLLERVOLTAGE VDC CURRENT AMPS FHP-270FFHC 7-L094-1-001 Indoors None 12 8.3 FHP-270FFHC 7-L095-1-001 Indoors None 24 4.1 FHP-270FF 7-L0J4-0-001 Indoors TC-4F 12 8.3 FHP-270FF 7-L0J5-0-001 Indoors TC-4F 24 4.1 FHP-270FFHC 7-L0I4-1-001 Indoors TC-7F 12 8.3 FHP-270FFHC 7-L0I5-1-001 Indoors TC-7F 24 4.1 FHP-270XEHC 7-L094-5-001
Outdoors None 12 8.3 FHP-270XEHC 7-L095-5-001
Outdoors None 24 4.1 FHP-270XE 7-L0J4-4-001
Outdoors TC-4F 12 8.3 FHP-270XE 7-L0J5-4-001
Outdoors TC-4F 24 4.1 FHP-270XEHC 7-L0I4-5-001
Outdoors TC-7F 12 8.3 FHP-270XEHC 7-L0I5-5-001
Outdoors TC-7F 24 4.1 FHP-270XHC 7-L094-3-001
Outdoors/Military None 12 8.3 FHP-270XHC 7-L095-3-001
Outdoors/Military None 24 4.1 FHP-270X 7-L0J4-2-001
Outdoors/Military TC-4F 12 8.3 FHP-270X 7-L0J5-2-001
Outdoors/Military TC-4F 24 4.1 FHP-270XHC 7-L0I4-3-001
Outdoors/Military TC-7F 12 8.3 FHP-270XHC 7-L0I5-3-001
Outdoors/Military TC-7F 24 4.1 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Part Number Description Drawing Data Sheet CR-250 Brush finished stainless steel cover
AS150-12 Switching power supply
150 Watts, 12 VDC
AS150-24 Switching power supply
150 Watts, 12 VDCFeatures:
• Compact (only 7” X 4.8” X 7.2”)
• Includes condensate control system
• Lower vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 7 LBS.
