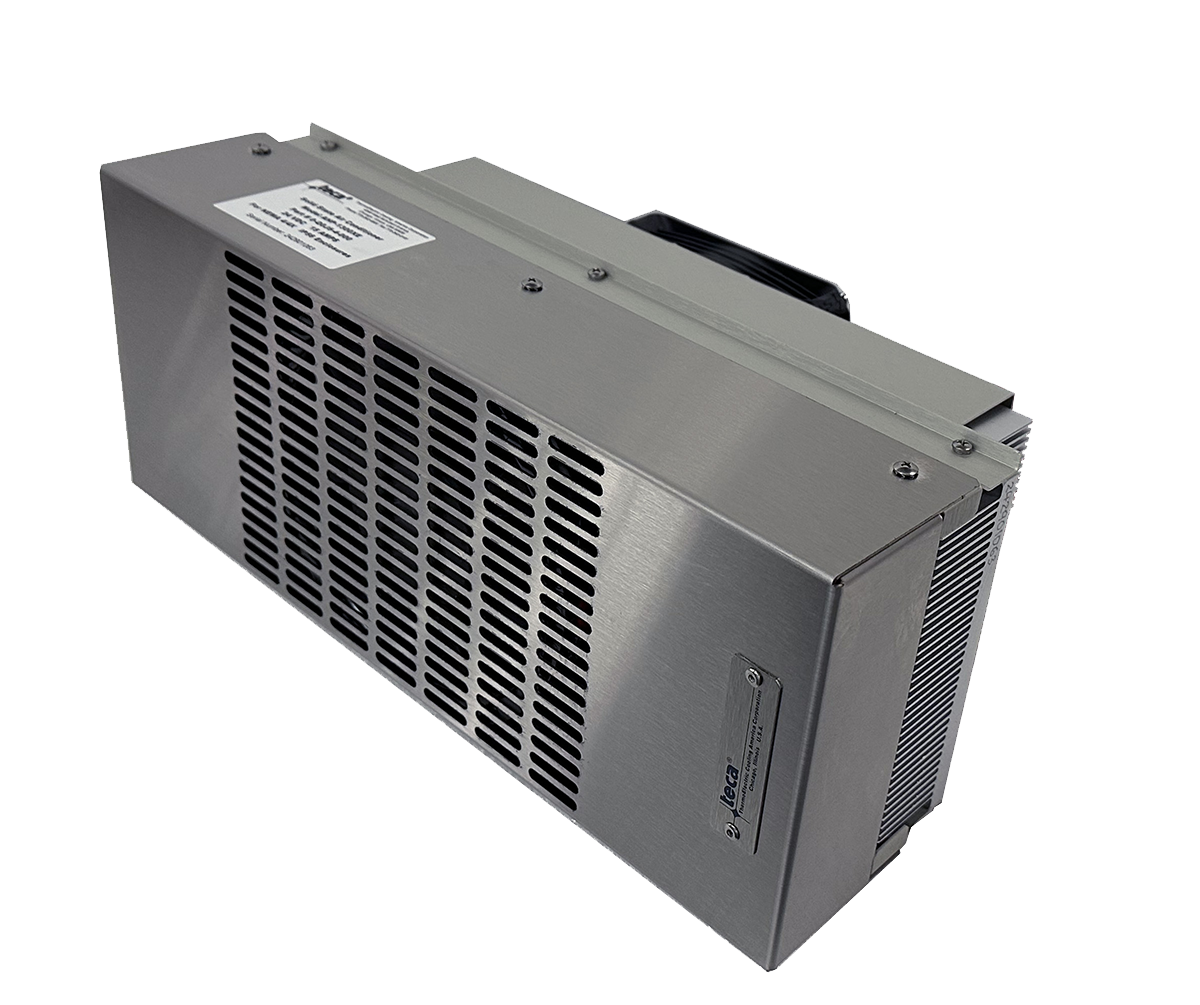

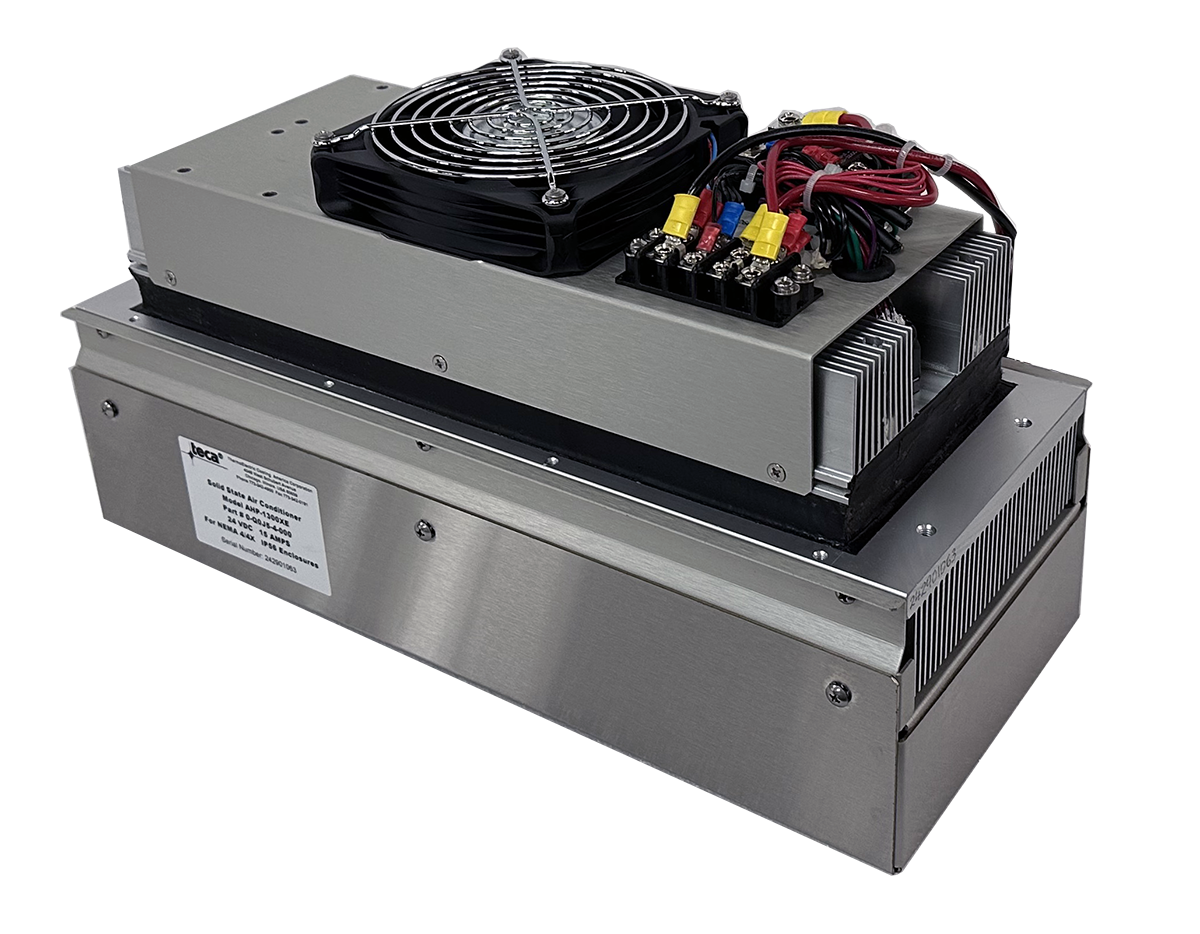

Compact Peltier Panel Cooler
Weatherproof Enclosure Cooling for NEMA-12, NEMA-4/4X & Harsh/Mil Duty 760 BTU/HR (223 watts), For DC Input Voltage:
The AHP-1300 Series thermoelectric air conditioner protects electronics equipment from overheating. Utilizing reliable Peltier cooling technology, AHP-690 coolers protect electronic controls, electrical equipment boxes, outdoor railway cabinets, and other heat sensitive equipment.

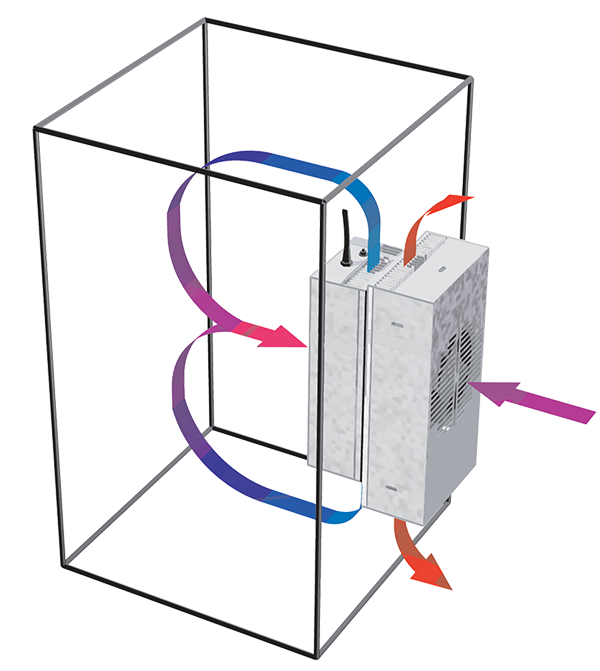

For small to medium enclosure cooling jobs, TECA’s 24 vdc input coolers are ideal. Cool and maintain NEMA-12/4/4X junction boxes, other enclosures, and Harsh/Mil Duty enclosure ratings in industries such as communications, military, kiosk, surveillance, food and beverage, transit, coatings, railway, and more. Protect against equipment box failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. When installed correctly, TECA air conditioners create a closed loop system with no ambient air entering the enclosure.
Mounting Style: Through Mounted
Voltage: 24 VDC
Current: 11 AMPS
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: , ,Performance Rating:
Cooling (Traditional): 760 BTU/HR
Cooling (Din 3168): 223 WATTS
Cooling COP (at L35 L35): 0.84
Heating (Traditional): > 980 BTU/HR
Heating (Din 3168): > 288 WATTS
Heating COP: > 1.0Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)Controller Features:
Active Cooling: 35 °C
Heat Exchanger (ECO-Mode): 25 °C
Active Heating: 10 °C
Typical Hysteresis: 5 °C- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES VOLTAGE
VDCCURRENT
AMPSCONTROLLER ENVIRONMENT AHP-1300 0-Q4J5-0-000
Cool only 24 12 TC-4F Indoors AHP-1300HC 0-Q495-1-000
Heat/Cool 24 12 None Indoors AHP-1300HC 0-Q4I5-1-000
Heat/Cool 24 12 TC-7F Indoors AHP-1300XE 0-Q4J5-4-000
Cool only 24 12 TC-4F Outdoors AHP-1300XEHC 0-Q495-5-000
Heat/Cool 24 12 None Outdoors AHP-1300XEHC 0-Q4I5-5-000
Heat/Cool 24 12 TC-7F Outdoors AHP-1300X 0-Q4J5-2-000
Cool only 24 12 TC-4F Outdoors/Harsh Env. AHP-1300XHC 0-Q495-3-000
Heat/Cool 24 12 None Outdoors/Harsh Env. AHP-1300XHC 0-Q4I5-3-000
Heat/Cool 24 12 TC-7F Outdoors/Harsh Env. AHP-1300XM 0-Q4J5-2-001
Cool only 24 12 TC-4F Outdoors/Military/Shock & Vib. AHP-1300XMHC 0-Q495-3-001
Heat/Cool 24 12 None Outdoors/Military/Shock & Vib. AHP-1300XMHC 0-Q4I5-3-001
Heat/Cool 24 12 TC-7F Outdoors/Military/Shock & Vib. - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Features:
• Compact (only 15.2” X 6.2” X 8”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 20 LBS.
