AHP-690 Series

Compact Peltier Panel Cooler

Weatherproof Enclosure Cooling for NEMA-12, NEMA-4/4X & Harsh/Mil Duty 467 BTU/HR (137 watts), For DC Input Voltage:

The AHP-690 Series thermoelectric air conditioner protects electronics equipment from overheating. Utilizing reliable Peltier cooling technology, AHP-690 coolers protect electronic controls, electrical equipment boxes, outdoor railway cabinets, and other heat sensitive equipment.

For small to medium enclosure cooling jobs, TECA’s 24 vdc and 48 vdc input coolers are ideal. The AHP-690 is available for 24 vdc or 48 vdc, allowing for the use of reliable, low maintenance thermoelectric climate control technology in more applications. Cool and maintain NEMA-12/4/4X junction boxes, other enclosures, and Harsh/Mil Duty enclosure ratings in industries such as communications, military, kiosk, surveillance, food and beverage, transit, coatings, railway, and more. Protect against equipment box failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. When installed correctly, TECA air conditioners create a closed loop system with no ambient air entering the enclosure.


  • Mounting Style: Through Mounted

    Voltage: 24 VDC, 48 VDC
    Current: 15 AMPS, 5.5 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    467 BTU/HR
    Cooling (Din 3168): 137 WATTS
    Cooling COP (at L35 L35): 0.52
    Heating (Traditional): > 900 BTU/HR
    Heating (Din 3168): > 264 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    Active Cooling: 35 °C
    Heat Exchanger (ECO-Mode): 25 °C
    Active Heating: 10 °C
    Typical Hysteresis: 5 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESVOLTAGE
    VDC
    CURRENT
    AMPS
    CONTROLLERENVIRONMENT
    AHP-6900-M0J5-0-000
    Cool only2415TC-4FIndoors
    AHP-6900-M0J6-0-000
    Cool only487TC-4FIndoors
    AHP-690HC0-M095-1-000
    Heat/Cool2415NoneIndoors
    AHP-690HC0-M096-1-000
    Heat/Cool487NoneIndoors
    AHP-690HC0-M0I5-1-000
    Heat/Cool2415TC-7FIndoors
    AHP-690HC0-M0I6-1-000
    Heat/Cool487TC-7FIndoors
    AHP-690XE0-M0J5-4-000
    Cool only2415TC-4FOutdoors
    AHP-690XE0-M0J6-4-000
    Cool only487TC-4FOutdoors
    AHP-690XEHC0-M095-5-000
    Heat/Cool2415NoneOutdoors
    AHP-690XEHC0-M096-5-000
    Heat/Cool487NoneOutdoors
    AHP-690XEHC0-M0I5-5-000
    Heat/Cool2415TC-7FOutdoors
    AHP-690XEHC0-M0I6-5-000
    Heat/Cool487TC-7FOutdoors
    AHP-690X0-M0J5-2-000
    Cool only2415TC-4FOutdoors/Military
    AHP-690X0-M0J6-2-000
    Cool only487TC-4FOutdoors/Military
    AHP-690XHC0-M095-3-000
    Heat/Cool2415NoneOutdoors/Military
    AHP-690XHC0-M096-3-000
    Heat/Cool487NoneOutdoors/Military
    AHP-690XHC0-M0I5-3-000
    Heat/Cool2415TC-7FOutdoors/Military
    AHP-690XHC0-M0I6-3-000
    Heat/Cool487TC-7FOutdoors/Military
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 690 9:09 am 09/01/201620.9M

    SLDP
    AHP 690 9:09 am 09/01/20162.7M

    STEP
    AHP 690 9:10 am 09/01/20167.8M

    dwg
    AHP 690 9:09 am 09/01/20161.3M

    pdf
    Ahp 690 9:09 am 09/01/20161.9M
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS500-24Switching power supply
    500 Watts, 24 VDC
    pdf

Features:

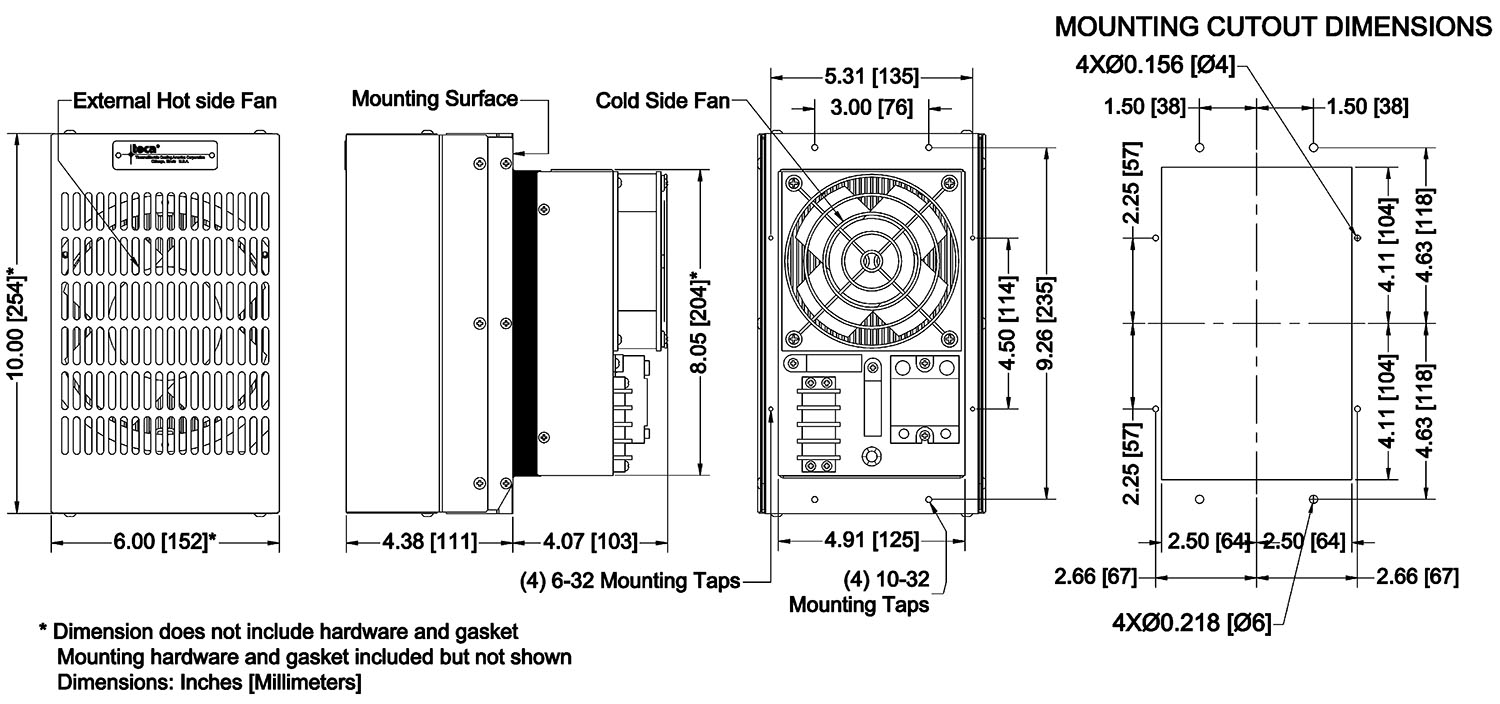

• Compact (only 10” X 6” X 8.5”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 15 LBS.
