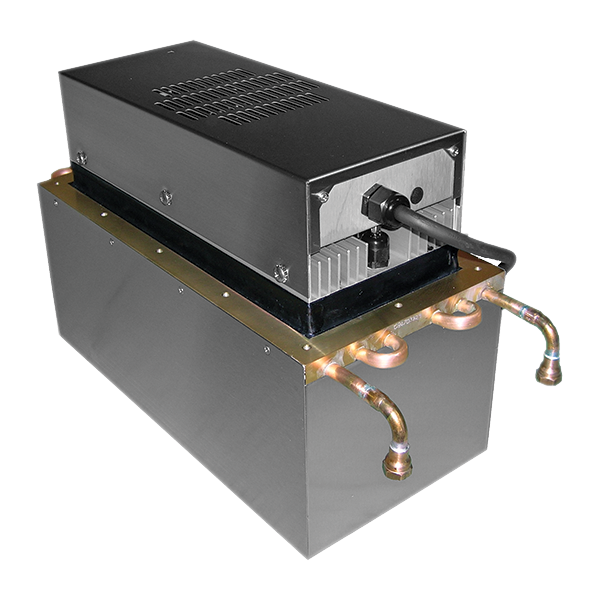

LHP-1200 Series

Liquid Cooled Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, Harsh/Mil Duty & CID2 Haz Loc, 613 BTU/HR (180 watts), For 120 AC Input Voltage:

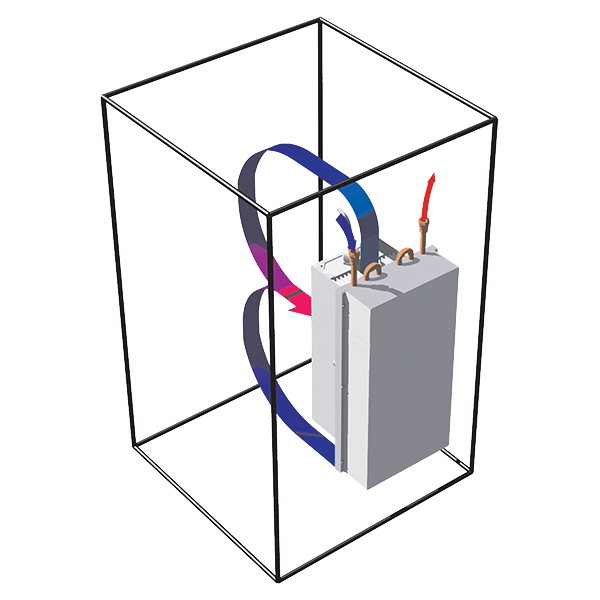

The LHP-1200 Series thermoelectric air conditioner protects electronics equipment from overheating. Utilizing reliable Peltier cooling technology, LHP-1200 coolers protect electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X and Hazardous Locations (CID2) in industries such as food and beverage, coatings, oil/gas, ink/printing, controls, and more. This liquid-cooled design can be mounted completely internal to the enclosure if necessary to protect against a very harsh environment. A water source at the end user location is required; the water works as a coolant to carry heat away. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliability.

  • Mounting Style: Through Mounted

    Voltage: 120 VAC
    Current: 3.7 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

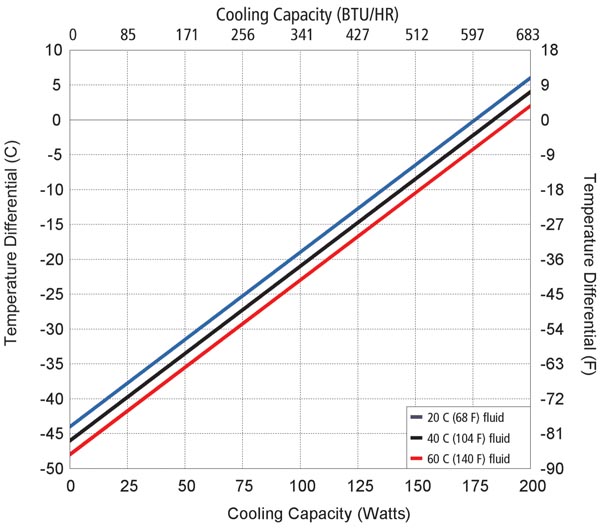

    Performance Rating:
    Cooling (Traditional):
    613 BTU/HR
    Cooling (Din 3168): 180 WATTS

    Includes:
    • Integral power supply
    • In/Out 1/4-18 NPT connectors for coolant
    • Power cord
    • Gasket and mounting hardware
    • Adjustable temperature control

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C, Active heat 15 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    LHP-1200XE2-3090-4-000
    Cool onlyNoneNEMA-4X/Harsh Environment, IP 56
    LHP-1200XE2-3080-4-000
    Cool onlyTC-6FNEMA-4X/Harsh Environment, IP 56
    LHP-1200XE2-30F0-4-000
    Cool onlyTC-1FNEMA-4X/Harsh Environment, IP 56
    LHP-1200XE2-3050-4-000
    Cool onlyExternal 3-32 VDC drive signalNEMA-4X/Harsh Environment, IP 56
    LHP-1200XEHC2-3030-5-000
    Heat/CoolTC-3FNEMA-4X/Harsh Environment, IP 56
    LHP-1200XEHC2-3050-5-000
    Heat/CoolExternal 3-32 VDC drive signalNEMA-4X/Harsh Environment, IP 56
    LHP-1200XP2-3090-2-027
    Cool onlyNoneNEMA-4X/Harsh Environment, IP 56, CI D2
    LHP-1200XP2-3080-2-028
    Cool onlyTC-6FNEMA-4X/Harsh Environment, IP 56, CI D2
    LHP-1200XP2-30F0-2-029
    Cool onlyTC-1FNEMA-4X/Harsh Environment, IP 56, CI D2
    LHP-1200XP2-3050-2-030
    Cool onlyExternal 3-32 VDC drive signalNEMA-4X/Harsh Environment, IP 56, CI D2
    LHP-1200XPHC2-3030-3-031
    Heat/CoolTC-3FNEMA-4X/Harsh Environment, IP 56, CI D2
    LHP-1200XPHC2-3050-3-032
    Heat/CoolExternal 3-32 VDC drive signalNEMA-4X/Harsh Environment, IP 56, CI D2
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Lhp 1200xe 9:33 am 09/01/20165.8M

    PDF
    Lhp 1200xe 9:33 am 09/01/2016284.8k

    SLDP
    Lhp 1200xe 9:33 am 09/01/2016736.7k

    STEP
    Lhp 1200xe 9:34 am 09/01/20162.4M

    dwg
    Lhp 1200xe 9:33 am 09/01/2016714.1k

    IGS
    Lhp 1200xp 9:34 am 09/01/20165.9M

    PDF
    Lhp 1200xp 9:34 am 09/01/2016271.5k

    SLDP
    Lhp 1200xp 9:34 am 09/01/2016706.4k

    STEP
    Lhp 1200xp 9:34 am 09/01/20162.5M

    dwg
    Lhp 1200xp 9:34 am 09/01/2016876.7k
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-1200Drip pan, vertical cold side finsdwgpdf
    DHA-1200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC
    pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf

Features:

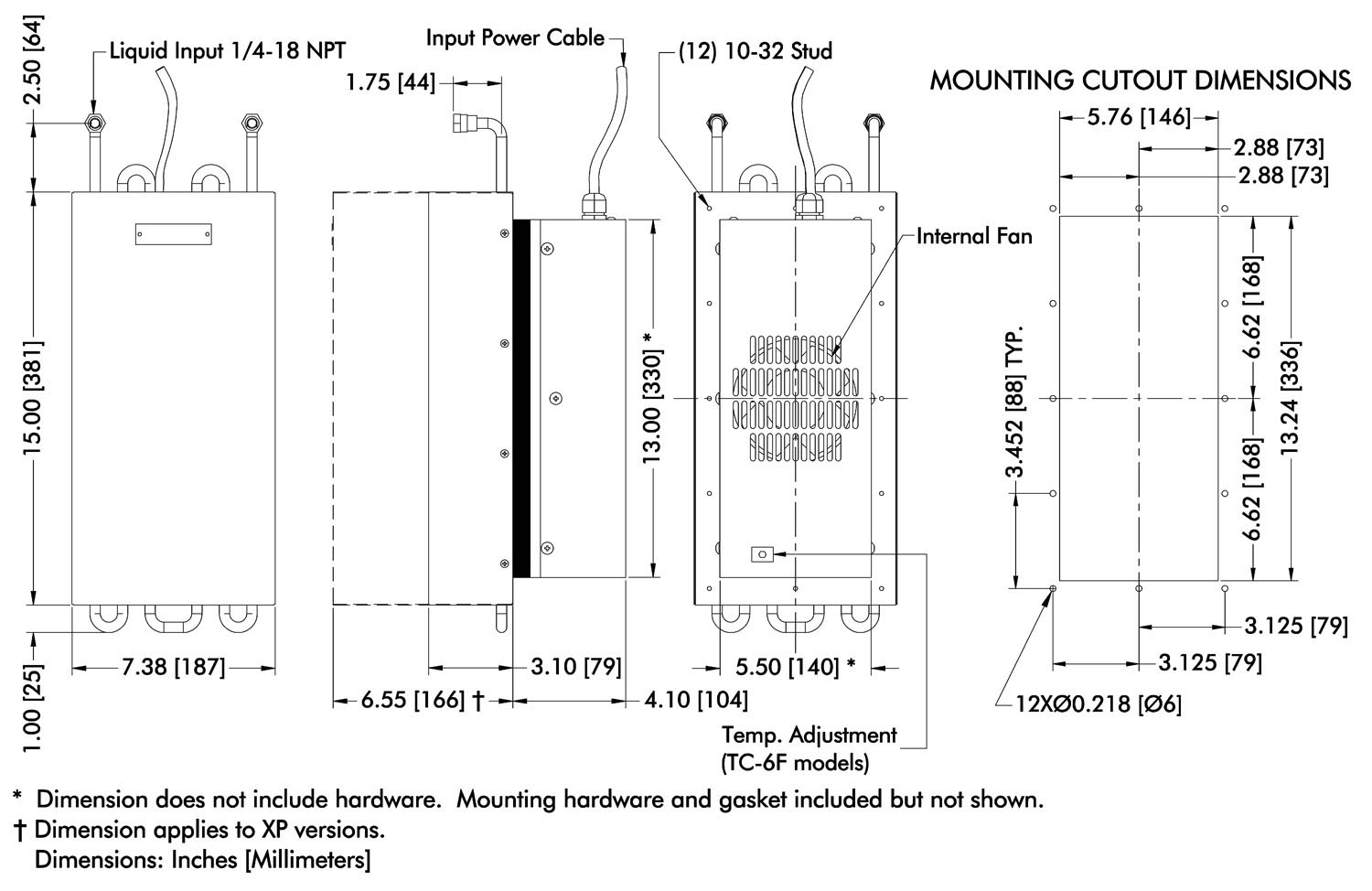

• Compact, (only 15” L X 8” W X 7.3” D)
• Can be mounted entirely inside purged enclosure or maintain purge when wall mounted
• Mounts and operates in any orientation: horizontal, vertical, etc.
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Operating ambient/coolant temperature range 0/+70 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 21 LBS.
