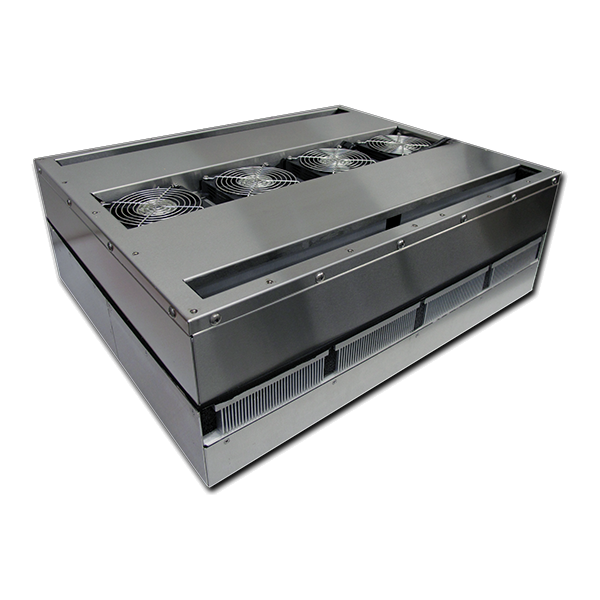

FHP-4252 High Capacity

High Capacity, Flush Mount Thermoelectric Air Conditioner/Heat Exchanger

  • Mounting Style: Flush Mounted
    Voltage: 240 VAC
    Current: 12.5 AMPS, 0.9 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:

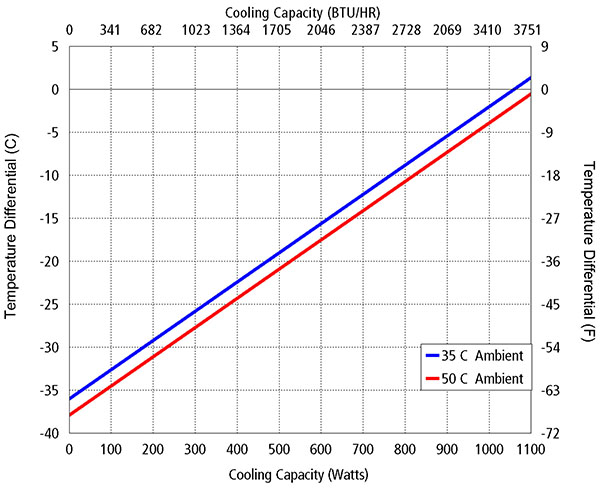

    Cooling (Traditional):
    3615 BTU/HR
    Cooling (Din 3168): 1060 WATTS
    Cooling COP (at L35 L35): 0.35
    Heating (Traditional): >12000 BTU/HR
    Heating (Din 3168): >3600 WATTS
    Heating COP: >1.0
    Heat Exchanger (ECO-Mode): 30 W/°C



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    FHP-42527-J5J2-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    FHP-42527-J552-0-000
    Cool only5-32 VDC External signalNEMA-12, IP 52
    FHP-4252HC7-J5I2-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    FHP-4252HC7-J552-1-000
    Heat/Cool5-32 VDC External signalNEMA-12, IP 52
    FHP-4252XE7-J5J2-4-000
    Cool onlyTC-4FNEMA-4/4X, IP 56
    FHP-4252XE7-J552-4-000
    Cool only5-32 VDC External signalNEMA-4/4X, IP 56
    FHP-4252XEHC7-J5I2-5-000
    Heat/CoolTC-7FNEMA-4/4X, IP 56
    FHP-4252XEHC7-J552-5-000
    Heat/Cool5-32 VDC External signalNEMA-4/4X, IP 56
    FHP-4252X7-J5J2-2-000
    Cool onlyTC-4FNEMA-4X/Harsh Environment, IP 56
    FHP-4252X7-J552-2-000
    Cool only5-32 VDC External signalNEMA-4X/Harsh Environment, IP 56
    FHP-4252XHC7-J5I2-3-000
    Heat/CoolTC-7FNEMA-4X/Harsh Environment, IP 56
    FHP-4252XHC7-J552-3-000
    Heat/Cool5-32 VDC External signalNEMA-4X/Harsh Environment, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    PDF
    Fhp 4200 9:23 am 09/01/20161.8M

    SLDP
    Fhp 4200 9:23 am 09/01/20164.9M

    STEP
    Fhp 4200 9:24 am 09/01/201618.5M

    dwg
    Fhp 4200 9:22 am 09/01/20165.4M

    igs
    Fhp 4200 9:23 am 09/01/201629.3M
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting

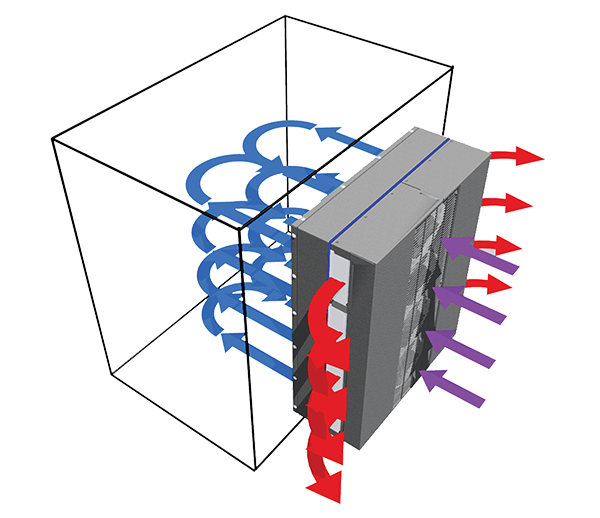

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 116 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4
