FHP-6250 Series

High Capacity Thermoelectric Air Conditioner

  • Mounting Style: Flush Mounted
    Voltage: 120 VAC, (48 VDC)
    Current: 14 AMPS, (25 AMPS)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:

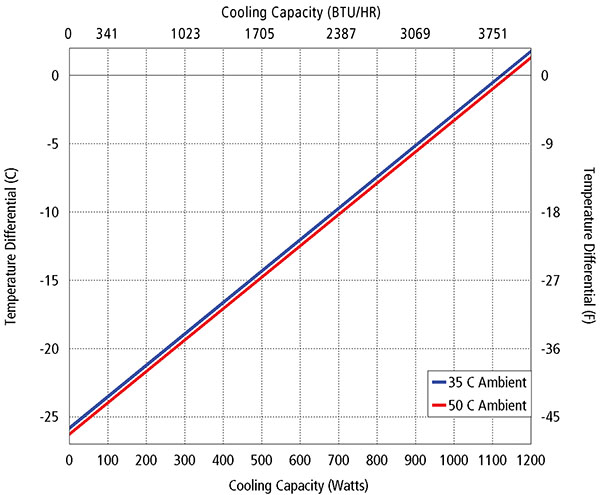

    Cooling (Traditional):
    3820 BTU/HR
    Cooling (Din 3168): 1120 WATTS
    Cooling COP (at L35 L35): 0.67
    Heating (Traditional): >5524 BTU/HR
    Heating (Din 3168): >1620 WATTS
    Heating COP: >1.0
    Heat Exchanger (ECO-Mode): 45 W/°C

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENTCURRENT
    AMPS
    ENVIRONMENT
    FHP-62507-K4J0-0-000
    Cool onlyTC-4F12014NEMA-12, IP 52
    FHP-62507-K450-0-000
    Cool only3-32 VDC External signal12014NEMA-12, IP 52
    FHP-6250HC7-K4I0-1-000
    Heat/CoolTC-7F12014NEMA-12, IP 52
    FHP-6250HC7-K450-1-000
    Heat/Cool3-32 VDC External signal12014NEMA-12, IP 52
    FHP-6250XE7-K4J0-4-000
    Cool onlyTC-4F12014NEMA-4/4X, IP 56
    FHP-6250XE7-K450-4-000
    Cool only3-32 VDC External signal12014NEMA-4/4X, IP 56
    FHP-6250XEHC7-K4I0-5-000
    Heat/CoolTC-7F12014NEMA-4/4X, IP 56
    FHP-6250XEHC7-K450-5-000
    Heat/Cool3-32 VDC External signal12014NEMA-4/4X, IP 56
    FHP-6250X7-K4J0-2-000
    Cool onlyTC-4F12014NEMA-4X/Harsh Environment, IP 56
    FHP-6250X7-K450-2-000
    Cool only3-32 VDC External signal12014NEMA-4X/Harsh Environment, IP 56
    FHP-6250XHC7-K4I0-3-000
    Heat/CoolTC-7F12014NEMA-4X/Harsh Environment, IP 56
    FHP-6250XHC7-K450-3-000
    Heat/Cool3-32 VDC External signal12014NEMA-4X/Harsh Environment, IP 56
    FHP-62507-K4J6-0-000
    Cool onlyTC-4F(48)25NEMA-12, IP 52
    FHP-62507-K456-0-000
    Cool only3-32 VDC External signal(48)25NEMA-12, IP 52
    FHP-6250HC7-K4I6-1-000
    Heat/CoolTC-7F(48)25NEMA-12, IP 52
    FHP-6250HC7-K456-1-000
    Heat/Cool3-32 VDC External signal(48)25NEMA-12, IP 52
    FHP-6250XE7-K4J6-4-000
    Cool onlyTC-4F(48)25NEMA-4/4X, IP 56
    FHP-6250XE7-K456-4-000
    Cool only3-32 VDC External signal(48)25NEMA-4/4X, IP 56
    FHP-6250XEHC7-K4I6-5-000
    Heat/CoolTC-7F(48)25NEMA-4/4X, IP 56
    FHP-6250XEHC7-K456-5-000
    Heat/Cool3-32 VDC External signal(48)25NEMA-4/4X, IP 56
    FHP-6250X7-K4J6-2-000
    Cool onlyTC-4F(48)25NEMA-4X/Harsh Environment, IP 56
    FHP-6250X7-K456-2-000
    Cool only3-32 VDC External signal(48)25NEMA-4X/Harsh Environment, IP 56
    FHP-6250XHC7-K4I6-3-000
    Heat/CoolTC-7F(48)25NEMA-4X/Harsh Environment, IP 56
    FHP-6250XHC7-K456-3-000
    Heat/Cool3-32 VDC External signal(48)25NEMA-4X/Harsh Environment, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Fhp 6200 9:25 am 09/01/201631.1M

    PDF
    Fhp 6200 9:25 am 09/01/20162.2M

    SLDP
    Fhp 6200 9:26 am 09/01/20166.5M

    STEP
    Fhp 6200 9:26 am 09/01/201621.4M

    dwg
    Fhp 6200 9:24 am 09/01/20166.8M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger (ECO-mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 170 LBS.
