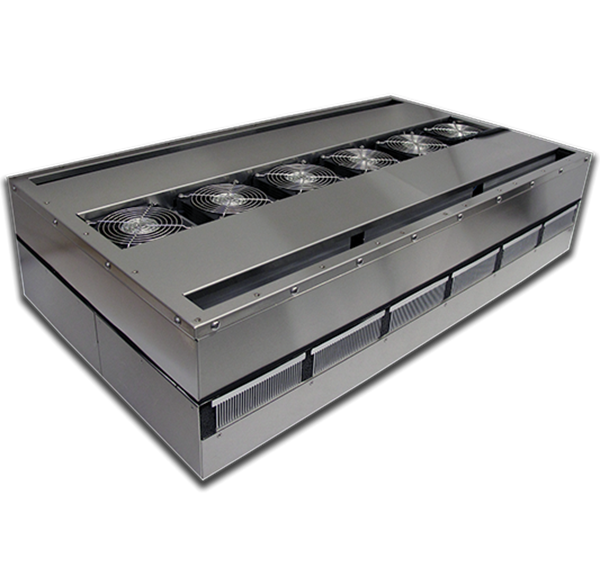

FHP-6254

High Capacity Thermoelectric Air Conditioner


  • Mounting Style: Flush Mounted
    Voltage: 3 Phase Wye 208 VAC
    Current: 5.5 AMPS, 1.5 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:

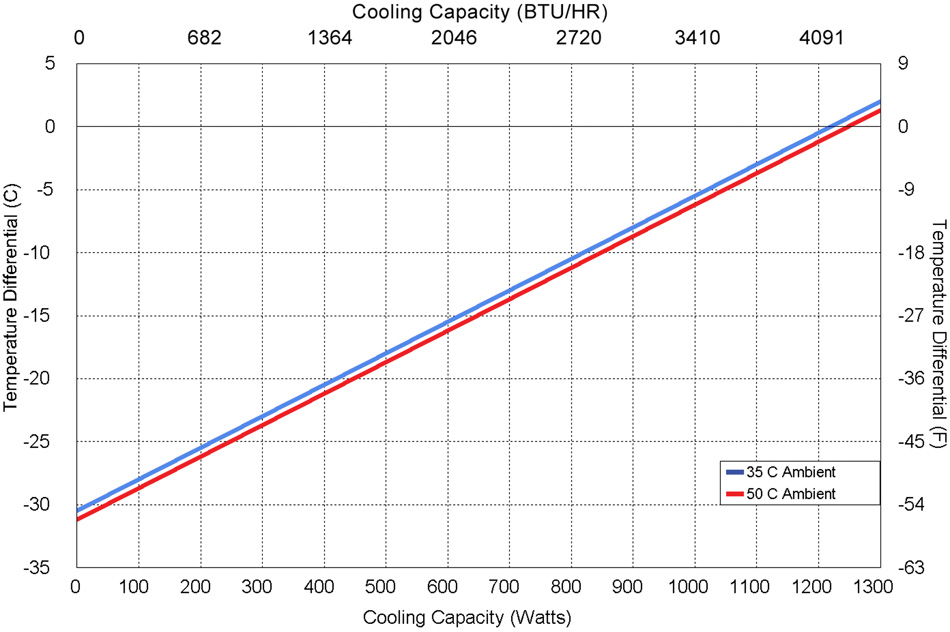

    Cooling (Traditional):
    4160 BTU/HR
    Cooling (Din 3168): 1220 WATTS
    Cooling COP (at L35 L35): 0.62
    Heating (Traditional): >6700 BTU/HR
    Heating (Din 3168): >1979 WATTS
    Heating COP: >1.0
    Heat Exchanger (ECO-Mode): 45 W/°C

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    FHP-62547-K4JE-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    FHP-62547-K45E-0-000
    Cool only5-32 VDC external signalNEMA-12, IP 52
    FHP-6254HC7-K4IE-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    FHP-6254HC7-K45E-1-000
    Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    FHP-6254XE7-K4JE-4-000
    Cool onlyTC-4FNEMA-4/4X, IP 56
    FHP-6254XE7-K45E-4-000
    Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    FHP-6254XEHC7-K4IE-5-000
    Heat/CoolTC-7FNEMA-4/4X, IP 56
    FHP-6254XEHC7-K45E-5-000
    Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
    FHP-6254X7-K4JE-2-000
    Cool onlyTC-4FNEMA-4X/Harsh Environment, IP 56
    FHP-6254X7-K45E-2-000
    Cool only5-32 VDC external signalNEMA-4X/Harsh Environment, IP 56
    FHP-6254XHC7-K4IE-3-000
    Heat/CoolTC-7FNEMA-4X/Harsh Environment, IP 56
    FHP-6254XHC7-K45E-3-000
    Heat/Cool5-32 VDC external signalNEMA-4X/Harsh Environment, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Fhp 6253-63 9:27 am 09/01/201629.3M

    PDF
    Fhp 6253-63 9:27 am 09/01/20162.1M

    SLDP
    Fhp 6253-63 9:27 am 09/01/20165.6M

    STEP
    Fhp 6253-63 9:28 am 09/01/201619.1M

    dwg
    Fhp 6253-63 9:26 am 09/01/20166.5M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger (ECO-mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting

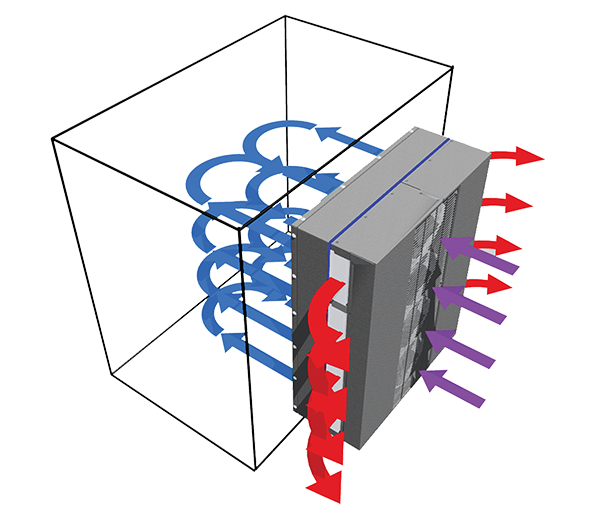

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 180 LBS.
