AHP-2250 High Capacity

Weatherproof NEMA Cabinet Cooler

Weatherproof NEMA Control Cabinet Cooler, 1880 BTU/HR (550 watts) High Performance, Efficient, in 48 VDC or 120 VAC Input:

For thermoelectric cooling of weatherproof NEMA cabinets, the AHP-2250-Series is an advanced, high performance thermoelectric climate control system. The AHP-2250-Series will maintain efficient cooling or hearing, preserving the NEMA12/4/4X rating of your weatherproof enclosure. The ECO-Mode temperature control feature helps save on power use. Designed to protect electronics equipment boxes from overheating, thermoelectric cooling technology is reliable and low-maintenance. Cool electronic controls, electrical equipment, control cabinets, and other heat sensitive equipment. Ideal for indoor or outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric air conditioners from TECA for superior performance and reliable climate control.

  • Mounting Style:Through Mounted Voltage: 120 VAC, (48 VDC)
    Current: 10.8 AMPS, (15 AMPS)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

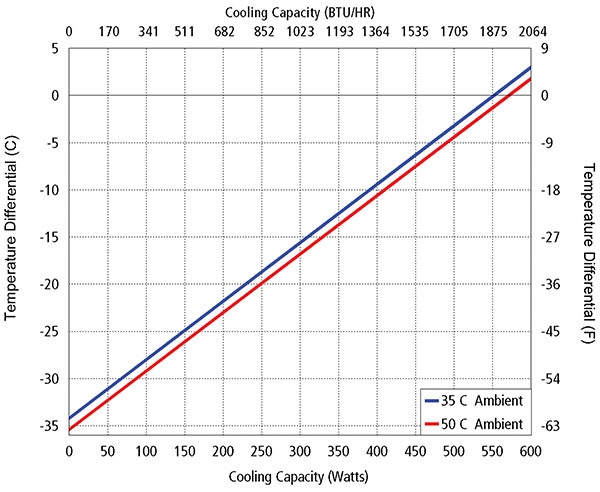

    Performance Rating:
    Cooling (Traditional):
    1880 BTU/HR
    Cooling (Din 3168): 550 WATTS
    Cooling COP (at L35 L35): 0.42
    Heating (Traditional): >4000 BTU/HR
    Heating (Din 3168): >1200 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    ENVIRONMENT
    AHP-22500-H5J0-0-000
    Cool onlyTC-4F12010.8NEMA-12, IP 52
    AHP-22500-H550-0-000
    Cool only3-32 VDC External signal12010.8NEMA-12, IP 52
    AHP-2250HC0-H5I0-1-000
    Heat/CoolTC-7F12010.8NEMA-12, IP 52
    AHP-2250HC0-H550-1-000
    Heat/Cool3-32 VDC External signal12010.8NEMA-12, IP 52
    AHP-2250XE0-H5J0-4-000
    Cool onlyTC-4F12010.8NEMA-4/4X, IP 56
    AHP-2250XE0-H550-4-000
    Cool only3-32 VDC External signal12010.8NEMA-4/4X, IP 56
    AHP-2250XEHC0-H5I0-5-000
    Heat/CoolTC-7F12010.8NEMA-4/4X, IP 56
    AHP-2250XEHC0-H550-5-000
    Heat/Cool3-32 VDC External signal12010.8NEMA-4/4X, IP 56
    AHP-2250X0-H5J0-2-000
    Cool onlyTC-4F12010.8NEMA-4X/Harsh Environment, IP 56
    AHP-2250X0-H550-2-000
    Cool only3-32 VDC External signal12010.8NEMA-4X/Harsh Environment, IP 56
    AHP-2250XHC0-H5I0-3-000
    Heat/CoolTC-7F12010.8NEMA-4X/Harsh Environment, IP 56
    AHP-2250XHC0-H550-3-000
    Heat/Cool3-32 VDC External signal12010.8NEMA-4X/Harsh Environment, IP 56
    AHP-22500-H5J6-0-000
    Cool onlyTC-4F(48)15NEMA-12, IP 52
    AHP-22500-H556-0-000
    Cool only3-32 VDC External signal(48)15NEMA-12, IP 52
    AHP-2250HC0-H5I6-1-000
    Heat/CoolTC-7F(48)15NEMA-12, IP 52
    AHP-2250HC0-H556-1-000
    Heat/Cool3-32 VDC External signal(48)15NEMA-12, IP 52
    AHP-2250XE0-H5J6-4-000
    Cool onlyTC-4F(48)15NEMA-4/4X, IP 56
    AHP-2250XE0-H556-4-000
    Cool only3-32 VDC External signal(48)15NEMA-4/4X, IP 56
    AHP-2250XEHC0-H5I6-5-000
    Heat/CoolTC-7F(48)15NEMA-4/4X, IP 56
    AHP-2250XEHC0-H556-5-000
    Heat/Cool3-32 VDC External signal(48)15NEMA-4/4X, IP 56
    AHP-2250X0-H5J6-2-000
    Cool onlyTC-4F(48)15NEMA-4X/Harsh Environment, IP 56
    AHP-2250X0-H556-2-000
    Cool only3-32 VDC External signal(48)15NEMA-4X/Harsh Environment, IP 56
    AHP-2250XHC0-H5I6-3-000
    Heat/CoolTC-7F(48)15NEMA-4X/Harsh Environment, IP 56
    AHP-2250XHC0-H550-3-000
    Heat/Cool3-32 VDC External signal(48)15NEMA-4X/Harsh Environment, IP 56
  • Click to download:

  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-2200Drip pan, vertical cold side finsAHP-2200dwgpdf
    DHA-2200Drip pan, horizontal cold side finsAHP-2200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 60 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4
