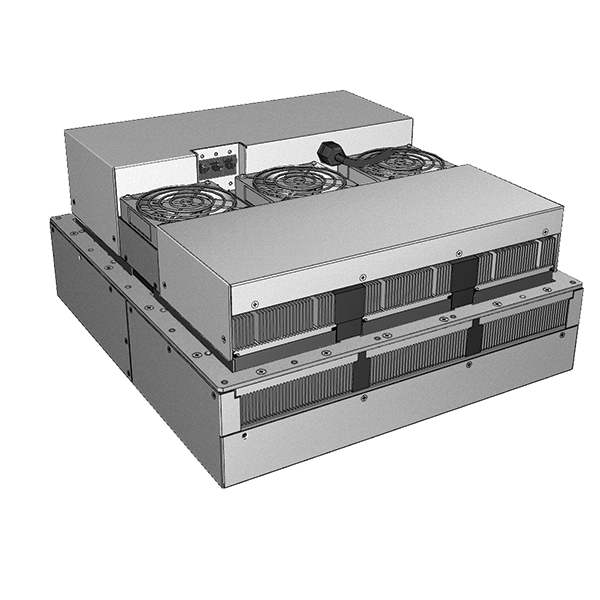

AHP-3254 Series

Thermoelectric Air Conditioner

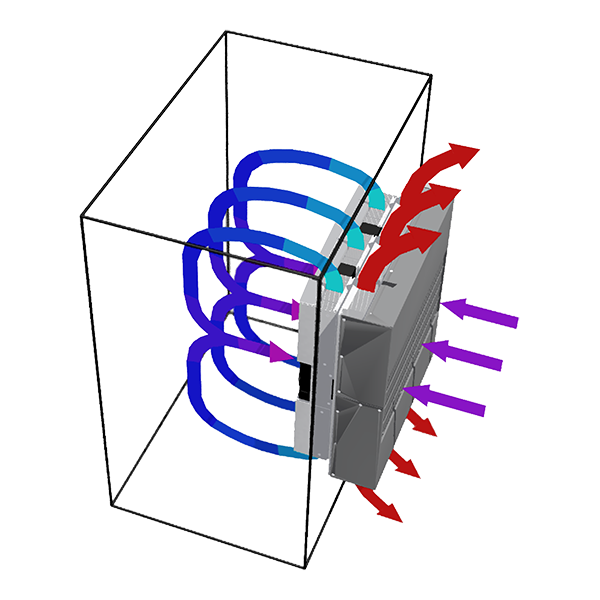

  • Mounting Style: Through Mounted
    Voltage: 3 Phase Wye 208 VAC
    Current: 2.6 AMPS, 0.7 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X

    Performance Rating:
    Cooling (Traditional):
    2686 BTU/HR
    Cooling (Din 3168): 787 WATTS
    Cooling COP (at L35 L35): 0.84
    Heating (Traditional): >3294 BTU/HR
    Heating (Din 3168): >937 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-32540-I4JE-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    AHP-32540-I45E-0-000
    Cool only5-32 VDC External signalNEMA-12, IP 52
    AHP-3254HC0-I4IE-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    AHP-3254HC0-I45E-1-000
    Heat/Cool5-32 VDC External signalNEMA-12, IP 52
    AHP-3254XE0-I4JE-4-000
    Cool onlyTC-4FNEMA-4, IP 56
    AHP-3254XE0-I45E-4-000
    Cool only5-32 VDC External signalNEMA-4, IP 56
    AHP-3254XEHC0-I4IE-5-000
    Heat/CoolTC-7FNEMA-4, IP 56
    AHP-3254XEHC0-I45E-5-000
    Heat/Cool5-32 VDC External signalNEMA-4, IP 56
    AHP-3254X0-I4JE-2-000
    Cool onlyTC-4FNEMA-4X, IP 56
    AHP-3254X0-I45E-2-000
    Cool only5-32 VDC External signalNEMA-4X, IP 56
    AHP-3254XHC0-I4IE-3-000
    Heat/CoolTC-7FNEMA-4X, IP 56
    AHP-3254XHC0-I45E-3-000
    Heat/Cool5-32 VDC External signalNEMA-4X, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 3253-54 9:00 am 09/01/201625.1M

    SLDP
    AHP 3253-54 9:00 am 09/01/20164.4M

    STEP
    AHP 3253-54 9:01 am 09/01/201617.1M

    dwg
    AHP 3253-54 8:59 am 09/01/20163.9M

    rpt
    AHP 3253-54 9:00 am 09/01/20163.2k

    pdf
    Ahp 3253-54 9:00 am 09/01/20165.6M
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 88 LBS.
