Flush Mount Thermoelectric Air Conditioner
Mounting Style: Flush Mounted
Voltage: 3 Phase Wye 208 VAC
Current: 2.6 AMPS, 0.7 AMPS Eco-Mode
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: , ,Performance Rating:
Cooling (Traditional): 2235 BTU/HR
Cooling (Din 3168): 655 WATTS
Cooling COP (at L35 L35): 0.61
Heating (Traditional): >3294 BTU/HR
Heating (Din 3168): >937 WATTS
Heating COP: >1.0Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breakerController Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES CONTROLLER ENVIRONMENT FHP-3254 7-I4JE-0-000
Cool only TC-4F NEMA-12, IP 52 FHP-3254 7-I45E-0-000
Cool only 5-32 VDC External signal NEMA-12, IP 52 FHP-3254HC 7-I4IE-1-000
Heat/Cool TC-7F NEMA-12, IP 52 FHP-3254HC 7-I45E-1-000
Heat/Cool 5-32 VDC External signal NEMA-12, IP 52 FHP-3254XE 7-I4JE-4-000
Cool only TC-4F NEMA-4/4X, IP 56 FHP-3254XE 7-I45E-4-000
Cool only 5-32 VDC External signal NEMA-4/4X, IP 56 FHP-3254XEHC 7-I4IE-5-000
Heat/Cool TC-7F NEMA-4/4X, IP 56 FHP-3254XEHC 7-I45E-5-000
Heat/Cool 5-32 VDC External signal NEMA-4/4X, IP 56 FHP-3254X 7-I4JE-2-000
Cool only TC-4F NEMA-4X/Harsh Environment, IP 56 FHP-3254X 7-I45E-2-000
Cool only 5-32 VDC External signal NEMA-4X/Harsh Environment, IP 56 FHP-3254XHC 7-I4IE-3-000
Heat/Cool TC-7F NEMA-4X/Harsh Environment, IP 56 FHP-3254XHC 7-I45E-3-000

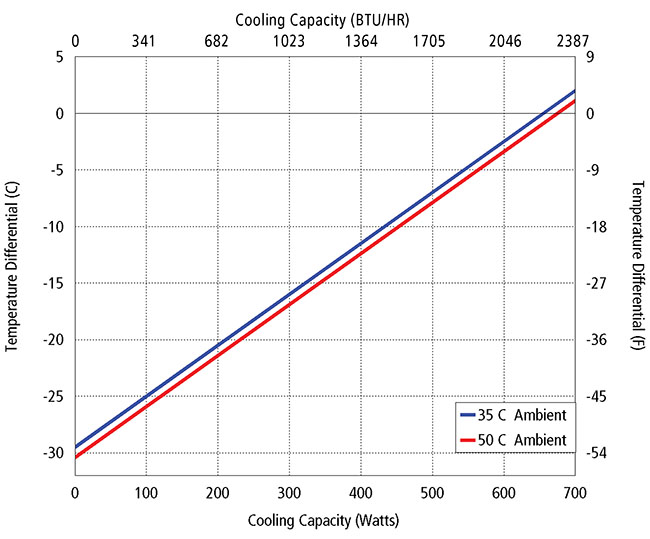

Heat/Cool 5-32 VDC External signal NEMA-4X/Harsh Environment, IP 56 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 93 LBS.
