FHP-3259

High Capacity Flush Mounted Thermoelectric Air Conditioner

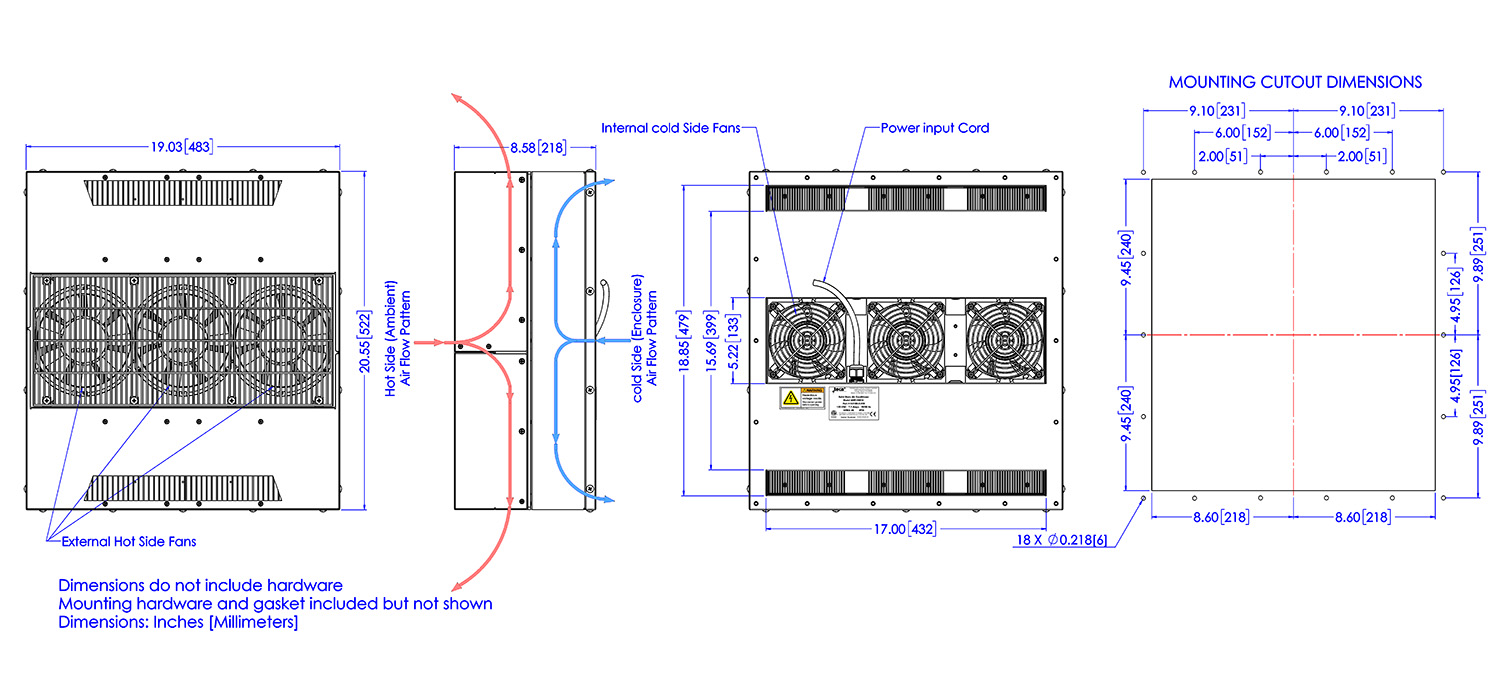

  • Mounting Style: Through Mounted
    Voltage: 100-240 VAC
    Current: 11-4.6 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):
    2200 BTU/HR
    Cooling (Din 3168): 646 WATTS
    Cooling COP (at L35 L35): 0.56
    Heating (Traditional): >1200 BTU/HR
    Heating (Din 3168): >352 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    FHP-32597-I5JB-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    FHP-32597-I55B-0-000
    Cool only5-32 VDC external signalNEMA-12, IP 52
    FHP-3259HC7-I5IB-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    FHP-3259HC7-I55B-1-000
    Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    FHP-3259XE7-I5JB-4-000
    Cool onlyTC-4FNEMA-4, IP 56
    FHP-3259XE7-I55B-4-000
    Cool only5-32 VDC external signalNEMA-4, IP 56
    FHP-3259XEHC7-I5IB-5-000
    Heat/CoolTC-7FNEMA-4, IP 56
    FHP-3259XEHC7-I55B-5-000
    Heat/Cool5-32 VDC external signalNEMA-4, IP 56

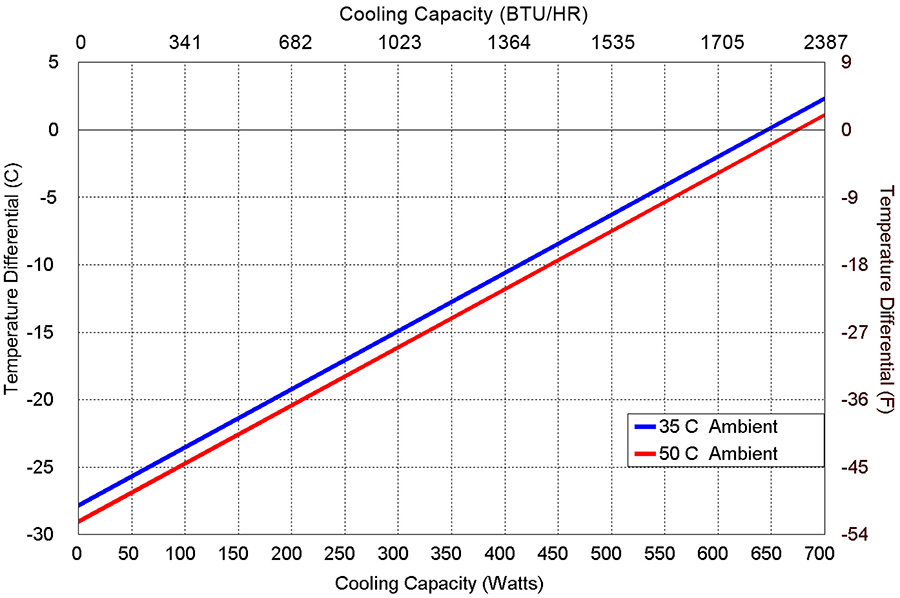

  • Click to open PDF performance curves:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    FHP 3259 7:27 am 09/15/201779.6M

    PDF
    FHP 3259 7:25 am 09/15/20178.2M

    SLDP
    FHP 3259 7:26 am 09/15/201725.6M

    STEP
    FHP 3259 7:27 am 09/15/201754.6M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• 90-264 VAC Universal input power supply
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 90 LBS.
