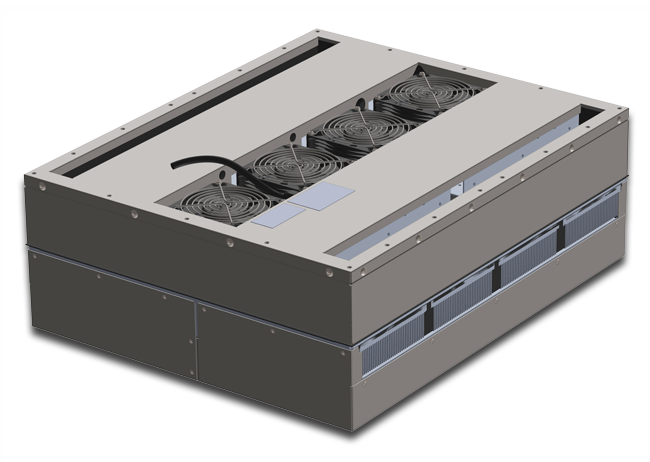

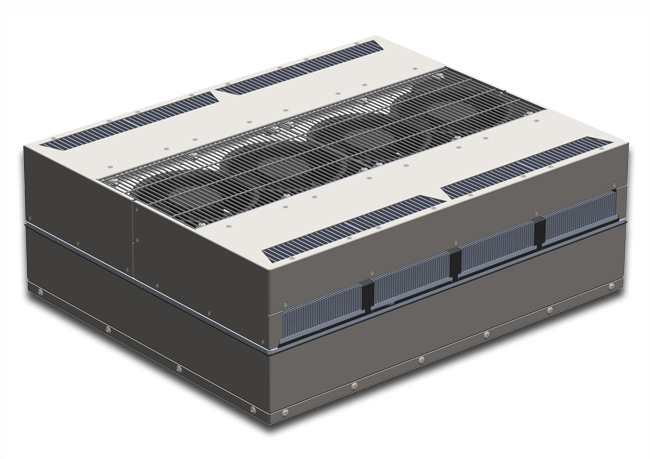

High Capacity Flush Mounted Thermoelectric Air Conditioner
Mounting Style: Through Mounted
Voltage: 100-240 VAC
Current: 16-7 AMPS
Operating Ambient: -40/+65 °C
Operating Enclosure: -10/+60 °C
Environments: ,Performance Rating:
Cooling (Traditional): 3270 BTU/HR
Cooling (Din 3168): 960 WATTS
Cooling COP (at L35 L35): 0.6
Heating (Traditional): >3270 BTU/HR
Heating (Din 3168): >960 WATTS
Heating COP: >0.6Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cordController Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES CONTROLLER ENVIRONMENT FHP-4259 7-J5JB-0-000
Cool only TC-4F NEMA-12, IP 52 FHP-4259 7-J55B-0-000
Cool only 5-32 VDC external signal NEMA-12, IP 52 FHP-4259HC 7-J5IB-1-000
Heat/Cool TC-7F NEMA-12, IP 52 FHP-4259HC 7-J55B-1-000
Heat/Cool 5-32 VDC external signal NEMA-12, IP 52 FHP-4259XE 7-J5JB-4-000
Cool only TC-4F NEMA-4/4X, IP 56 FHP-4259XE 7-J55B-4-000
Cool only 5-32 VDC external signal NEMA-4/4X, IP 56 FHP-4259XEHC 7-J5IB-5-000
Heat/Cool TC-7F NEMA-4/4X, IP 56 FHP-4259XEHC 7-J55B-5-000

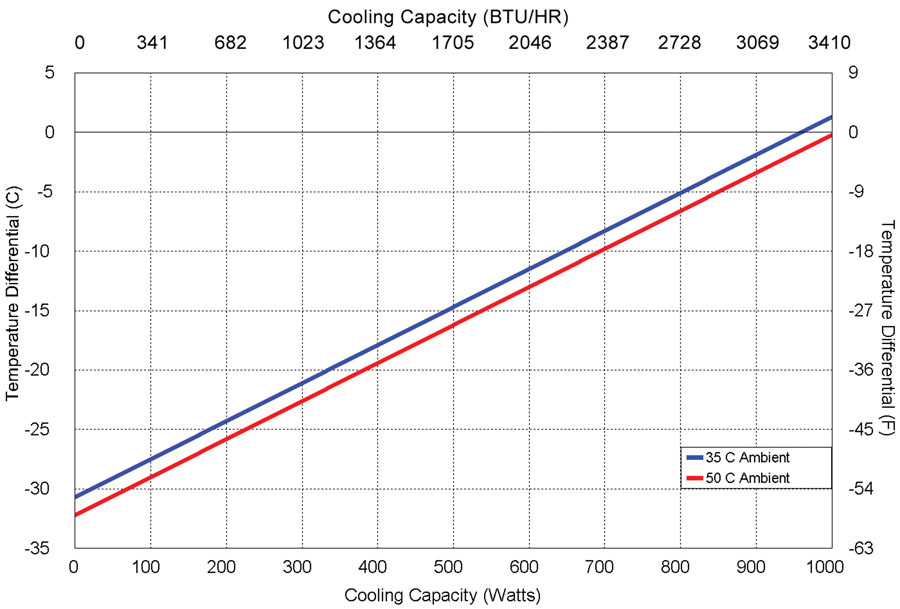

Heat/Cool 5-32 VDC external signal NEMA-4/4X, IP 56 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 120 LBS.
