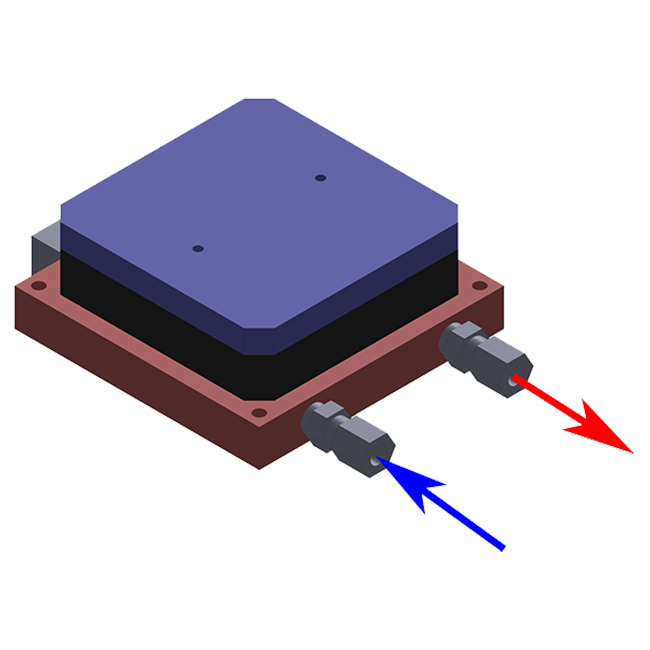

LHP-300CP Series

Compact Liquid Cooled Thermoelectric Cold Plate

  • Style: Bench Top
    Voltage: 12/24 VDC, 24 VDC
    Current: 12/6 AMPS, 6 AMPS
    Operating Ambient: 0/+70 °C
    Minimum Flow: 0.2 GPM
    [fileaway base=”5″ sub=”lhp-150cp-data”]

    Performance Rating:
    Cooling Capacity: 82 WATTS
    Cooling COP: 0.57
    Heating Capacity: 144 WATTS

    Includes:
    • Compression fittings
    • Auxiliary mounting holes
    • Machined cold plate surface

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESVOLTAGE
    VDC
    CURRENT
    AMPS
    LHP-300CP3-7098-0-000
    Heat/Cool
    (heat via reverse polarity)
    12/2412/6

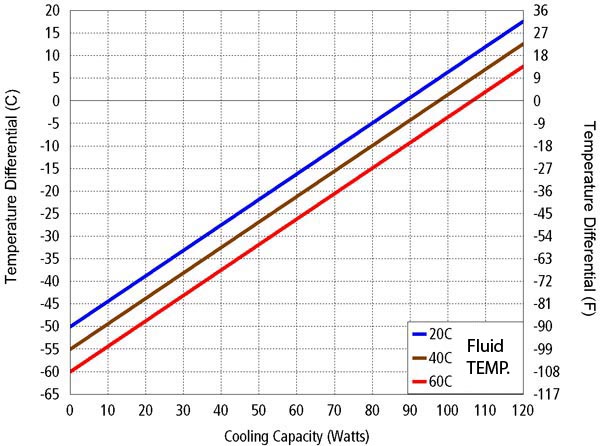

  • Click to open PDF performance curves:
    [fileaway base=”2″ sub=”lhp-300cp-curves”]

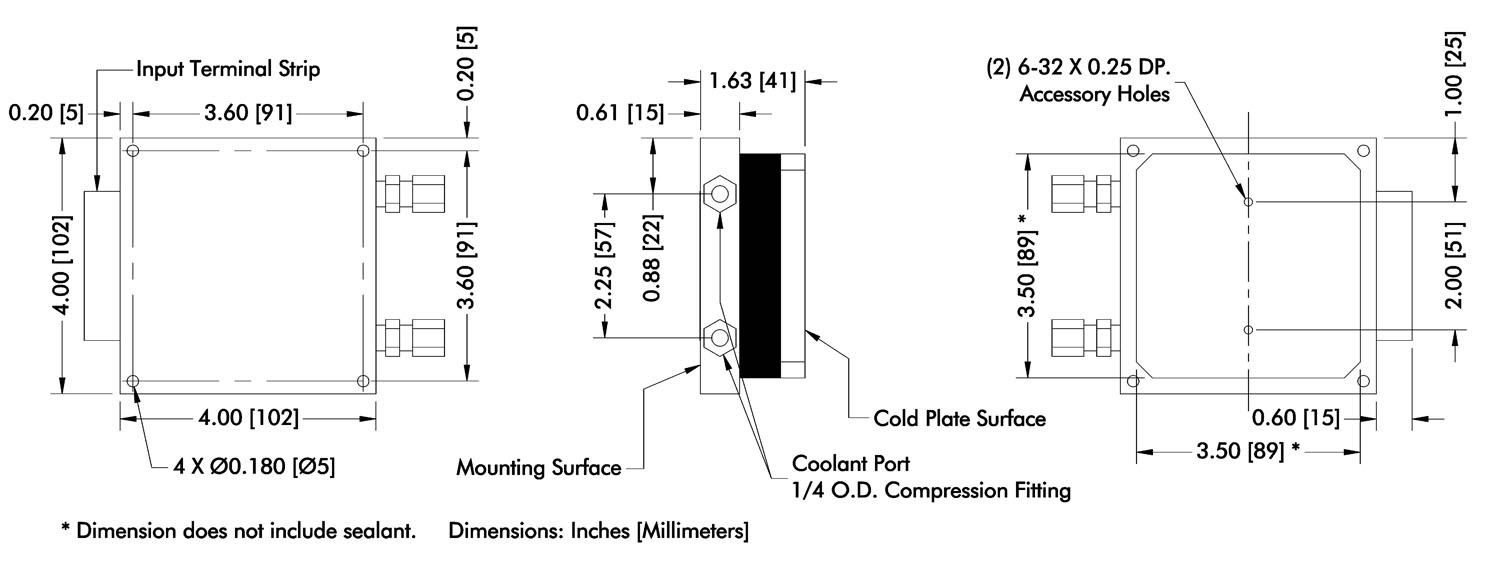

    Click to open files:
    [fileaway base=”4″ sub=”lhp-300cp-drawings”] [fileaway base=”5″ sub=”lhp-150cp-data”]
  • Click to download:

    Solid Model files:
    [fileaway type=”table” base=”3″ sub=”lhp-300cp-models” search=”no” width=”75″]
    Product Manuals:
    [fileaway sub=”lhp-300cp”]
  • Part NumberDescriptionPicture/DrawingData Sheet
    TC-3400Temperature controller, PID typepdf
    Thermocouple-Ring"T" Type thermocouple
    6' long, surface mount
    RTD-RingThree wire RTD, 100 ? with connector
    6' long, surface mount
    RTD-ProbeThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe
    AS150-12Switching power supply
    150 Watts, 12 VDC
    pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC
    pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC
    pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC
    pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf

Features:
• No moving parts
• Direct contact cooling as much as 61 ºC below liquid temperature
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Mounts in any orientation
