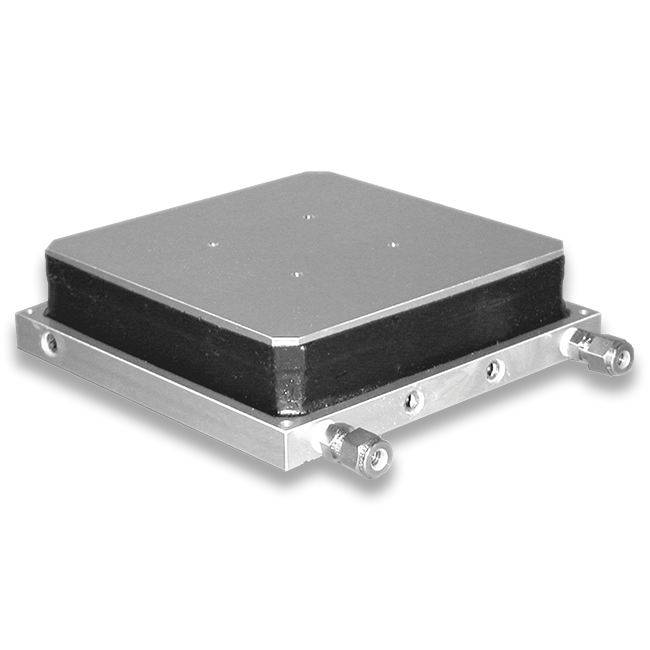

Compact Liquid Cooled Thermoelectric Cold Plate
Style: Bench Top
Voltage: 24 VDC
Current: 14 AMPS
Operating Ambient: 0/+70 °C
Minimum Flow: 0.3 GPM
[fileaway base=”5″ sub=”lhp-150cp-data”]Performance Rating:
Cooling Capacity: 205 WATTS
Cooling COP: 0.61
Heating Capacity: 336 WATTSIncludes:
• Compression fittings
• Auxiliary mounting holes
• Machined cold plate surface- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES VOLTAGE
VDCCURRENT
AMPSLHP-800CP 3-5095-0-000
Heat/Cool

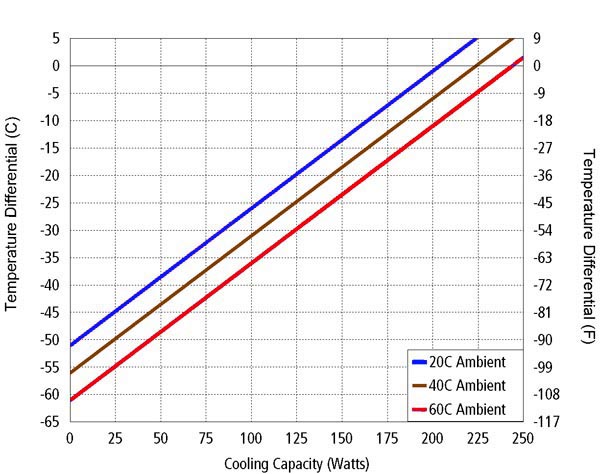

(heat via reverse polarity)24 14 - Click to open PDF performance curves:
[fileaway base=”2″ sub=”lhp-800cp-curves”]Click to open files:

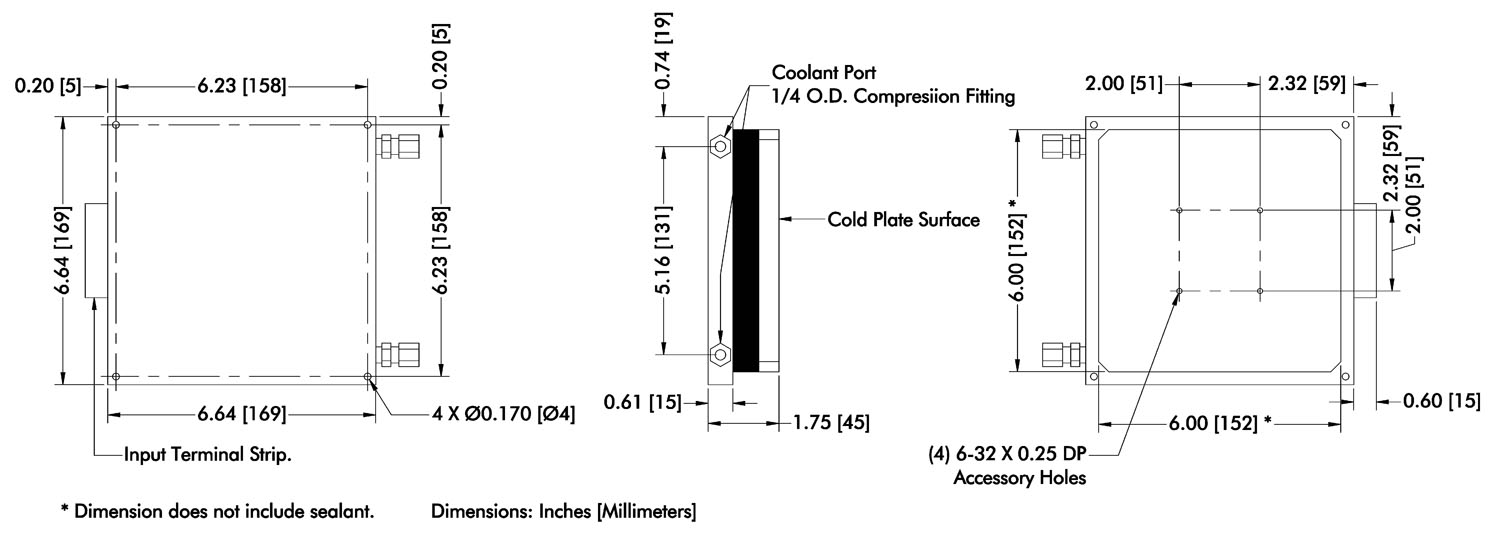

[fileaway base=”4″ sub=”lhp-800cp-drawings”] [fileaway base=”5″ sub=”lhp-150cp-data”]- Click to download:
Solid Model files:
[fileaway type=”table” base=”3″ sub=”lhp-800cp-models” search=”no” width=”75″]Product Manuals:
[fileaway sub=”lhp-800cp”]Features:
• No moving parts
• Direct contact cooling as much as 61 ºC below liquid temperature
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Mounts in any orientation
Resources:
