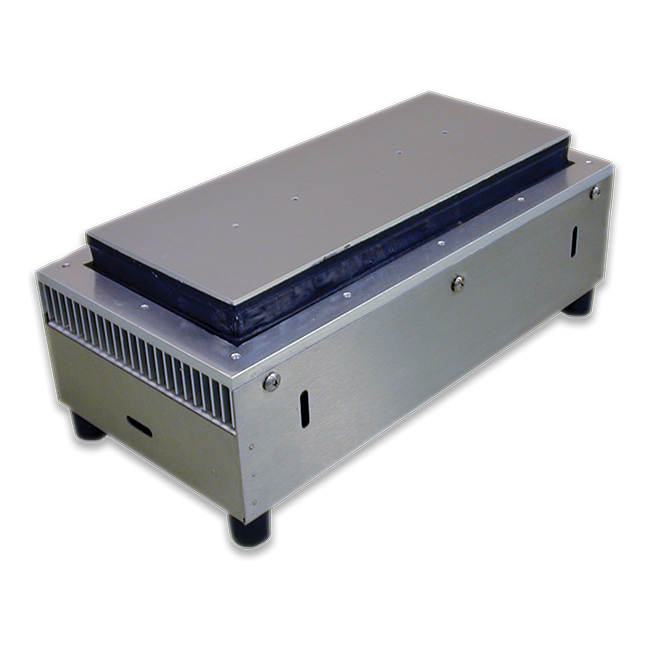

Air Cooled Thermoelectric Cold Plate
Style: Bench Top
Voltage: 120 VAC, 240 VAC, 24 VDC
Current: 4 AMPS, 2.5 AMPS, 9 AMPS
Operating Ambient: -15/+60 °C
Performance Rating:
Cooling Capacity: 240 WATTS @ 0 °C ?T (35 °C Ambient)
Cooling COP: 0.50Includes:
• Integral power supply (120, 240 VAC input)
• Cold plate mounting taps
• Rubber feet
• Power input cord- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES CONTROLLER VOLTAGE VAC (VDC) CURRENT AMPS AHP-1200CP 1-3090-0-000
Cool only None 120 4 AHP-1200CP 1-3050-0-000
Cool only 5-32 VDC external signal 120 4 AHP-1200CPHC 1-3050-1-000
Heat/Cool 5-32 VDC external signal 120 4 AHP-1202CP 1-3092-0-000
Cool only None 240 2.5 AHP-1202CP 1-3052-0-000
Cool only 5-32 VDC external signal 240 2.5 AHP-1202CPHC 1-3052-1-000
Heat/Cool 5-32 VDC external signal 240 2.5 AHP-1200CP 1-3095-0-000
Cool only None (24) 9 AHP-1200CP 1-3055-0-000
Cool only 5-32 VDC external signal (24) 9 AHP-1200CPHC 1-3055-1-000
Heat/Cool 5-32 VDC external signal (24) 9 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Features:
• Direct contact cooling as much as 46 ºC below room temperature
• Weighs only 19 lbs. (8.6 kg)
• Bench top or enclosure mounting
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Mounts in any orientation
