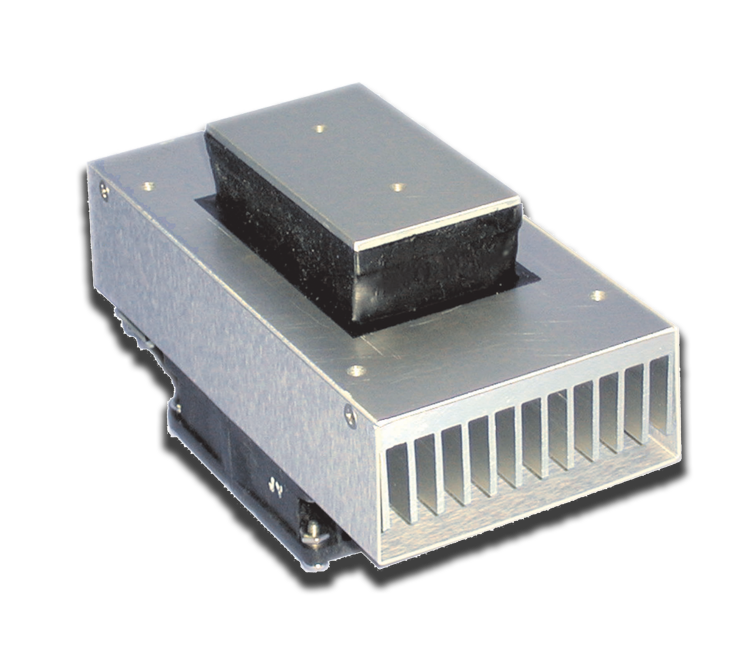

Compact Air Cooled Thermoelectric Cold Plate
Style: Bench Top
Voltage: 12/24 VDC
Current: 6 AMPS, 3 AMPS
Operating Ambient: -15/+60 °C
Performance Rating:
Cooling Capacity: 40 WATTS
Cooling COP: 0.55
Heating Capacity: 72 WATTSIncludes:
• Mounting gasket
• Mounting hardware
• Power input leads- Click on the part numbers to request a quick quote:

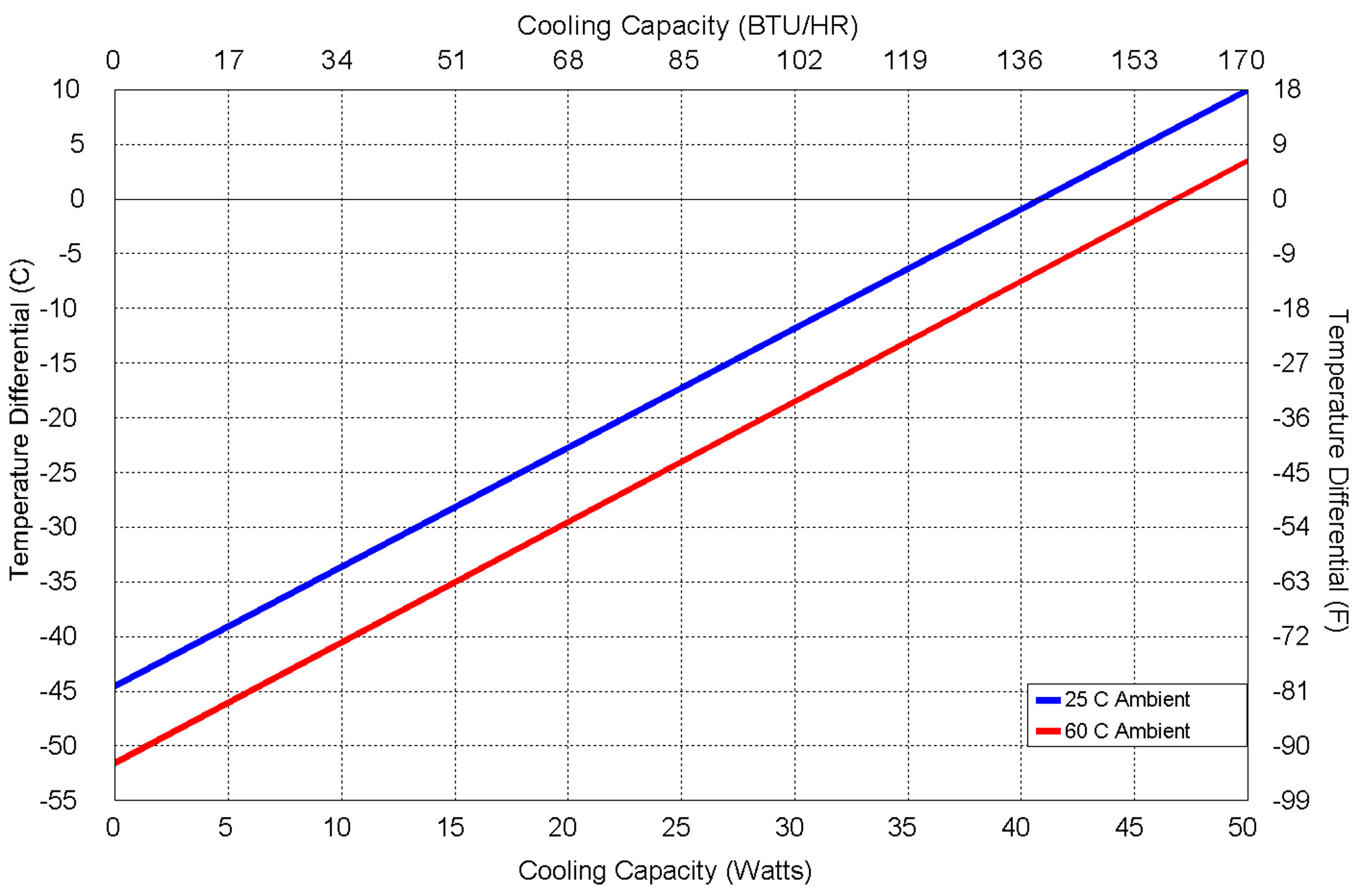

MODEL NUMBER PART NUMBER NOTES VOLTAGE VDC CURRENT AMPS AHP-150CP 1-8098-0-000 Cool only 12 / 24 6 / 3 AHP-150CPHC 1-8098-1-001 Heat / Cool 12 / 24 6 / 3 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Part Number Description Picture/Drawing Data Sheet TC-3400 Temperature controller, PID type
Thermocouple-Ring "T" Type thermocouple
6' long, surface mount
RTD-Ring Three wire RTD, 100 Ω with connector
6' long, surface mount
RTD-Probe Three wire RTD, 100 Ω with connector
6' long, 1/8" DIA probe
AS150-12 Switching power supply
150 Watts, 12 VDCAS150-24 Switching power supply
150 Watts, 24 VDCSP300-12 Switching power supply
300 Watts, 12 VDCSP300-24 Switching power supply
300 Watts, 24 VDCSP500-24 Switching power supply
500 Watts, 24 VDCFeatures:
• Compact (only 7” X 3.63” X 3.95”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fan
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 2.5 LBS. (1.2 KG)
