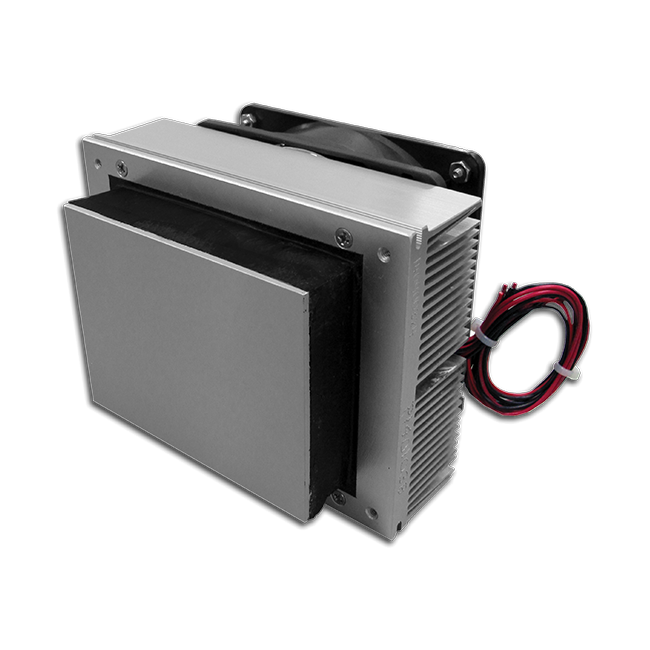

Compact Air Cooled Thermoelectric Cold Plate
Style: Bench Top
Voltage: 12 VDC, 24 VDC
Current: 8 AMPS, 4 AMPS
Operating Ambient: -15/+60 °C
Performance Rating:
Cooling Capacity: 64 WATTS
Cooling COP: 0.67
Heating Capacity: 96 WATTSIncludes:
• Mounting gasket
• Mounting hardware
• Power input leads- Click on the part numbers to request a quick quote:

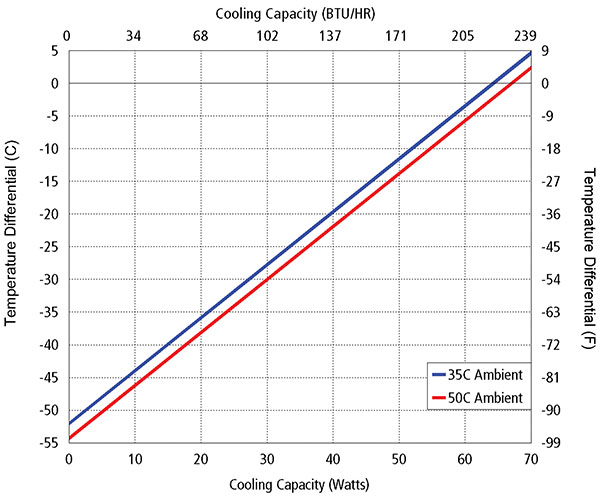

MODEL NUMBER PART NUMBER NOTES VOLTAGE VDC CURRENT AMPS AHP-270CPHC 1-L094-1-001 Heat/Cool 12 8 AHP-270CPHC 1-L095-1-001 Heat/Cool 24 4 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Features:
• Compact (only 6” X 4.75” X 4.4”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fan
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 3.8 LBS. (1.7 KG)
