AHP-451CP

Compact Air Cooled Thermoelectric Cold Plate

  • Style: Bench Top
    Voltage: 120 VAC, 240 VAC
    Current: 1.3 AMPS, 0.6 AMPS
    Operating Ambient: -15/+60 °C

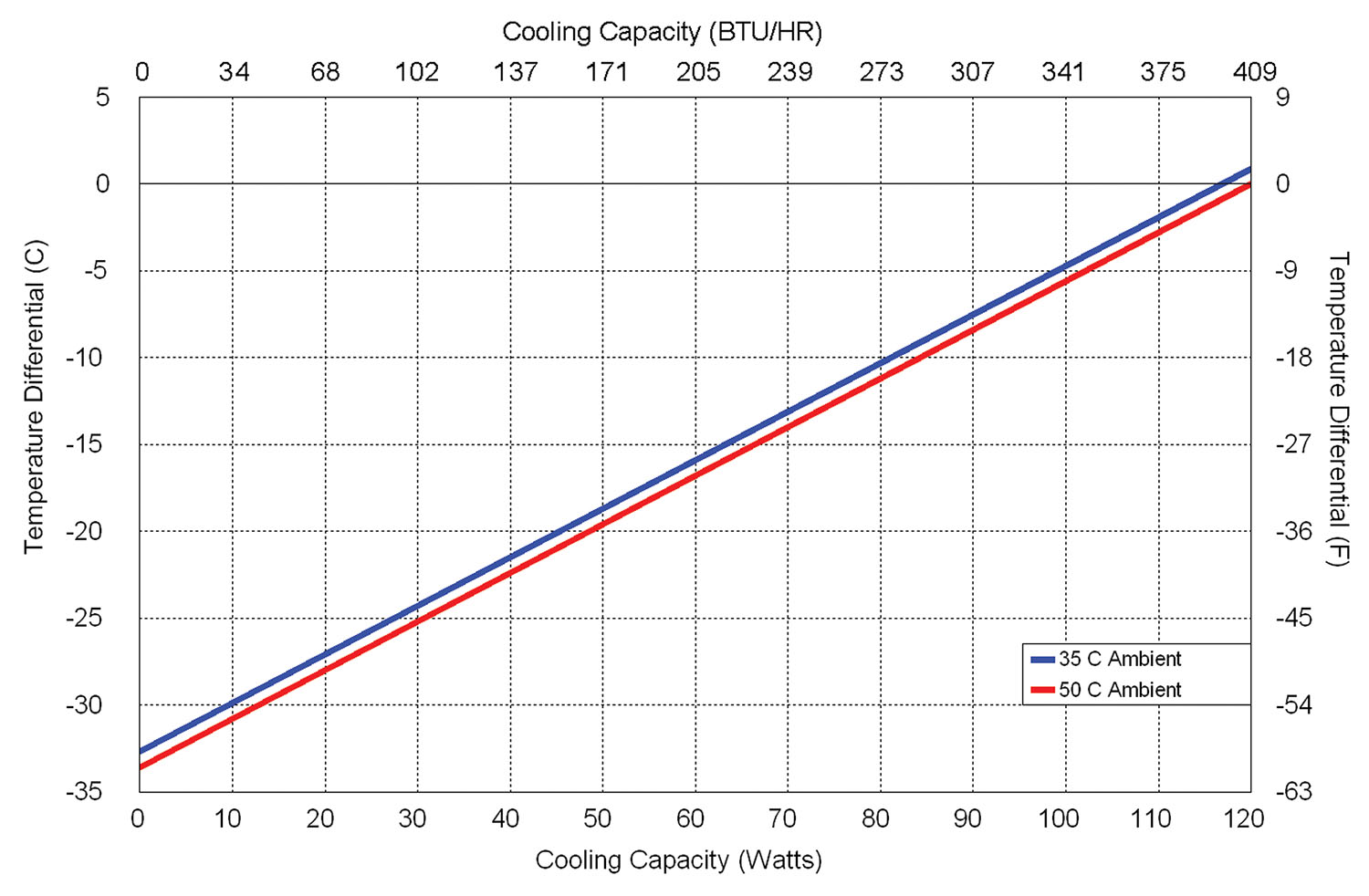

    Performance Rating:
    Cooling Capacity: 117 WATTS
    Cooling COP: 0.76

    Includes:
    • Mounting gasket
    • Mounting hardware
    • Power input cord

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VACCURRENT AMPS
    AHP-451CP1-F090-0-000
    Cool onlyNone1201.2
    AHP-451CP1-F050-0-000
    Cool only5-32 VDC external signal1201.2
    AHP-451CPHC1-F050-1-000
    Heat/Cool5-32 VDC external signal1201.2
    AHP-452CP1-F092-0-000
    Cool onlyNone2400.6
    AHP-452CP1-F052-0-000
    Cool only5-32 VDC external signal2400.6
    AHP-452CPHC1-F052-1-000
    Heat/Cool5-32 VDC external signal2400.6
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Ahp 401cp 451cp 9:03 am 09/01/201610.8M

    PDF
    Ahp 401cp 451cp 9:03 am 09/01/20161.1M

    SLDP
    Ahp 401cp 451cp 9:03 am 09/01/20162.2M

    STEP
    Ahp 401cp 451cp 9:03 am 09/01/20165.1M
  • Part NumberDescriptionPicture/DrawingData Sheet
    TC-3400Temperature controller, PID typepdf
    Thermocouple-Ring"T" Type thermocouple
    6' long, surface mount
    RTD-RingThree wire RTD, 100 Ω with connector
    6' long, surface mount
    RTD-ProbeThree wire RTD, 100 Ω with connector
    6' long, 1/8" DIA probe

Features:
• Flat aluminum plate (8” x 4.70”) [203 x 119] • Standard 6-32X.25 UNC inserts
• Compact (only 10” x 5.84” x 6.72”) [254 x 148 x 170] • Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fan
• Environmentally safe
• No compressor, fluorocarbon or filters
• Heating via embedded resistive heater
• Virtually maintenance-free operation
• Pivot clean feature
• Weighs less than 12 LBS. (5.5 KG)
