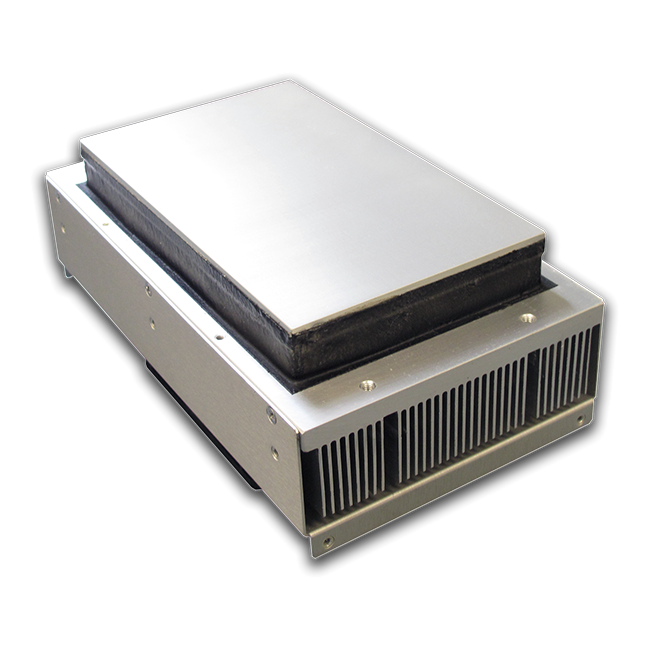

Compact Air Cooled Thermoelectric Cold Plate
Style: Bench Top
Voltage: 24 VDC, 12 VDC
Current: 5.2 AMPS, 10 AMPS
Operating Ambient: -15/+60 °C
[fileaway base=”5″ only=”ahp-470cp data sheet.pdf”]Performance Rating:
Cooling Capacity: 105 WATTS
Cooling COP: 0.84
Heating Capacity: 125 WATTSIncludes:
• Mounting gasket
• Mounting hardware
• Power input leads- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES VOLTAGE
VDCCURRENT
AMPSAHP-470CPHC 1-F095-1-001
Heat/Cool 24 5.2 AHP-470CPHC 1-F094-1-001
Heat/Cool 12 10 - Click to open PDF performance curves:
[fileaway base=”2″ sub=”ahp-470cp-curves”]Click to open files:
[fileaway base=”4″ sub=”ahp-400cp-drawings”] [fileaway base=”5″ only=”ahp-470cp data sheet.pdf”]- Click to download:
Solid Model files:
[fileaway type=”table” base=”3″ sub=”ahp-400cp-models” search=”no” width=”75″]Product Manuals:
[fileaway sub=”ahp-470cp”]Features:
• Flat aluminum plate (8” x 4.70”) [203 x 119] • Standard 6-32X.25 UNC threads
• Compact (only 10” x 5.76” x 4.45”) [254 x 146 x 113] • Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fan
• Environmentally safe
• No compressor, fluorocarbons or filters
• Cools and heats via reverse polarity
• Virtually maintenance-free operation
• Pivot clean
• Weight 7 LBS. (3.2 KG)
