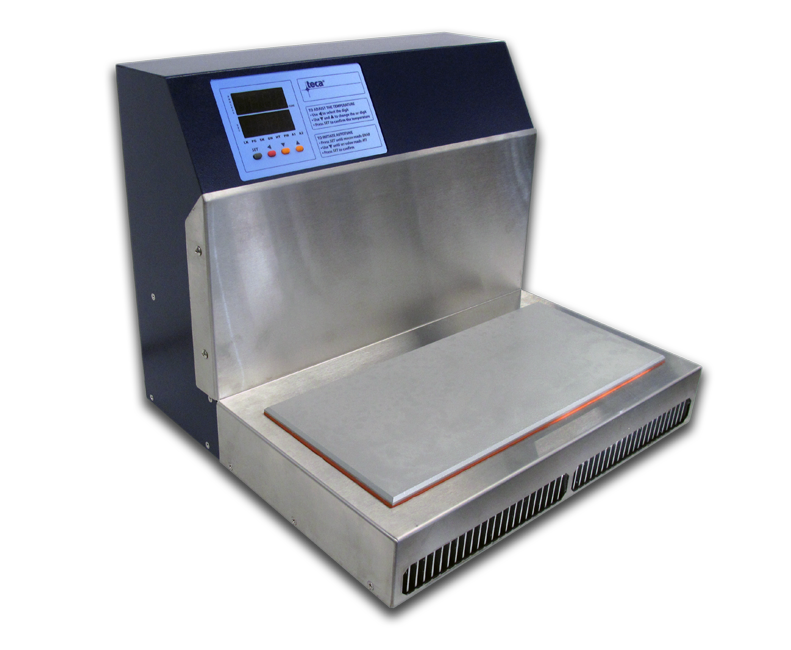

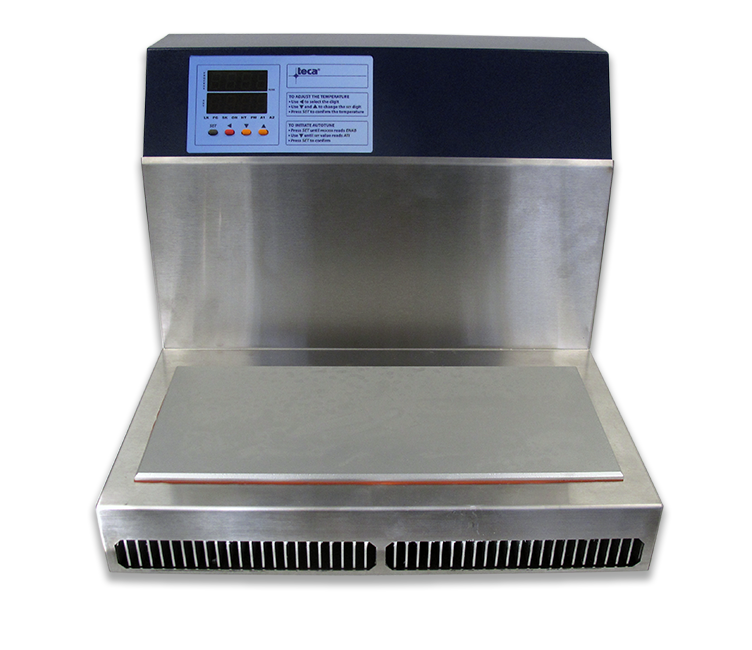

ERGO-900

Ergonomic Air Cooled Cold Plate For Laboratory:

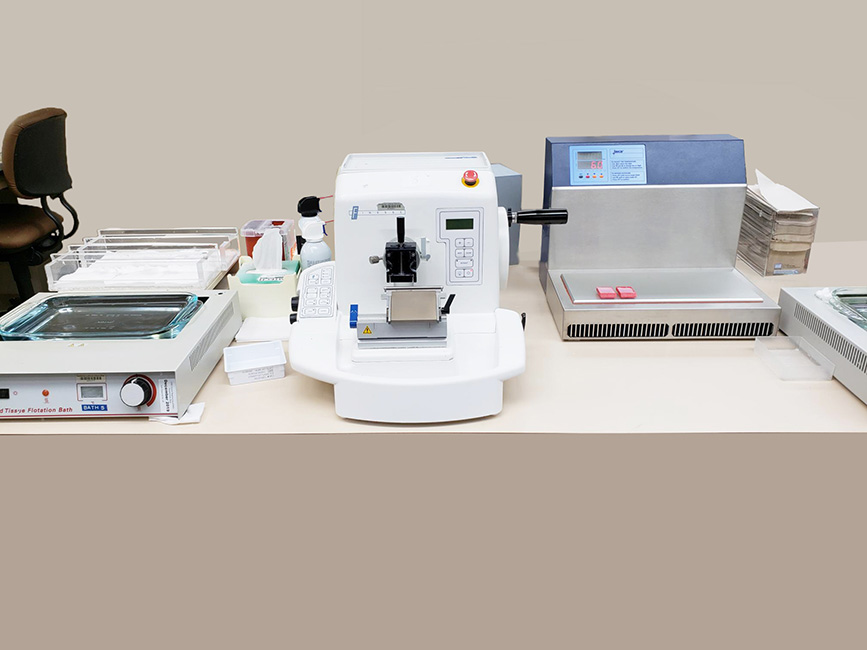

Ideal for histology labs or anywhere a quiet, low-profile cold surface is needed. At just over 2.5 inches high it is scaled down for use at individual microtome stations. The ERGO-900 is built with Peltier technology, which is known for its longevity and low maintenance needs. Competing readily with other embedding center cold plates, TECA’s ERGO-900 can uniquely be used either with existing paraffin dispensing centers or with individual sectioning stations. TECA’s Model ERGO-900 is a reliable, virtually maintenance-free Peltier plate which uses a quiet fan and a design optimized for robust performance.

  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC
    Current: 3.5-1.4 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cold Plate Temperature Range: -5 °C to 50 °C (25 °C Ambient)
    Ambient Temperature Range: 0 °C to 50 °C

    Includes:
    • Integral Power Supply
    • Integral PWM Temperature control
    • USB comms port
    • Remote Sensibility
    • Low noise & low vibrations

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • 4 Temperature zone with 4 independent PID settings
    • Multi-segment ramp and soak programmable
    • Internal RTD sensor
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB Communication with easy to use software
    • Labview VI examples

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    ERGO-9009-34KB-1-ERG
    100-2403.5-1.4

  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    ERGO 900 2:02 pm 01/16/201913.7M

    PDF
    ERGO 900 2:02 pm 01/16/20191M

    SLDP
    ERGO 900 2:02 pm 01/16/20194.8M

    STEP
    ERGO 900 2:02 pm 01/16/20197.7M

Features:
• Cools and heats (-25 °C to 50 °C)
• Precision machined anodized aluminum cold plate surface
• Stainless steel threaded inserts available (standard & custom patterns)
• Easy to clean stainless steel apron
• Integral PWM temperature controller
• 100-240 VAC universal input
• Ergonomic low-profile design
• Low noise and low vibrations
• Weighs less than 30 lbs. (13.6 kg)
• Operating ambient temperature range of 0 °C to 50 °C
• Compact bench top footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
