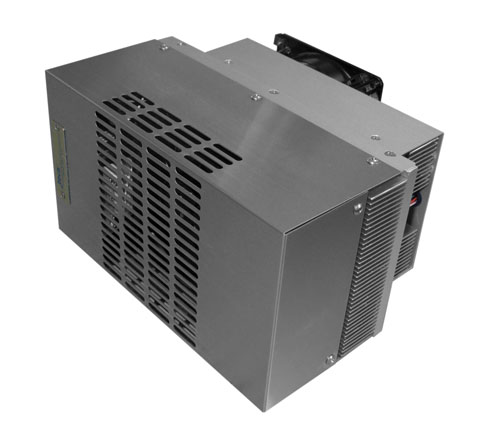

AHP-570 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 90 Watts (303 BTU/HR):

TECA’s AHP-570 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-570 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

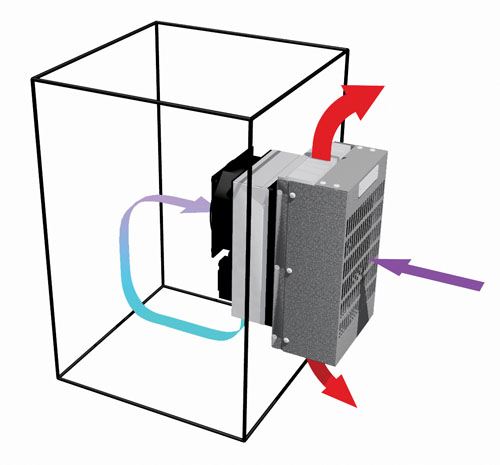

  • Mounting Style: Through Mounted
    Voltage: 24 VDC (12 VDC configuration available)
    Current: 3 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    303 BTU/HR
    Cooling (Din 3168): 90 WATTS
    Cooling COP (at L35 L35): 1.25
    Heating (Traditional): > 245 BTU/HR
    Heating (Din 3168): > 72 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-5700-G0J5-0-000
    Cool onlyTC-4FIndoors
    AHP-570HC0-G095-1-000
    Heat/CoolNoneIndoors
    AHP-570HC0-G0I5-1-000
    Heat/CoolTC-7FIndoors
    AHP-570XE0-G0J5-4-000
    Cool onlyTC-4FOutdoors
    AHP-570XEHC0-G095-5-000
    Heat/CoolNoneOutdoors
    AHP-570XEHC0-G0I5-5-000
    Heat/CoolTC-7FOutdoors
    AHP-570X0-G0J5-2-000
    Cool onlyTC-4FOutdoors/Military
    AHP-570XHC0-G095-3-000
    Heat/CoolNoneOutdoors/Military
    AHP-570XHC0-G0I5-3-000
    Heat/CoolTC-7FOutdoors/Military
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    SLDP
    Ahp 400 9:01 am 09/01/20162.6M

    IGS
    Ahp 400-500 9:01 am 09/01/201620.5M

    STEP
    Ahp 400-500 9:01 am 09/01/20168.1M

    dwg
    Ahp 400-500 9:01 am 09/01/2016845.8k

    pdf
    Ahp 400-500 9:01 am 09/01/20163.2M
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC
    pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC
    pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC
    pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC
    pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.
