Low Temperature Liquid Cooled Cascade For Use With Liquid Chillers
- Click on the part numbers to request a quick quote:
PART NUMBER COLD PLATE SIZE
INCHESVOLTAGE
VDCCURRENT

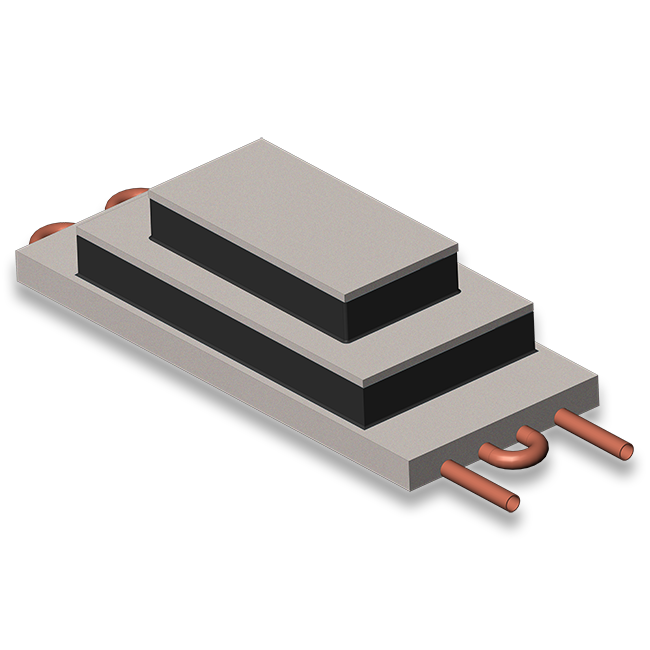

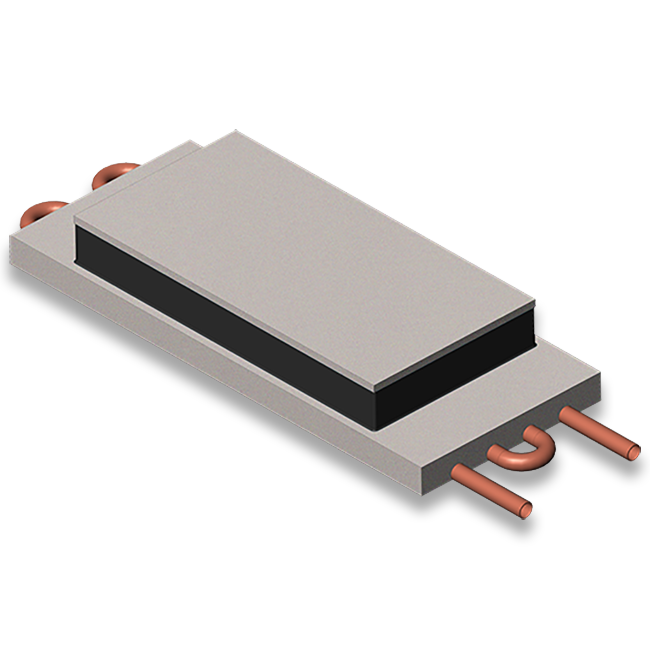

AMPSLCP-22

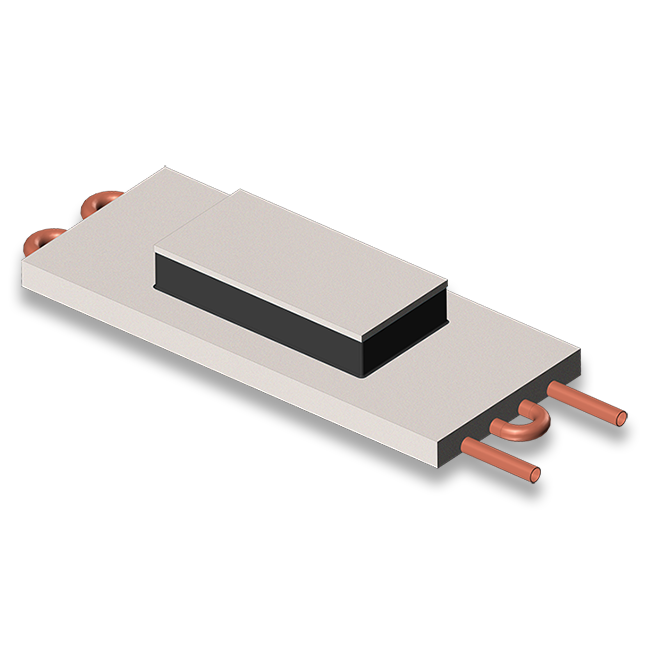

8.8 x 4.5 24 4.6 LCP-21
6 X 3 24 2.5 LCP-31

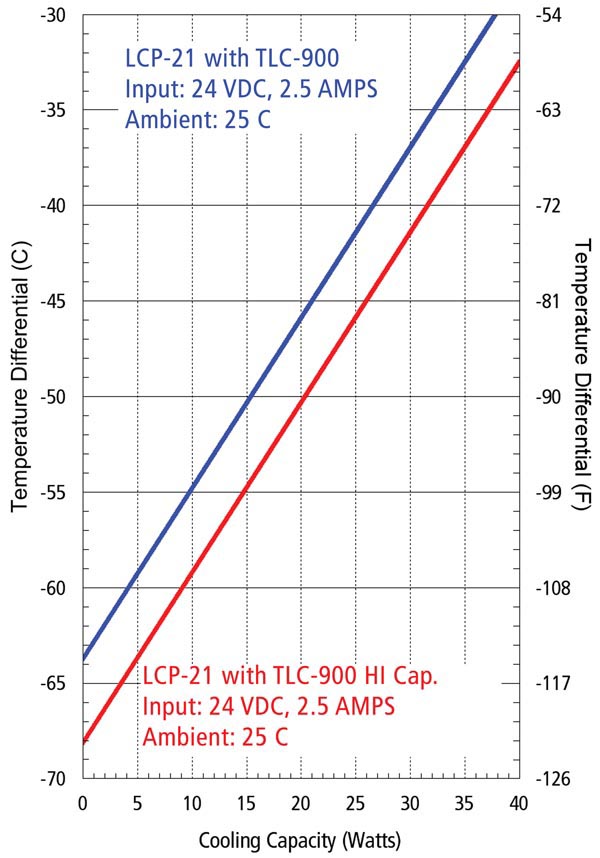

6 X 3 24 & 12 4.6 & 2.5 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Features:

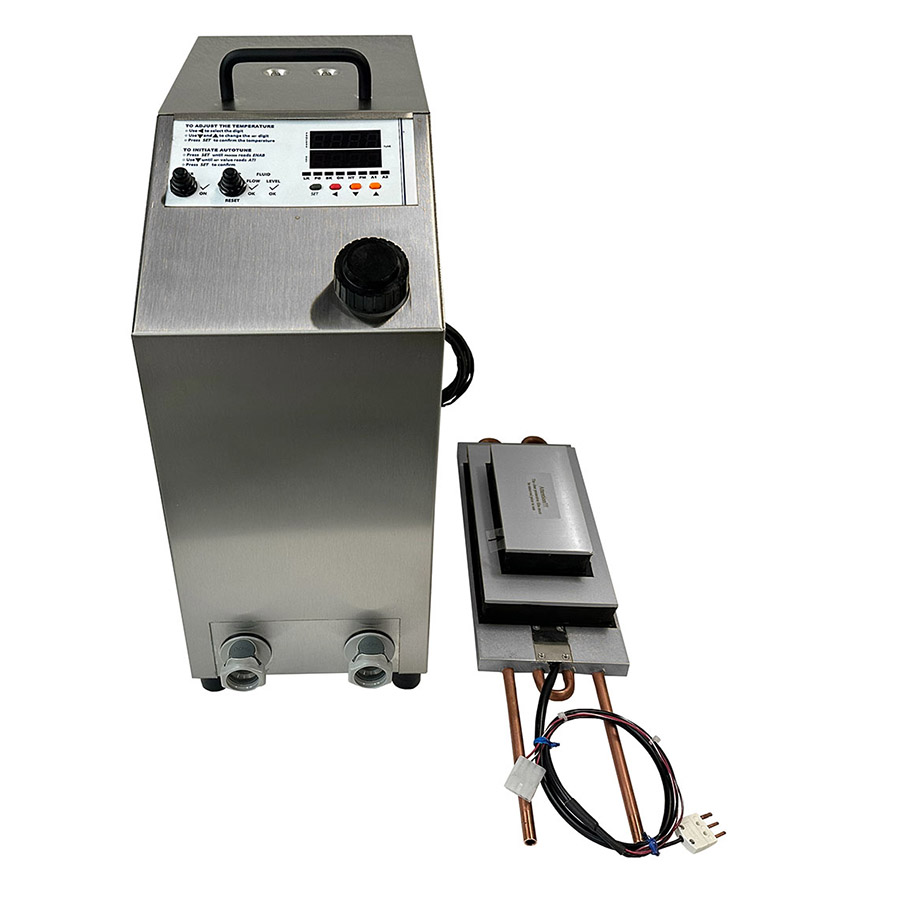

One thermoelectric stacked on top of another with the goal of increasing the maximum temperature differential is a “cascade”. Use these assemblies with the liquid chiller to create 2 and 3 stage cascades. The performance will vary with the degree of insulation, with the amount of the active load and with the ambient temperature.
