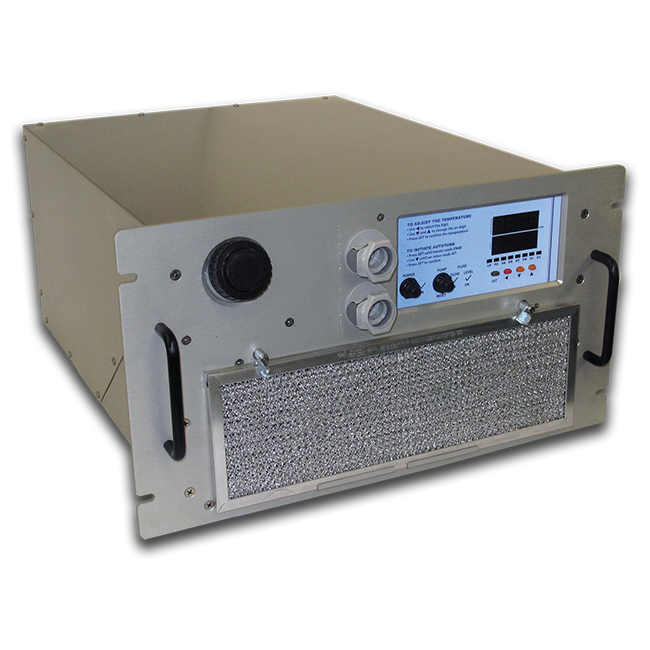

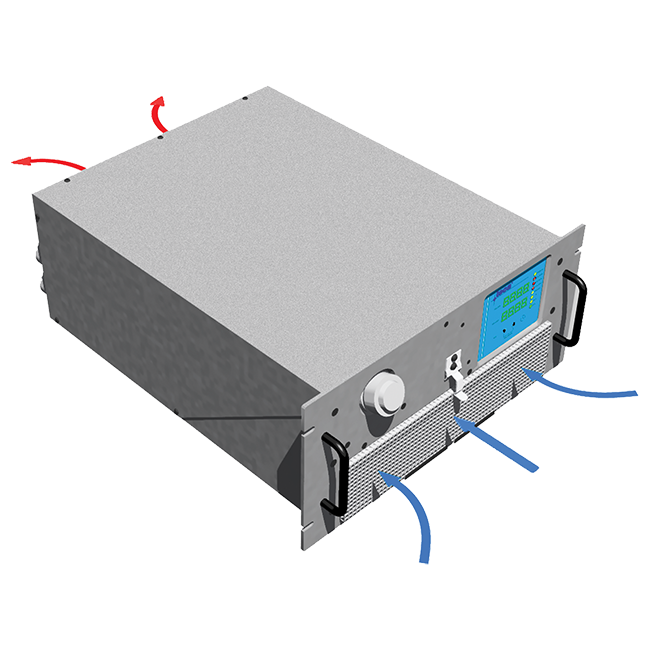

Rack Mount Thermoelectric Liquid Chiller
Style: Rack mount recirculating liquid chiller
Voltage: 100-240 VAC
Current: 8.4-3.5 AMPS
Operating Ambient: 0/+50 °C
Performance Rating:
Cooling Capacity: 620 WATTSIncludes:
• Integral Power Supply
• Integral PWM Temperature control
• USB comms port
• Remote Sensibility
• Pump (4 pump options)
• ReservoirController Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Programable temperature zones with 4 independent PID settings
• Multi-segment ramp and soak programs with loops
• Internal RTD sensor, built into the fluid circuit
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB communication with easy to use software
• Labview VI examples available- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER PUMP OPTION VOLTAGE
VACCURRENT
AMPSOPERATING AMBIENT
MAX °CFLUID TEMPERATURE
RANGE °CRLC-1800 8-04KB-1-0A1
1 (Mag drive, can pump) 100-240 8.4-3.5 50 0 / +50 RLC-1800 8-04KB-1-0A2
2 (Mag drive, impeller pump) 100-240 8.4-3.5 50 -20 / +90 RLC-1800 8-04KB-1-0A3
3 (Gear pump) 100-240 8.4-3.5 50 -20 / +90 RLC-1800 8-04KB-1-0A4
4 (Mag drive, can pump) 100-240 8.4-3.5 50 0 / +50 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals, Software:
Part Number Description Drawing Data Sheet LCP-22 Liquid cooled cascade
plate surface: 8.8 x 4.5
delta T: -58 C
LCP-21 Liquid cooled cascade
plate surface: 6.0 x 3.0
delta T: -68 CLCP-31 Liquid cooled cascade
plate surface: 6.0 x 3.0
delta T: -76 CLCP-10-06 Liquid cooled plate
size: 6" x 5"LCP-10-12 Liquid cooled plate
size: 12" x 5"FC10-01 Fan coil, heat exchanger
single fanFC20-01 Fan coil, heat exchanger
dual fanQCM-F3/8NPT Fitting: male quick connect x female 3/8 NPT QCM-F1/4NPT Fitting: male quick connect x female 1/4 NPT QCM-M1/2NPT Fitting: male quick connect x male 1/2 NPT QCM-M3/8NPT Fitting: male quick connect x male 3/8 NPT QCM-3/8B Fitting: Male quick connect x 3/8 barb
QCM-1/4B Fitting: Male quick connect x 1/4 barb QCM-3/16B Fitting: Male quick connect x 3/16 barb QCM-3/8BE Fitting: Male quick connect x 3/8 barb elbow QCHM-M1/2NPT Fitting: High temperature male quick connect x 1/2 MNPT
QCHM-3/8B Fitting: High temperature male quick connect x 3/8 barb QCHM-1/2B Fitting: High temperature male quick connect x 1/2 barb QCHM3/4B Fitting: High temperature male quick connect x 3/4 barb QCHM3/4B Fitting: High temperature male quick connect x 3/4 barb FBL-100 Low profile filter body and bowl FML-20 Filter screen, 20 Mesh (915 Micron) FML-40 Filter screen, 40 Mesh (480 Micron) FML-80 Filter screen, 80 Mesh (178 Micron) FML-100 Filter screen, 100 Mesh (80 Micron) FML-250 Filter screen, 250 Mesh (40 Micron) RTD-RING Three wire RTD, 100 Ω with connector
6' long, surface mount
RTD-PROBE Three wire RTD, 100 Ω with connector
6' long, 1/8" DIA probe
HOSE-01 Standard hose, 3/8" ID HOSE-02 High temperature hose, 3/8" ID INS-01 Single hose insulation, 5/8" ID 6' long Features:
• Compact only 19” x 25” x 10.5”
• Front and rear fluid ports
• Heats and cools 0 to 50 °C or -20 to 90 °C
• Standard 19” rack mounting
• Low pressure drop 3/8 ID fluid quick connects
• Remote SensibilityTM
• User friendly front fill design
• Easy prime/pump reset feature
• Wide process fluid temperature range
• Stainless steel exterior housing
• Over temperature protection
• External washable aluminum air filter
