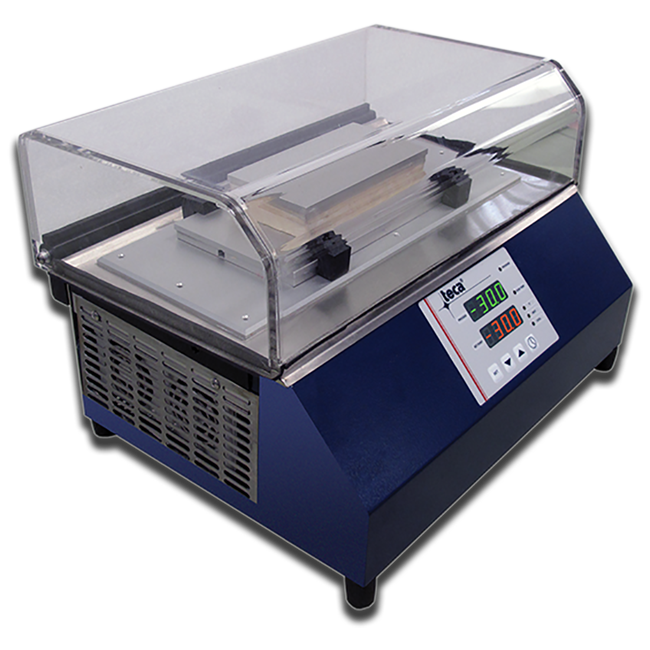

LHP-1200CAS

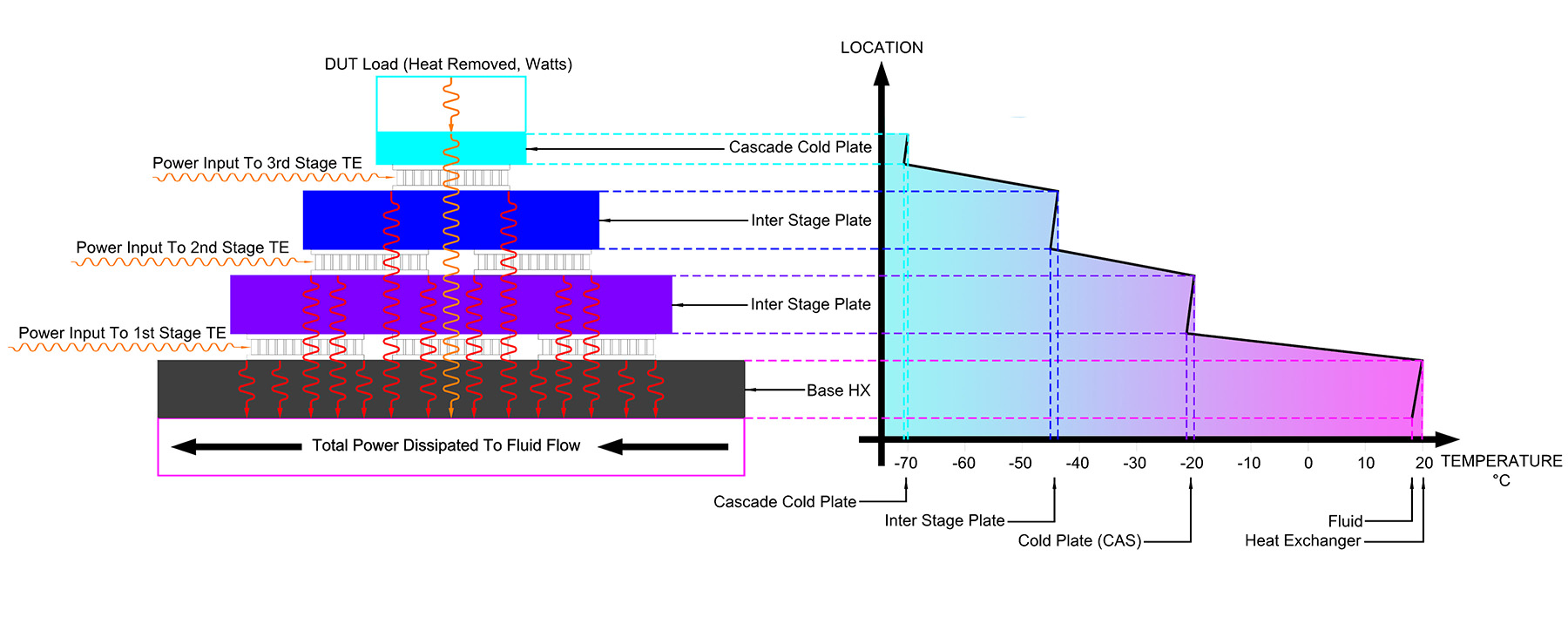

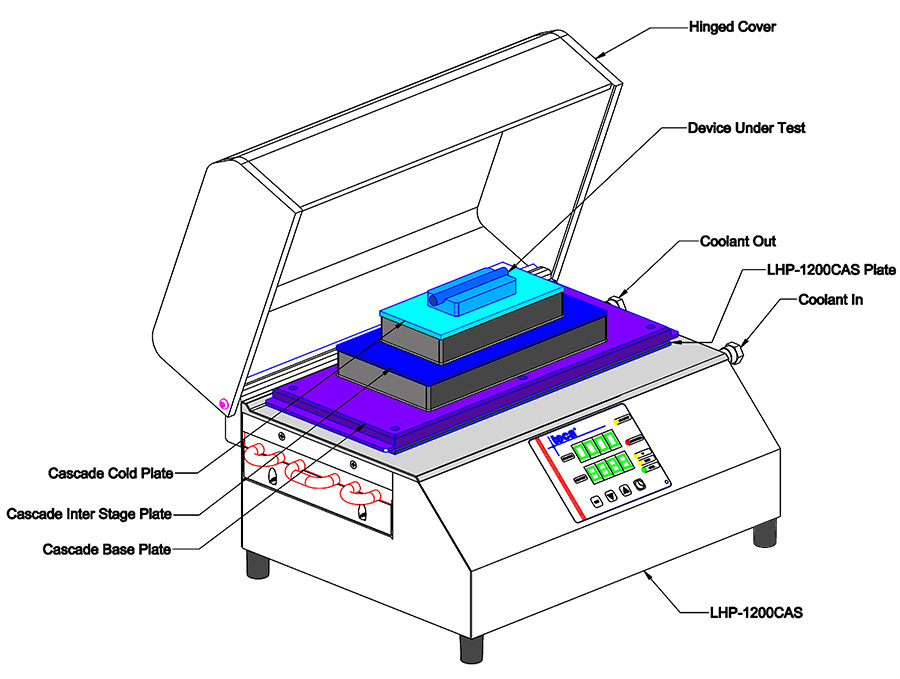

Liquid Cooled Laboratory Cold Plate For Use With Low Temperature Cascades


  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC
    Current: 9.5-5.0 AMPS
    Operating Ambient: 0/+50 °C

    Maximum ?T (load=0 watts) :
    LHP-1200CAS: -54 °C
    LHP-1200C22: -72 °C
    LHP-1200C21: -82 °C
    LHP-1200C31: -90 °C
    Minimum Coolant Flow:1 liter/min

    Includes:
    • Integral Power Supply
    • Integral PWM Temperature control
    • USB comms port
    • Remote Sensibility
    • Hinged cover

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • 4 Temperature zone with 4 independent PID settings
    • Multi-segment ramp and soak programmable
    • Internal RTD sensor
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB Communication with easy to use software
    • Labview VI examples

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERCASCADED IINCLUDEDCOLD PLATE SIZEVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    COLD PLATE
    TEMP. RANGE °C
    LHP-1200CAS3-35KB-1-CAS
    None13.3" x 5.8"100-2409.5-4.0-30 / +90
    LHP-1200C223-35KB-1-C22
    CCP-228.8" x 4.5"100-24010-4.2-50/ +90
    LHP-1200C213-35KB-1-C21
    CCP-216.0" x 3.0"100-2409.8-4.0-55 / +90
    LHP-1200C313-35KB-1-C31
    CCP-316.0" x 3.0"100-24010.2-4.4-60 / +90
    LHP-1200CPV3-35KB-6-CAS
    None13.3" x 5.8"100-2409.5-4.0-30 / +90
    LHP-1200C223-35KB-6-C22
    CCP-22H8.8" x 4.5"100-24010-4.2-50 / +90
    LHP-1200C213-35KB-6-C21
    CCP-21H6.0" x 3.0"100-2409.8-4.0-55 / +120
    LHP-1200C313-35KB-6-C31
    CCP-31H6.0" x 3.0"100-24010.2-4.4-60 / +120
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    LHP 1200CAS 2nd GEN 9:40 am 09/01/2016157M

    SLDP
    LHP 1200CAS 2nd GEN 9:42 am 09/01/201637.7M

    STEP
    LHP 1200CAS 2nd GEN 9:47 am 09/01/201688.7M

    pdf
    LHP 1200CAS 2nd GEN 9:40 am 09/01/201618.1M
  • Part NumberDescriptionDrawing/PictureData Sheet
    ACP-1200Accessory Plate
    Material: Clear anodized aluminum
    Size: 13.3" X 5.77" Surface
    dwgpdf
    GP-1200Pyrex Plate
    Material: Clear Borosilicate
    Size: 13.30" X 5.77" X 0.125"
    pdf
    C-1200Clear Cover
    Material: Clear Acrylic
    Size: 15" X 8" X 5"
    dwgpdf
    CN-1200Clear Cover
    Material: Clear Acrylic
    Size: 15" X 8" X 5"
    dwgpdf
    CH-1200Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 9.3" X 5"
    dwgpdf
    CHN-1200Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 9.3" X 5"
    dwgpdf
    BH-1200Barrier
    Material: Clear Acrylic
    Size: 14.2" X 6.7" X H (height)
    Part Number: BH-1200 (H = height in inches 3", 6", 9" standard)
    example B6-1200, B9-1200
    dwgpdf
    AD-1200Air Deflector
    Material: Stainless Steel, Painted
    Size: 4" X 2"
    dwgpdf
    CWB-01Cold Well
    Material: Clear Anodized Aluminum
    Includes: PVC insulation, cover and clamps
    Size: 15.85" X 8.96" X 7.71"
    Accomodates 4 X 1000 mL Boston Round bottles
    for other configurations consult TECA
    dwgpdf
    ICE-12006 Liter Aluminum bead bath
    Electric ice bucket
    dwg
    TT-1200Thermal Transfer Pad
    Size: 13.3" x 5.77" x 0.125"
    RTD-RingThree wire RTD, 100 ? with connector
    6' long, surface mount
    TT-16X8Thermal Transfer Pad
    Size: 16" x 8" x 0.125"
    RTD-ProbeThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe

Features:
• Precision machined anodized aluminum cold plate surface
• Stainless Steel threaded inserts
• Easy clean stainless steel apron
• Cools down to -50 °C
• Heats up to 150 °C
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs less than 30 lbs. (13.6 kg)
• Operating ambient range 0 °C to 50 °C
• Compact bench top unit, 11.2” X 15.1” footprint
• Hinged clear acrylic cover
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Provides power and control to cascades
