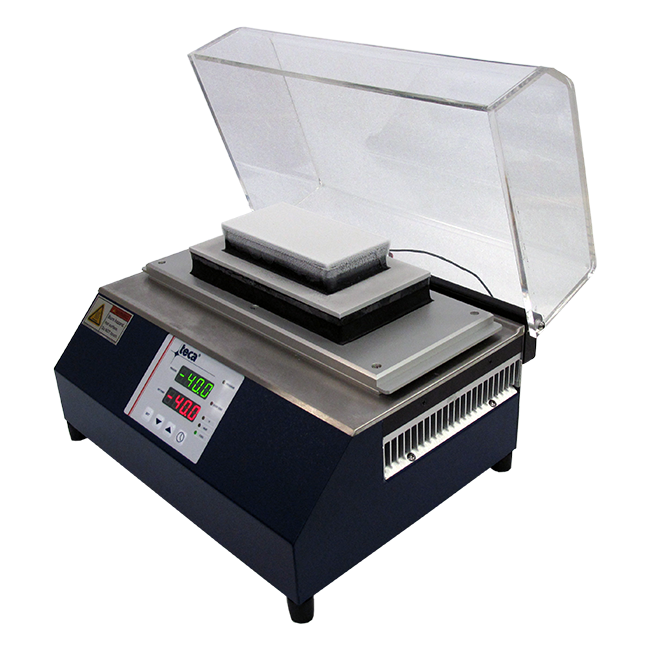

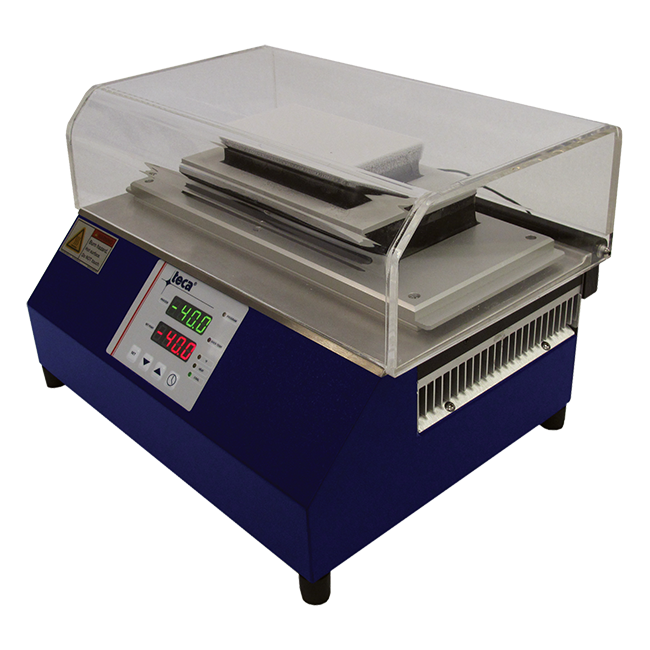

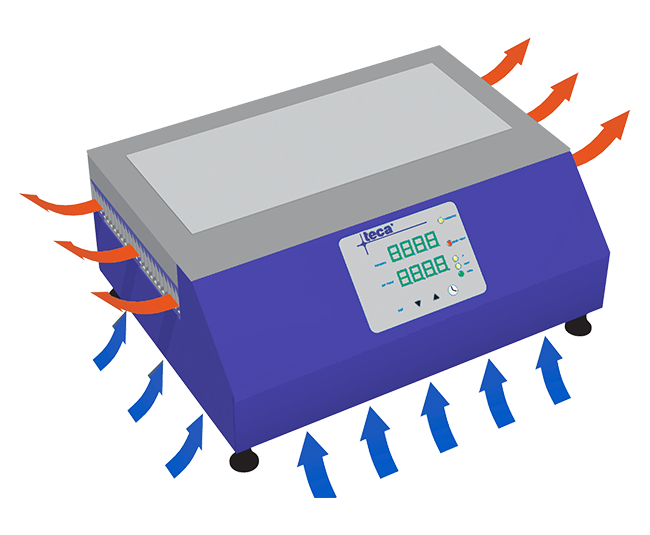

Air Cooled Laboratory Cold Plate For Use With Low Temperature Cascades
Style: Bench Top, Laboratory
Voltage: 100-240 VAC
Current: 8-3.4 AMPS
Operating Ambient: 0/+50 °C

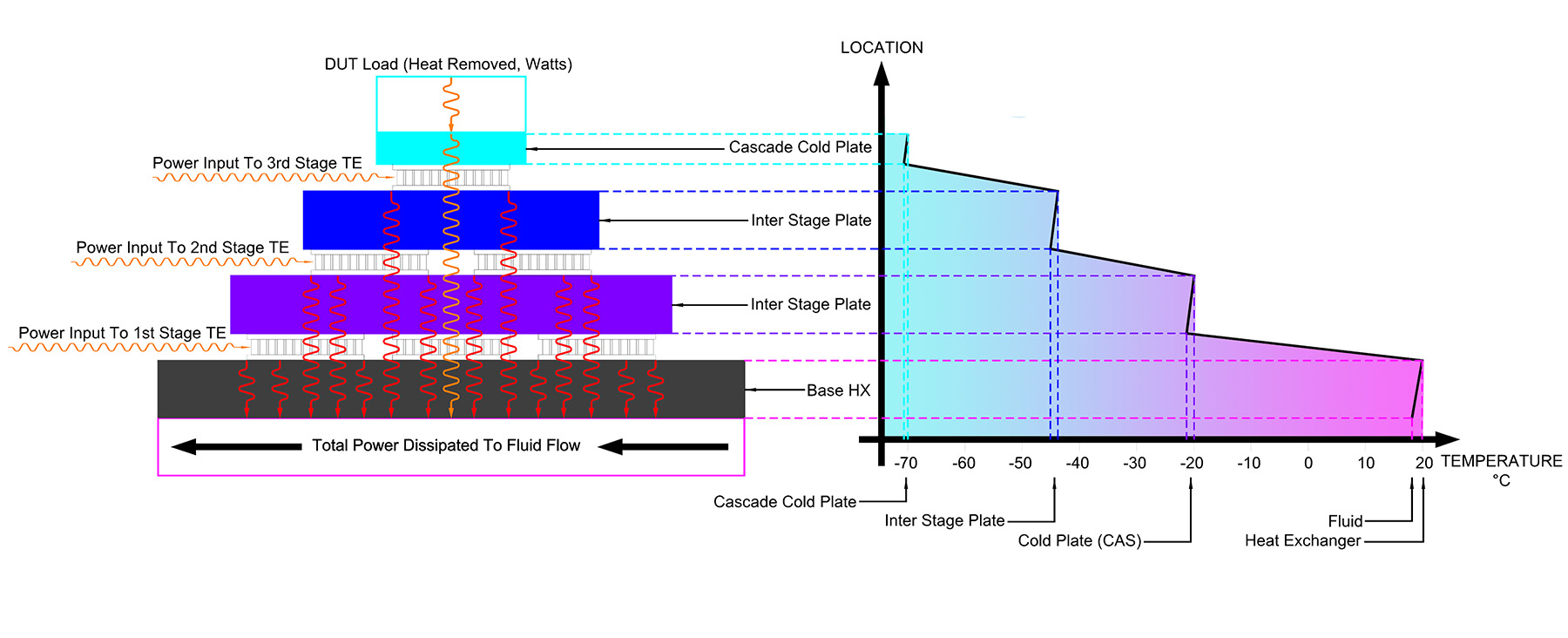

Maximum ?T (load=0 watts) :
AHP-1200CAS: -45 °C
AHP-1200C22: -59 °C
AHP-1200C21: -68 °C
AHP-1200C31: -76 °C
Includes:
• Integral Power Supply
• Integral PWM Temperature control
• USB comms port
• Remote Sensibility
• Hinged coverController Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Temperature zone with 4 independent PID settings
• Multi-segment ramp and soak programmable
• Internal RTD sensor
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB Communication with easy to use software
• Labview VI examples- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER CASCADED IINCLUDED COLD PLATE SIZE VOLTAGE
VAC (VDC)CURRENT
AMPSCOLD PLATE
TEMP. RANGE °CAHP-1200CAS 9-35KB-1-CAS
None 13.3" x 5.8" 100-240 6.0-2.5 -20 / +90 AHP-1200C22 9-35KB-1-C22
CCP-22 8.8" x 4.5" 100-240 7.9-3.3 -30/ +90 AHP-1200C21 9-35KB-1-C21
CCP-21 6.0" x 3.0" 100-240 7.7-3.2 -40 / +90 AHP-1200C31 9-35KB-1-C31
CCP-31 6.0" x 3.0" 100-240 8.1-3.4 -50 / +90 AHP-1200CPV 9-35KB-6-CAS
None 13.3" x 5.8" 100-240 6.0-2.5 -20 / +90 AHP-1200C22 9-35KB-6-C22
CCP-22H 8.8" x 4.5" 100-240 7.9-3.3 -30 / +90 AHP-1200C21 9-35KB-6-C21
CCP-21H 6.0" x 3.0" 100-240 7.7-3.2 -40 / +120 AHP-1200C31 9-35KB-6-C31
CCP-31H 6.0" x 3.0" 100-240 8.1-3.4 -50 / +120 - Click to open PDF performance curves:

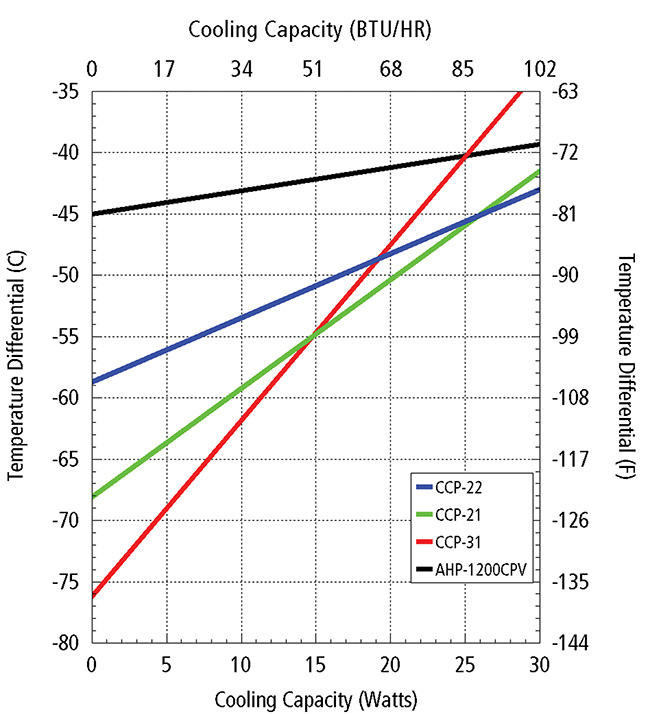

File Type Download AHP-1200CAS-CCP31-response-covered-50-percent-fan-speed PDF Download AHP-1200CAS-CCP31-Range PDF Download AHP-1200CAS-CCP31-Range-covered-50per-cent-fan-speed PDF Download AHP-1200CAS-CCP31-Insulated-and-covered PDF Download AHP-1200CAS-CCP31-delta-T-Insulated-and-covered PDF Download AHP-1200CAS-CCP22-Rate-Change-60-to-30-covered PDF Download AHP-1200CAS-CCP22-Rate-Change-35-to-20-covered PDF Download ahp-1200cas JPG Download AHP-1200CAS-HT-Extremes-Cool-and-Heat-Rates-Plexiglas-Cover PDF Download Click to open files:
- Click to download:
Solid Model files:
Product Manuals, Software:
Part Number Description Drawing/Picture Data Sheet ACP-1200 Accessory Plate
Material: Clear anodized aluminum
Size: 13.3" X 5.77" Surface
GP-1200 Pyrex Plate
Material: Clear Borosilicate
Size: 13.30" X 5.77" X 0.125"
C-1200 Clear Cover
Material: Clear Acrylic
Size: 15" X 8" X 5"CN-1200 Clear Cover
Material: Clear Acrylic
Size: 15" X 8" X 5"CH-1200 Clear Cover With Hinge
Material: Clear Acrylic
Size: 16" X 9.3" X 5"CHN-1200 Clear Cover With Hinge
Material: Clear Acrylic
Size: 16" X 9.3" X 5"BH-1200 Barrier
Material: Clear Acrylic
Size: 14.2" X 6.7" X H (height)
Part Number: BH-1200 (H = height in inches 3", 6", 9" standard)
example B6-1200, B9-1200AD-1200 Air Deflector
Material: Stainless Steel, Painted
Size: 4" X 2"CWB-01 Cold Well
Material: Clear Anodized Aluminum
Includes: PVC insulation, cover and clamps
Size: 15.85" X 8.96" X 7.71"
Accomodates 4 X 1000 mL Boston Round bottles
for other configurations consult TECARTD-Ring Three wire RTD, 100 ? with connector
6' long, surface mount
RTD-Probe Three wire RTD, 100 ? with connector
6' long, 1/8" DIA probe
Features:
• Precision machined anodized aluminum cold plate surface
• Stainless Steel threaded inserts
• Easy clean stainless steel apron
• Cools down to -50 °C
• Heats up to 150 °C
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs less than 30 lbs. (13.6 kg)
• Operating ambient range 0 °C to 50 °C
• Compact bench top unit, 11.2” X 15.1” footprint
• Hinged clear acrylic cover
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Provides power and control to cascades
• Conforms to UL 61010-1 & 61010-2-010
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
